Fanless embedded computer powered by the 8th / 9th generation Core i CPU with 4GB DDR4 SO-DIMM memory, VGA + DVI dual display outputs, 2 x GbE, 4 x USB 3.1, MIL-STD-810G vibration and shock, and -25°C to 60°C wide range working temperature. Option for AC power adapter, DIN rail mounting kit, and Windows 10 OS.
Loading...
FES9330

FES9330

Fanless Embedded Computer with 1 x Hot-Swappable HDD Tray - FES7531

FES7531

FES7501

  • Compact fanless embedded computer
  • Intel 8th/9th Gen. Core i processors
  • VGA + DVI dual display outputs
  • 2 x GbE and 4 x USB 3.1 Gen1
  • 2 x RS-232/422/485 and 2 x RS-232 ports
  • MIL-STD-810G vibration and shock compliance
  • -25°C to 60°C wide range working temperature
  • Wall mount, option for DIN rail mounting kit
  • 12V DC power input, option for external AC power adapter
Availability: In stock
SKU
FES7501
Email

Compact fanless embedded PC with 8th / 9th gen. Core i CPU, dual LAN, 4 x COM ports, MIL-STD-810G vibration & shock, and -25°C to 60°C wide range working temperature.

Construction
Compact rugged enclosure
System
CPU: 8th / 9th Gen. Core i processor
Chipset: Intel H310 platform controller hub
Memory: 4GB DDR4 SODIMM memory, max. 32GB
Graphics: Integrated Intel UHD Graphics 630
Video Port
1 x VGA, supporting 1920 x 1200 resolution
1 x DVI-D, supporting 1920 x 1200 resolution
Expansion Slot
1 x full-size mini PCI Express socket
Storage
1 x internal SATA port for 2.5” HDD/SDD
1 x M.2 2280 SATA interface
Panel I/O
2 x GbE by i219 and i210
4 x USB 3.1 Gen 1
2 x RS-232/422/485 (COM1 / COM2)
2 x RS-232 (COM 3 / COM4)
1 x 3.5mm jack for mic-in & speaker-out
Power Supply
12V DC power input
Option for external 120/220VAC power adapter
Weight
5.91 lb / 2.68 kg

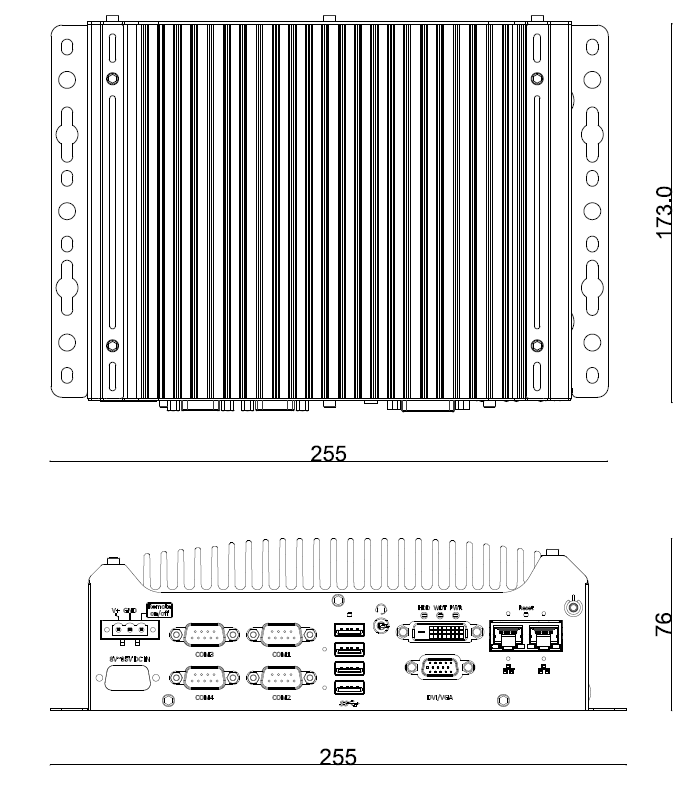

Dimension
10.04"(W) x 6.81"(D) x 2.99"(H)
Mounting
Wall mount (std) or DIN-rail mount (opt)
Environmental
Operating Temperature: -25°C to 60°C
Storage Temperature: -40°C to 85°C
Humidity: 10% to 90%, non-condensing
Vibration: Operating, MIL-STD-810G, Method 514.6, Category 4
Shock: Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
EMC: CE/FCC Class A, according to EN55032 & EN55024

FES7501:
 Fanless embedded PC, 8th / 9th gen. Core i CPU, 4GB DDR4 SO-DIMM memory, 2 x GbE, 4 x COM ports, 4 x USB 3.1, VGA + DVI dual display output, wall mount, 12V DC power input. Option for AC power adapter, DIN rail mounting kit, and Windows 10 OS.
Lead Time: 3 weeks

Document
Description
Download Link
file iconFES7501-SP(V1-2).pdf
Spec Sheet
file iconFES7501-UM(V1-2-2).pdf
User Manual
file iconFES7501 Mounting Guide.pdf
Mounting Guide
  • FES7501
    Fanless embedded computer
    8th / 9th generation Core i CPU
    4GB DDR4 memory, max. 32GB
    128GB SSD, wide temperature
    1 x VGA + 1 x DVI-D video port
    2 x GbE, 4 x COM, 4 x USB 3.1
    Wall mount, option for DIN-rail mounting kit
    12V DC power input, option for AC power adapter
    Option for Windows 10 OS
    Starting at:
FES7501

PRODUCT DESCRIPTION
The fanless embedded computer features Intel 8th/9th generation Core i processor and a compact rugged enclosure. The system is powered by the Core i CPU with H310 platform controller hub chipset and UHD Graphics 630. FES7501 comes standard with a 4GB memory and provides options for memory up to 32GB. The storage for the system supports 1 x internal SATA port for a 2.5" HDD/SDD and 1 x M.2 2280 SATA interface, which offers users greater storage capabilities. It also provides VGA + DVI dual display outputs supporting 1920 x 1200 resolution and a rich I/O interface; 2 x GbE LAN, 4 x USB 3.1, and 4 x COM, for industrial applications. All the I/O ports are located at the front of the panel, making it easy to connect external peripherals. With its sleek and compact enclosure, FES7501 measures at just 10.04"(W) x 6.81"(D) x 2.99"(H) and weighs 5.91 lbs. It comes with a wide range operating temperature of -25°C to 60°C and MIL-STD-810G vibration and shock. FES7501 is a cost-effective fanless embedded computer providing excellent computing performance and a rich I/O interface that is designed to meet the demands of industrial applications.
