Rackmount monitor drawer with a 19 inch 1440 x 900 widescreen industrial LCD panel, VGA + HDMI-No speaker video input, and a 1U high 18.1 inch depth rackmount drawer. Option for HDMI / BNC / Audio / 3G-SDI input, Resistive type touch screen, and DC power input.

Skip to the beginning of the images gallery

RP1195

RP1205

RPW1190

1U high rackmount monitor
18.1 inch short-depth monitor drawer
19 inch 1440 x 900 widescreen LCD monitor
VGA + HDMI-no speaker video input
Option for HDMI / BNC / Audio / 3G-SDI input
Option for Resistive type touch screen
External 100/240 auto-sensing AC power input
Option for 12V / 24V / 48V / 125V DC power input

$964.00

Availability: In stock

SKU

RPW1190

19" 1440 x 900 widescreen rackmount LCD monitor drawer with VGA + HDMI video input and 100/240VAC power input in a 1U high 18.1" depth rackmount drawer.

Specification

Material: Heavy-duty steel

LCD Panel: Size: 19 inch
Resolution: 1440 x 900
Brightness (cd/m²): 250
Contrast Ratio (typ.): 1000:1
Viewing Angle (H/V): 170° x 160°
Display Area (mm): 408.24H x 255.15V
Colors: 16.7 M
Backlight: LED
MTBF (hrs): 30,000

Video input: VGA + HDMI - no speaker video input (std)
Option HDMI / BNC / Audio / 3G-SDI input

Front Panel Controls: Power on/off switch
OSD (on screen control)

On Screen Control: Auto-adjustment for contrast, balance, H-position, V-position, phase, brightness

Drawer: 2-position lock for system security
18.1 inch short-depth rackmount drawer
Mounting Distance: 18.5 ~ 27.6 inch (470 ~ 700 mm)

Power supply: Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption: Max. 20W, Standy 2W
Option for 12V / 24V / 48V / 125V DC power input

Color: Black (RAL 9005)

Weight: 28.5 lb / 13 kg

Dimension: 17.4"(W) x 18.1"(D) x 1.73"(H)
*Casing depth will increase if video input or DC power option is selected

Environmental: Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration

Safety: CE, FCC

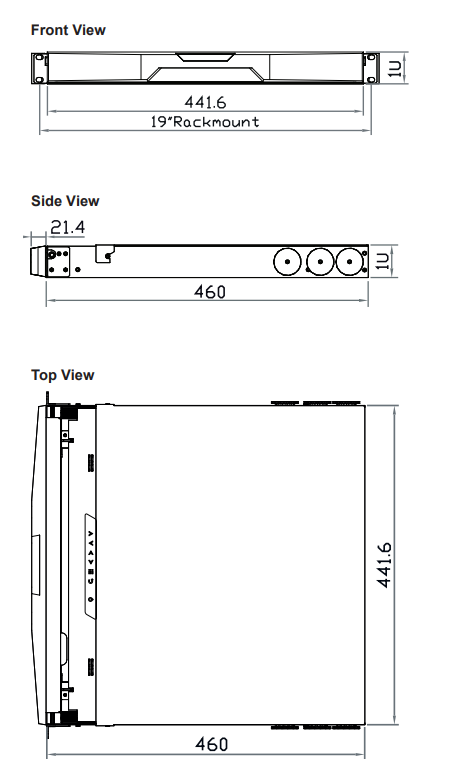

Dimensions

Order Info

RPW1190:
19 inch 1440 x 900 widescreen LCD monitor, VGA + HDMI-no speaker video input, 100/240VAC power input, 1U high 18.1 inch depth rackmount drawer, Black color. Option for HDMI / BNC / Audio / 3G-SDI input, Resistive type touch screen, and DC power input.

Downloads

Document

Description

Download Link

RPW1190-SP(V1-2).pdf

Spec Sheet

RPW1190-UM(V1-2).pdf

User Manual

Configure Now

PRODUCT DESCRIPTION
The 19 inch 1440 x 900 widescreen LED backlight industrial monitor is an active type digital to digital, which connects to the onboard conversion board. The flicker-free LCD monitor comes with a standard VGA and HDMI connector on the back of the rackmount drawer for your rackmount server connection. There is also an OSD function that lets you adjust the rackmount monitor for contrast, balance, H-position, V-position, phase, brightness. All the OSD buttons are located on the front of the monitor for easy access. The monitor can be tilted to a 90-degree horizontal angle. The auto-shutoff function enables whenever the monitor drawer is back to its resting position, allowing it to extend the LCD monitor's life. Option for S-video / HDMI / BNC / Audio input. The low profile 1U high rackmount drawer saves rack cabinet space. The ball-bearing slide rail is mounted on each side of the drawer, allowing you to pull out the drawer from the 19" rack cabinet. The Key-locker or thumb locker is installed on the front panel to lock the drawer inside the rack when the monitor is not in use. The industrial monitor comes with a standard 6 foot VGA / DVI cable. Option for 10 feet, 15 feet, and 25 feet cable is available. RPW1190 also comes with a 110/220VAC auto-switching power input. Option for a 12V / 24V / 48V / 125V DC power adapter. The monitor drawer is ready to mount into a standard 19" rack cabinet and the rear mounting bracket can be extended up to 600mm depth rack cabinet.
