NOTICE: PRODUCT CURRENTLY UNAVAILABLE. PLEASE VISIT SPLIT QUAD DISPLAY RACK LCD MONITORS FOR RELATED PRODUCTS.

Rackmount CCTV monitor drawer with a 19 inch 1280 x 1024 industrial LED backlight LCD monitor, VGA + QD (Quad Display) video input, and a 1U high 25.6 inch depth rackmount drawer designed for surveillance and security systems. Option for 12V / 24V / 48V / 125V / 250V DC power supply.

Loading...
Industrial Surveillance Monitor RMWQ9220 Front View

RMWQ9220

1U 19

RPWQ1190

RPQ1190

  • 1U high 25.6" depth rackmount CCTV monitor drawer
  • 19 inch 1280 x 1024 industrial LCD monitor
  • VGA + QD (Quad Display) video input
  • Quad display (NTSC / PAL) w/ 4 x BNC in/out channel
  • Front membrane buttons for Quad & OSD function
  • 1 x D-sub 9 pin RS-232 remote port
  • 1 x VCR-in/out & 1 x alarm I/O
  • External 100/240 auto-sensing AC power adapter
  • Option for 12V / 24V / 48V / 125V / 250V DC power supply
Availability: In stock
SKU
RPQ1190
Email
19 inch 1280 x 1024 industrial monitor with VGA + S-Video video input, Quad display, 1 x RCA in/out channel, and a 1U high 25.6" depth rackmount drawer.
Material
Heavy-duty steel
1U high rackmount monitor drawer
LCD panel
Size: 19 inch
Resolution: 1280 x 1024
Brightness (cd/m²): 250
Contrast Ratio (typ): 1000:1
Viewing Angle (H/V): 170° x 160°
Display Area (mm): 376.32H x 270.33V
Response Time (ms): 5
Color: 16.7 M
MTBF (hrs): 30,000
LCD Resolution Mode
720 x 400 (70Hz), 640 x 480 (60/72/75Hz )
800 x 600 (60/72/75Hz)
1024 x 768 (60/70/75Hz), 1152 x 864 (75Hz)
1280 x 768 (60/75Hz), 1280 x 960(60Hz), 1280 x 1024 (60/75Hz)
Video Input
VGA Single Input: Analog RGB 0.7 Vp-p
Quad display
Image system: PAL/NTSC
Resolution: 1024 x 525 (NTSC)/1024 x 625 (PAL)
Refresh Rate: 60Hz (NTSC) / 50Hz (PAL)
Colors: 16.7M
Video Input:
Camera: 1.0Vpp, 75 Ohm x 4, VCR: 1.0Vpp, 75 Ohm x 1
Video Output:
Live monitor: 1.0Vpp, 75 Ohm x 1, Loop: 1.0Vpp, 75 Ohm x 4, VCR: 1.0Vpp, 75 Ohm x 1
Support: Auto gain control/Time/Date/On screen display
Camera Title: 8 character title
Display Format: 2 x zoom on playback, Quad, Full, Sequence
Dwell Time: 0 to 99 sec adjustable
Build in buzzer and key-lock
Front panel control
Membrane buttons for LCD OSD (On Screen Display) & Quad display
OSD Menu Control
Auto-Adjustment, contrast, brightness, clock, phase, H-position, V-position
Misc: Language, OSD position, graphic mode, ratio, reset & timer
Connectors
1 x VGA, 1 x S-Video
4 x BNC video-input , 4 x BNC video-out
1 x VCR-in, 1 x VCR-out
1 x D-sub 9 pin alarm I/O
1 x D-sub 9 pin RS-232 remote port
Power Supply
Auto-sensing 100 to 240VAC, 50/60Hz power adapter
Consumption: Max. 22 Watt, Saving Mode 2 Watt
Option for 12V / 24V / 48V / 125V / 240V DC power supply
Mounting type
1U pull-out slide rail monitor drawer for a 19" rack cabinet
Color
Black
Weight
27.5 lb / 12.5 kg

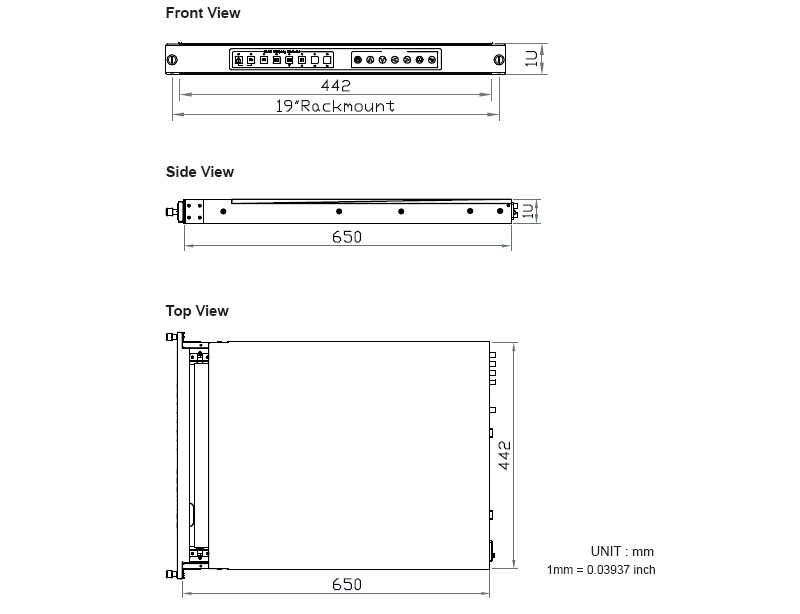

Dimension
17.4"(W) x 25.6"(D) x 1.73"(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Safety
FCC, CE

RPQ1190:
19 inch 1280 x 1024 industrial LCD monitor, VGA video input, quad display with 4 x BNC in/out channel, 100/240VAC power adapter, 1U high 25.6" depth rackmount monitor drawer, Black color. Option for 12V / 24V / 48V / 125V / 250V DC power supply.

Document
Description
Download Link
file iconRPQ1190-SP.pdf
Spec Sheet
file iconRPQ1190-UM.pdf
User Manual
  • RPQ1190
    1U high rackmount CCTV monitor
    19 inch 1280 x 1024 industrial LCD monitor
    VGA + QD (Quad Display) video input
    Quad display (NTSC / PAL) w/ 4 x BNC in/out channel
    1 x alarm I/O & 1 x RS-232 remote port
    External 100/240 auto-sensing AC power adapter
    Option for 12V / 24V / 48V / 125V / 250V DC power supply
    25.6 inch depth rackmount drawer
    Starting at:
RPQ1190

PRODUCT DESCRIPTION
The industrial CCTV monitor is a 19 inch 1280 x 1024 flat LCD panel providing Quad display solution. The LCD panel is a TFT active type digital to digital which connects to the onboard conversion board. The rackmount monitor offers a 19" diagonal LCD with 250nit brightness, 1000:1 contrast ratio, and a 160-degree viewing angle for an unparalleled viewing ability. It will display 16.7 million colors (true color). The Industrial CCTV monitor comes with VGA + S-Video + 4 BNC in/out channel + 1 VCR in/out channel connector on the back of the rackmount monitor for your rackmount security computer and video camera connection. The OSD function lets you adjust the LCD monitor for the contrast, balance, horizontal position, vertical position, phase, and brightness. All the power on/off switch and OSD buttons are located on the front of the rack mount monitor for easy access. The construction of the rugged monitor is of heavy-duty steel. The 1U high monitor drawer features a pull-out type sliding drawer with a 2-position front lock handle. CCTV monitor comes with a metal rugged housing to fit into the standard 19" rack cabinet. The CCTV monitor is designed to meet industrial shock, vibration, and environmental standards. It comes standard with one 6' VGA cable for the CCTV monitor and uses a 100~240VAC 50/60Hz external power supply. Option for 12/24/48VD power input. The rackmount monitor is ready to mount into the standard 19" rackmount cabinet, It occupies a 9U rackmount unit.
