Industrial monitor integrated 17 inch 1280 x 1024 1000-nit high brightness LCD display panel with VGA and DVI video input port into a low profile 1U high 19.7 inch depth rack mount monitor drawer. Option for S-video / HDMI / BNC video input port and DC power input and touch screen monitor.
Loading...
8U 21.5

RMW8215

RP3117 1U 17.3

RP3117

RPH6117

  • 1U high rack mount monitor
  • 19.7 inch depth monitor drawer
  • 17 inch 1280 x 1024 1000-nit high brightness monitor
  • OSD (On Screen Display) function
  • VGA and DVI video input, Option for HDMI / BNC / Audio input
  • Option for touch screen monito
  • 110/220VAC power adapter
  • Option for 12 / 24 / 48VDC power input
$1,620.00
Availability: In stock
SKU
RPH6117
Email
17 inch 1280 x 1024 1000-nit high brightness LED back light industrial monitor with VGA and DVI video input. Option for touch screen monitor, DC power input and HDMI / BNC + S-video. 1U high 19.7 inch depth rack mount monitor drawer.
Material
Heavy-duty steel
LCD Panel
Size: 17 inch
Resolution: 1280 x 1024
Brightness: 1000nit
Contrast Ratio: 1000:1
Viewing Angle: 170° (H) x 160° (V)
Display area (mm):338 x 270
Colors: 16M colors
MTBF: 50,000 hours
Back Light : LED
On screen control
Auto-Adjustment for contrast, balance, H-position, V-position, phase, brightness
Front panel controls
Power on/off switch
OSD (on screen control)
Touch screen monitor (option)
Resistive type or capacitive type touch screen
USB or RS-232 port
Video input module
1 x VGA / DVI video input port
Option HDMI / BNC / Audio video input add-on module, will increase 2.77" depth of drawer
Drawer
2-posistion lock for system security
19.7 inch Short depth rack mount drawer
Extended up to 600mm depth rack cabinet
Power supply adapter
84W auto-switch 110/220VAC power adapter
Option for 12/24/48VDC power input
Color
Black (RAL 9005)
Safety
FCC, CE
Environmental
Operation Temperature: 0° to 50° C (32° to 131° F)
Storage Temperature: -5° to 60° C (23° to 140° F)
Shock: 10G acceleration (11ms duration)
Vibration: 5 ~ 500Hz 1G RMS random vibration
Relative Humidity: 5-90%, non-condensing
Gross Weight
36lb

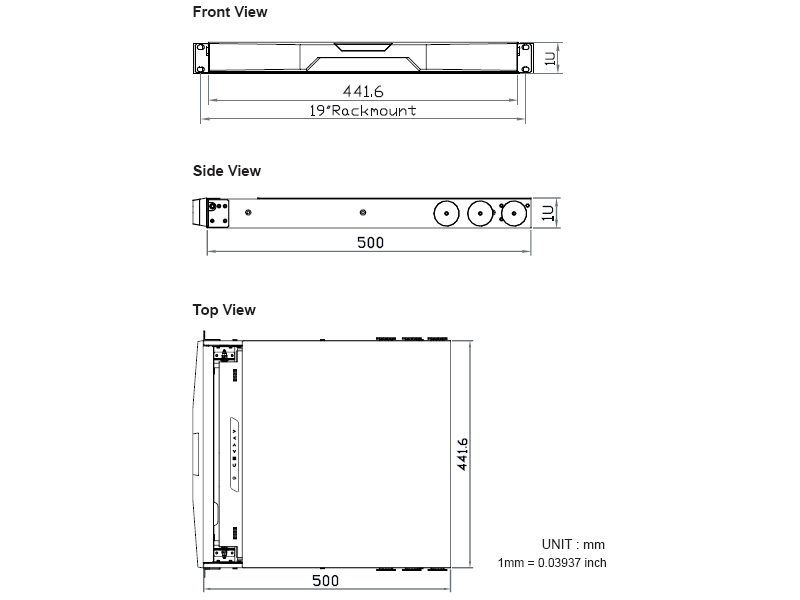

Dimension
19"(W) x 19.7"(D) x 1.75"(H)
19"(W) x 22.47"(D) x 1.75"(H) with optional video input module

RPH 6117:
17 inch 1280 x 1024 1000-nit high brightness LED back light industrial monitor and 1U high rack mount monitor drawer, Black color
Option for HDMI and audio input, touch screen monitor and 12 / 24 / 48VDC power input

Price:$1,620.00



Document
Description
Download Link
file iconRPH6117-SP.pdf
Spec Sheet
  • RPH6117
    17 inch 1280 x 1024 1000-nit monitor drawer
    VGA + DVI-D video input
    110/220VAC power adapter
    Option for touch screen monitor
    Option for HDMI / S-Video / BNC video input
    Option for VDC power input
    1U high & 19.7" depth rack mount drawer
    Starting at:
    $1,620.00
RPH6117
$1,620.00

LCD display
  The 17 inch industrial monitor offered 1280 x 1024 display resolution and 1000-nit high brightness LCD display panel. The flicker free LCD monitor comes with standard VGA and DVI-D connector on the back of the rackmount drawer for your rack mount server connection. The OSD (on screen display function) function lets you adjust the rack mount monitor for the best view, All the OSD membrane buttons are located on the front of the monitor for easy access and adjustment. The monitor can be tilted to a 90 degree horizontal angle for better viewing. The auto-shut off function enables whenever the monitor drawer is back to its resting position that allows to extend the LCD monitor's life. Option for S-video / HDMI / BNC / Audio input.

Rack mount drawer
  The low profile 1U high rackmount drawer saves rack cabinet  space. The ball-bearing slide rail is mounted on the each side of the drawer allows you to pull-out the drawer from the 19 inch cabinet. The Key-locker or thumb locker is installed on the front panel to lock the drawer inside the rack when the monitor is not in use.

Cables
The industrial monitor comes with a standard 6 foot VGA / DVI cable. Option for 10 feet, 15 feet and 25 feet cable are available.

Power supply
monitor drawer provides a 110/220VAC auto-switching power supply. Option for 12 / 24 / 48 DC power input

Mounting
 The monitor drawer is ready to mount into a standard 19 inch cabinet and the rear mounting bracket can be extended up to 600mm depth rack cabinet.

References
What is projected capacitive touch screen?
Projected capacitive touch screen is a multi-touch solution capable to support 10 simultaneous touch points and is extremely durable in most environments.
