PRODUCT EOL NOTICE: RMW8243 HAS REACHED ITS EOL (END OF LIFE). THE REPLACEMENT PRODUCT FOR RMW9240 IS RMW9240 - 9U 24" WUXGA RACKMOUNT LCD MONITOR.

The rack mount monitor comes with a 24-inch 1920 x 1080P full HD industrial LCD panel, VGA video input port, stereo speaker with PC audio input, and 9U high and 25.6-inch wide rack mount monitor. Option for Video/TV, SV+AV, SV+AV+TV & touch screen monitor.
Loading...

RMW8243

  • 9U high Rackmount monitor
  • 24 inch 1920 x 1080 industrial LCD monitor
  • Support Full HD with 1080P display resolution
  • Option for touch screen with USB port
  • VGA video input, option for DVI input
  • Option for Video/TV, SV+AV, SV+AV+TV video input
  • Built-in 2W stereo speaker and PC audio input
  • 90 to 260VAC, 50/ 60Hz power adapter
Availability: In stock
SKU
RMW8243
Email
Rack mount monitor with 24 inch 1920 x 1080P full HD industrial LCD panel, VGA video input and stereo speaker, has 9U high and 25.6" wide rack mount monitor and option for touch screen and Video/TV, SV+AV, SV+AV+TV video input.
Construction
Heavy-duty steel
LCD panel
Size: 24 inch
Max Resolution: 1920 x 1080
Brightness: 250-nits
Contrast Ratio (typ) : 1000:1
Viewing Angle (H/V): 170° x 160°
Active Area (mm): 53.36 x 298.89
Colors: 16.7 M
Backlight: LED
MTBF (hrs): 35,000
Video input
VGA video input (std)
Option for Video/TV, SV + AV, or SV + AV + TV
Touch Screen (Option)
Resistive or Capacitive type touch screen monitor - USB port
Audio
2 x 2W Power
Protection (Option)
Protected glass (AR/AG)
Front panel control
Power on/off switch
OSD membrane switch
Connectors
1 x VGA port (15 pin female D-Sub)
1 x PC Audio (stereo headphone jack)
1 x DC power plug
Power Supply
External auto-sensing 90 to 260VAC, 50/ 60Hz power adapter
Mounting
Wall mount, VESA (100x100mm) mount, and Rackmount ready
Environmental
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -20°C to 60°C (4°F to 140°F)
Relative Humidity: 10~90%, non-condensing
Weight
13.5 lb

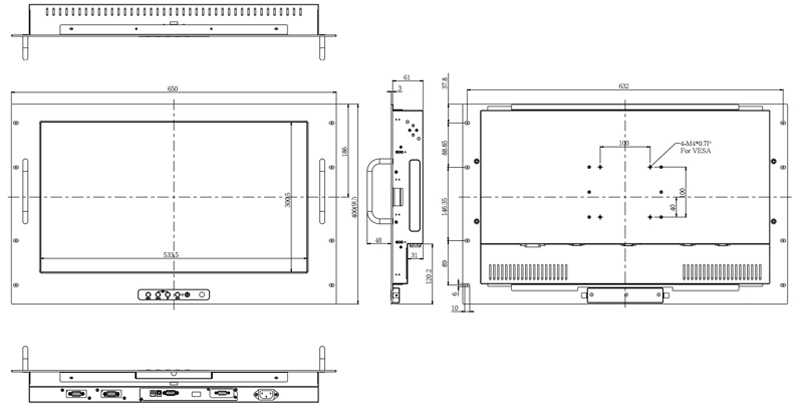

Dimension
25.6"(W) x 4.4"(D) x 15.7"(H)
Casing Color
Black
Regulatory
FCC, CE

RMW8243:
24 inch 1920 x 1080 full HD widescreen industrial monitor, VGA video input, 9U high rackmount monitor, Black color. Option for touch screen monitor and Video/TV, SV+AV, SV+AV+TV video input.

Document
Description
Download Link
file iconRMW8243-DATA.pdf
Data Sheet
  • RMW8243
    Rackmount monitor
    24 inch 1920 x 1080 full HD LCD panel
    VGA video input, option for DVI video input
    Option for Video/TV, SV+AV, SV+AV+TV video input
    Option for touch screen with USB connector
    Built-in 2W stereo speaker and PC audio input
    Ext. auto-sensing 90 to 260VAC, 50/ 60Hz power adapter
    9U high rackmount monitor

    Starting at:
RMW8243

LCD Monitor:
The 24-inch widescreen industrial monitor supported 1080P full HD and LED backlight LCD panel. The rackmount monitor offers a 24-inch diagonal LCD with 250nit brightness and 5 ms response time. Ultra excellent display quality is supported by a maximum contrast ratio of 1000:1 and a resolution of up to 1920x1080 pixels for the monitor. It provides a 170 x 160-degree viewing angle for an unparalleled viewing ability. The widescreen with a display area of 531.36 x 298.89mm & will display 16.7M colors (True color). An optional capacitive or resistive touch screen monitor is available.

Rack housing:
The construction of the rugged monitor is of heavy-duty steel. It features all-steel construction with a rack-mountable aluminum bezel. The rugged monitor comes with a metal ruggedized housing designed to meet harsh environmental standards.

Power Supply:
The 24-inch LCD monitor comes with a 90/260VAC auto-switch external power adapter.

Mounting:
The rackmount monitor is ready to mount into the 25.6-inch rack mount cabinet. It occupies a 9U high rackmount unit.
