The RMW7196 is a rugged 7U high 18.5" rackmount LCD monitor with 1920 x 1080 display resolution, 1000-nits high brightness display, VGA + DVI input, and on-screen display (OSD). Designed for harsh environments and military environments, the 18.5" rackmount display is built with an IP65-rated front bezel, wide operating temperature from -15°C to 55°C, and MIL-STD-810G compliance. The RMW7196 features a modularized design that provides flexible configurations including touch screen technology, ITO glass protection, light sensor, additional video inputs, and D38999 connector.
Loading...
8U 19

RMW7195

RMW7180 8U 17.3

RMW7180

RMW7196

  • 7U 18.5" rugged military rackmount LCD monitor
  • Supports 1920 x 1080 (Full HD) pixel resolution
  • 1000-nits high brightness sunlight readable display
  • VGA + DVI input, option for DP, HDMI, BNC, or Speaker-Audio
  • AR glass, option for ITO or Resistive / Capacitive touch screen
  • Front IP65-rated bezel for protection against dust and water
  • MIL-STD-810G compliance for vibration and shock
  • Extended working temperature from -15°C to 55°C
  • DC power input with external AC power adapter
$1,950.00
Availability: In stock
SKU
RMW7196
Email

18.5" Full HD military-grade LCD monitor with VGA + DVI video input, 1000-nit high brightness, and MIL-STD-810G testing standards in a 7U high rackmount enclosure.

Construction
Anti-corrosion anodized aluminum housing
LCD Panel
Size: 18.5 inch
Max Resolution: 1920 x 1080
Brightness (cd/m²): 1000
Contrast Ratio (typ.) : 1000:1
Viewing Angle (H/V): 178° x 178°
Active Area (mm): 409.8H x 230.4V
Pixel Pitch (mm): 0.3H x 0.3V
Colors: 16.7M
Backlight: LED
LCD Protection /
Touch Screen (Option)
AR protective glass (standard)
Option for ITO glass with no touch
Option for Resistive or Capacitive touch screen with no AR or ITO glass
Light Sensor (Option)
Dimmer light sensor
Optical Bonding (Option)
Optical bonding
Video Input
VGA + DVI video input
Option for DP, HDMI, BNC, or Speaker-Audio input
Front OSD Buttons
OSD Control: 1 x Power, 1 x Enter (Menu), 1 x Space, 1 x Up, 1 x Down for OSD control
Keyboard FN Keys: ESC, F1, F2, 1~5 mapping to keyboard (programmable to other keys)
LED Indicators: 1 x Power On/Off, 1 x Sleep/Stand by
Connector
1 x VGA
1 x DVI
1 x DP (option)
1 x HDMI (option)
1 x BNC (option)
1 x 3-pin D38999 power connector
Power Supply
DC power with external AC power adapter
Power Consumption: 35W (typical)
Option for D38999 9 to 36V DC power input or D38999 AC power input
Option for MIL-STD-461E power EMI filter
Weight
22.05 lb / 10 kg

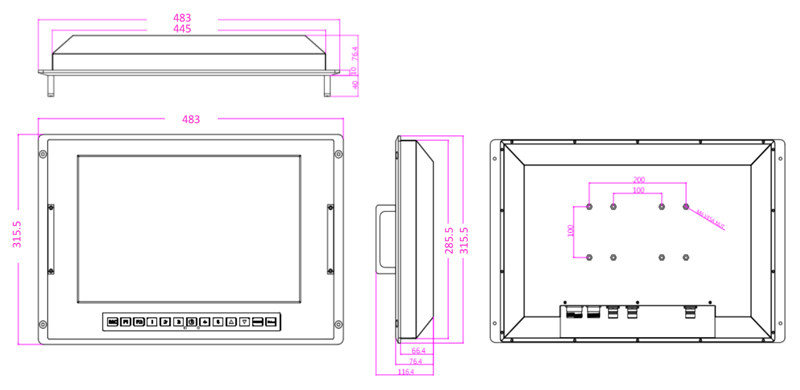

Dimension
18.90”(W) x 12.42”(H) x 4.59”(D)
Environmental
Operating Temperature: -15°C to 55°C
Option for -20°C to 70°C wide operating temperature
Storage Temperature: -30°C to 70°C
Operating Humidity: 10% to 95%, non-condensing
Vibration: MIL-STD-810G Method 514.6C-3 compliant
Shock: MIL-STD-810G Method 516.6 compliant
IP Level: Front IP65 rated bezel
Compliance
FCC, CE, RoHS

RMW7196:
18.5" rugged military rackmount LCD monitor, 1920 x 1080 FHD resolution, 1000-nit high brightness, VGA + DVI input, IP65 rated front bezel, -15°C to 55°C extended working temperature, MIL-STD-810G compliance, DC power with external AC power adapter, 7U high rackmount enclosure.

Lead Time: 12~14 weeks

Document
Description
Download Link
file iconRMW7196-SP(V1-2).pdf
Spec Sheet
file iconRMW7196-UM(V1-2).pdf
User Manual for OSD Functions
file iconRMW71XX-PIN ASSIGNMENT.pdf
PIN Assignment for D38999 Power Input
  • RMW7196
    7U 18.5" rugged military rackmount LCD monitor
    Supports 1920 x 1080 (Full HD) pixel resolution
    1000-nits high brightness sunlight readable display
    VGA + DVI input, option for DP, HDMI, BNC, or Speaker-Audio
    AR glass, option for ITO or Resistive / Capacitive touch screen
    Front IP65-rated bezel for protection against dust and water
    MIL-STD-810G compliance for vibration and shock
    Extended working temperature from -15°C to 55°C
    DC power input with external AC power adapter
    Starting at:
    $1,950.00
RMW7196
$1,950.00

PRODUCT DESCRIPTION
RMW7196 is an 18.5-inch military-grade rackmount monitor with full HD 1080P resolution, resistive type touch screen, and IP65 rated front bezel. RMW7196 is certified in MIL-STD-810G in the vibration and shock. RMW7196 constructed of anti-corrosion anodized aluminum housing is compatible with the military-grade standards. The 18.5 inch LCD panel displays a resolution of 1920 x 1080, 1000-nits brightness, 16.7M colors, and 1000:1 contrast ratio on an  LED backlight. The touch screen is of 5-wire resistive type. The screen has EMI protection of ITO Glass and an option for ITO Glass Bonded. The connectors include VGA D-Sub 15-pin, DVI-I, and DC power input. The power supply is of wide range 9~36V DC input and  100/220VAC external power adapter. The OSD control buttons are located in the front. The operating temperature withstands from -15°C to 55°C and storage temperature from -30°C to 70°C. MIL-STD-810G certified in vibration and shock.
