The RMW7194 is a 19" high brightness rack LCD monitor designed for outdoor applications or environments with high ambient lighting. The LCD panel supports 1440 x 900 resolution, 1000-nits high brightness, 1000:1 contrast ratio, and 16.7 million colors. The monitor features VGA + DVI-D video input, easy access to front OSD functions, and a 7U high rack enclosure designed for standard 19" wide rack cabinets. Options are available for touch screen technology, additional video input modules, and DC power input.
Loading...
RM6821 8U 21.5

RM6821

RMW6173 6U 17.3

RMW6173

RMW7194

  • 7U 19" high brightness rack LCD monitor
  • 1000-nits high brightness display
  • Supports 1440 x 900 native resolution
  • Front OSD (on-screen display) function
  • VGA + DVI-D video input
  • Option for HDMI, BNC, MCS Audio, Speaker, or 3G-SDI input
  • Option for Resistive 1-pt touch screen - USB
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
  • Option for 12V / 24V / 48V / 125V DC power input
$1,432.00
Availability: In stock
SKU
RMW7194
Email
19" 1440 x 900 widescreen 1000-nit high brightness LCD monitor with VGA + DVI-D video input, 100/240VAC power input, and a 7U high rackmount enclosure.
Construction
Heavy-duty steel
LCD panel
Size: 19 inch
Native Resolution: 1440 x 900
Brightness (cd/m²): 1000
Contrast Ratio (typ) : 1000:1
Colors: 16.7 M
Viewing Angle (H/V): 160° x 160°
Response Time (ms): 5
Dot Pitch (mm): 0.2835
Display Area (mm): 408.24H x 255.15V
Surface Treatment: Haze 25%, Hard-coating
Surface Hardness: 3H
Backlight Type: LED
MTBF (hrs): 30,000
Video input
Standard: VGA + DVI-D video input
Option: HDMI, BNC, MCS, Audio, Speaker, or 3G-SDI input
Touch screen (Option)
Resistive 1-pt touch screen - USB port
Front panel control
Power on/off switch
OSD membrane switch
Connector
1 x VGA + 1 DVI-D
Power Supply
Input: Auto-sensing 100 to 240VAC, 50/60Hz
Power Consumption: Max. 34 Watt, Standby 2 Watt
Option for 12V / 24V / 48V / 125V DC power input
Mounting
7U high rackmount for a standard 19" wide rackmount cabinet
Casing Color
Black front panel (RAL9005)
Weight
12.8 lb / 5.8 kg

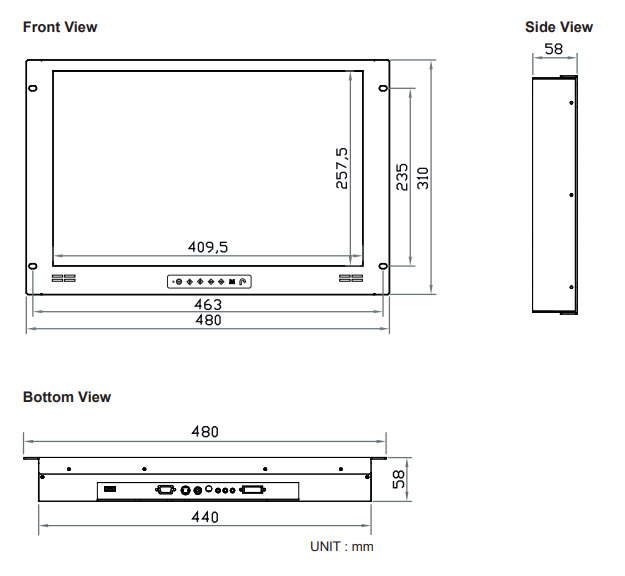

Dimension
Product: 18.9"(W) x 2.3"(D) x 12.2"(H)
Packing: 20.8"(W) x 4.9"(D) x 17.8"(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11 ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA

RMW7194:
19 inch 1440 x 900 widescreen 1000-nit high brightness rackmount LCD monitor, VGA + DVI-D video input, 100/240VAC power input, 7U high rackmount enclosure, Black color.

Document
Description
Download Link
file iconRMW7194-SP(V1-2).pdf
Spec Sheet
file iconRMW7194-UM(V1-2).pdf
User Manual
  • RMW7194
    7U 19" high brightness rack LCD monitor
    1000-nits high brightness display
    Supports 1440 x 900 native resolution
    Front OSD (on-screen display) function
    VGA + DVI-D video input
    Option for HDMI, BNC, MCS, Audio, Speaker, or 3G-SDI input
    Option for Resistive 1-pt touch screen - USB
    Auto-sensing 100 to 240VAC, 50 / 60Hz power input
    Option for 12V / 24V / 48V / 125V DC power input
    Starting at:
    $1,432.00
RMW7194
$1,432.00

PRODUCT DESCRIPTION
The 19-inch widescreen 1000 nit high brightness provided a LED backlight LCD panel with low power consumption technology. The monitor comes with a standard 15-pin VGA and DVI-D connector on the back of the rackmount monitor for your pc system connection. The rackmount LCD monitor offers a 19-inch diagonal LCD with 1000nit high brightness. The ultra-excellent display quality is supported by a maximum contrast ratio of 1000:1 and a resolution of up to 1440 x 900 pixels for the monitor. It provides a 160-degree viewing angle for unparalleled viewing ability. The aspect ratio is a widescreen 16:10 with a display area of 408.24 x 255.15mm. It will display 16.7M colors (True color). The OSD function lets you adjust the LCD monitor for contrast, balance, horizontal position, vertical position, phase, and brightness. All the OSD buttons are located on the front of the LCD monitor for easy access. Option for 10' and 15' VGA cable is available. Optional Lexan screen protection is available. The construction of the rugged monitor is of heavy-duty steel. It features all-steel construction with a rack-mountable aluminum bezel. The monitor comes with a metal ruggedized housing to fit into the standard 19" rack cabinet. The industrial monitor is designed to meet military shock, vibration, and environmental standards. It comes standard with one 6' VGA cable for the LCD monitor. The industrial monitor comes with an external 110/240VAC power input and is ready to mount into a standard 19-inch cabinet.
