The RMW7176 is a 17.3" rugged military rackmount LCD monitor supporting 4K (3840 x 2160) resolution and 16.7 million colors, providing superior video performance and high image quality for your applications. This rugged LCD monitor supports VGA + DVI + HDMI input, AR protective glass, and DC power with an external AC power adapter. The RMW7176 is built to withstand harsh environments and is MIL-STD compliant for vibration and shock to ensure its best performance in rugged fields including marine, military, industrial, medical, and oil and gas.
RP4117 1U 17.3

RP4117

FES7471

FES7471

RMW7176

  • 8U 17.3" rugged military rackmount LCD monitor
  • Supports 3840 x 2160 (4K) pixel resolution
  • High picture quality with 16.7 million colors
  • VGA + DVI + HDMI input, option for DP or BNC input
  • AR glass, option for ITO or Resistive / Capacitive touch screen
  • Option for dimming light sensor and optical bond
  • MIL-STD-810F compliance for vibration and shock
  • DC power with external AC power adapter
$2,125.00
Availability: In stock
SKU
RMW7176
17.3 inch 4K military-grade LCD monitor with VGA + DVI + HDMI video input in an 8U high rackmount enclosure with MIL-STD-810F compliance for vibration & shock.
Material
Heavy-duty steel
LCD Panel
Size: 17.3”
Resolution: 3840 x 2160
Brightness (cd/m²): 400
Contrast Ratio (typ.) : 1000:1
Viewing Angle (H/V): 178° x 178°
Active Area (mm): 381.12H x 214.94V
Pixel Pitch (mm): 0.0995H x 0.0995V
Colors: 16.7M
Backlight: LED
LCD Protection /
Touch Screen (Option)
AR protective glass (standard)
Option for ITO glass with no touch
Option for Resistive type touch screen with no AR or ITO glass
Option for Capacitive type touch screen with no AR or ITO glass
Video Input
VGA + DVI + HDMI input
Option for DP, HDMI w/speaker, BNC, or Speaker-Audio input
Front OSD Buttons
OSD Control: 1 x Power, 1 x Enter (Menu), 1 x Space, 1 x Up, 1 x Down for OSD control
Keyboard FN Keys: ESC, F1, F2, 1~5 mapping to keyboard (programmable to other keys)
Light Sensor (Option)
Dimming light sensor
Optical Bonding (Option)
Optical bonding
Connectors
1 x VGA + 1 X DVI + 1 x HDMI
1 x DP (option)
1 x BNC (option)
1 x D38999 power connector w/ AC power adapter
Handles
Front handles on right and left side
Plug & Play
VESA DDC 1/2B
Power Supply
DC power with external AC power adapter
Power Consumption: 60W (typical)
Option for D38999 9 to 36V DC power input or D38999 AC power input
Option for MIL-STD-461E power EMI filter
Gross Weight
19.84 lb / 9 kg

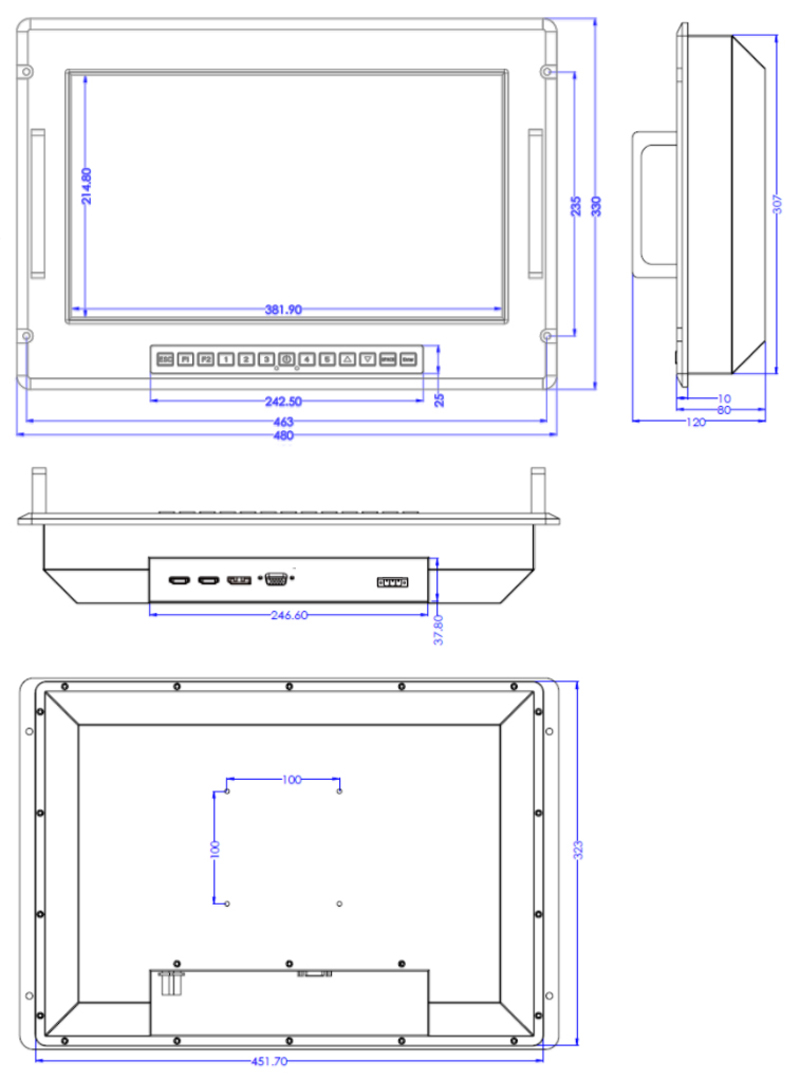

Dimension
18.90”(W) x 3.94”(D) x 12.99”(H)
Environmental
Operating Temperature: 0°C to 50°C
Storage Temperature: -30°C to 70°C
Humidity: 10% to 95%, non-condensing
Vibration: MIL-STD-810F Method 514.5 Procedure I compliant
Shock: MIL-STD-810F Method 516.6 Procedure I compliant

RMW7176:
17.3" rugged military rackmount LCD monitor, 3840 x 2160 (4K UHD) resolution, VGA + DVI + HDMI video input, AR protective glass, MIL-STD-810F compliance for vibration and shock, DC power w/ ext AC power adapter, 8U high rackmount monitor, Black color.

Lead Time: 12~14 weeks

Document
Description
Download Link
file iconRMW7176-SP.pdf
Spec Sheet
file iconRMW71XX-PIN ASSIGNMENT.pdf
PIN Assignment for D38999 Power Input
