The RMC8414A is a 4U rackmount computer designed for industrial automation, business applications, and data centers. The rackmount computer supports a standard ATX motherboard with the latest Intel processors. It features 3 x 5.25" external and 1 x 3.5 external drive bays in a 4U high 20.1” depth chassis. The chassis comes with a front door with thumbscrew lock for access to the front cooling fan and a steel glass door with key lock for easy access to the drives. The RMC8414A is fully customizable and offers options for additional storage space, removable drive bay options, add-on cards, graphic cards, and Windows operating systems.
4U 11.9

RMC8406A

RMC8414A

  • 4U high rackmount computer
  • 20.1" depth rackmount chassis
  • 14th/13th/10th Generation Intel processors
  • Standard ATX motherboard
  • 6 x expansion slots
  • 8GB RAM (Up to 64GB) & 250GB NVMe M.2 SSD
  • 3 x 5.25” external & 1 x 3.5” external drive bay
  • Two front doors with keylock and thumbscrew
  • 400W ATX power supply, option for 500W or 650W ATX P/S
In stock
SKU
RMC8414A
4U rackmount computer with a standard ATX M/B, latest Intel processors, and 3 x 5.25" & 1 x 3.5" external drive bay in a 4U high 20.1" depth rack chassis.
Construction
Heavy duty cold rolled electroplated steel
Standard ATX Motherboard
Size: 12” x 9.6” ATX motherboard

Processor:
RMC8414A-B: Intel 13th Generation Processors
RMC8414A-C: Intel 10th Generation Processor / Long-Life Cycle M/B (Through Q2 2030)
Memory: 4 x DIMM memory sockets (up to 64GB)
On-board LAN, Audio, Video
SATA Controller
USB ports
Drive Bays
3 x 5.25” external drive bays
1 x 3.5” external drive bay
Expansion Slot
6 x expansion slots
Front Panel Control
Power ON/OFF button
System Reset button
2 x USB ports
LED Indicator
LED indicators for Power ON/OFF & HDD Activity
Security
Two steel doors with keylock and thumbscrew
Air Filter
Removable and washable air filter inside front panel
Cooling Fan
1 x 120mm (108CFM) ball bearing fan
Power Supply
400W ATX power supply
Option for 500W or 650W ATX power supply
Color
Black
Weight
40 lb / 18.14 kg

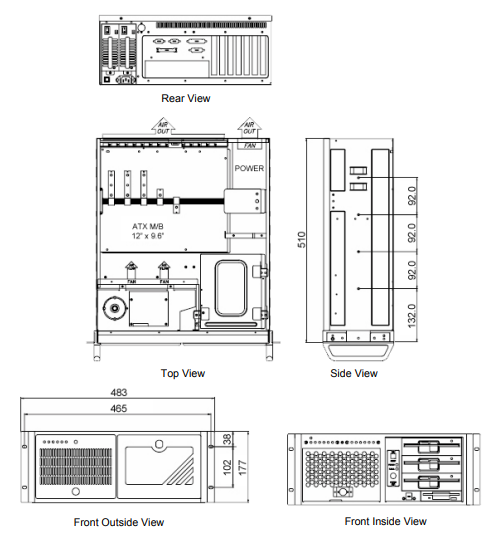

Dimension
19.0"(W) x 7.0"(H) x 20.1"(D)
Environmental
OperatingTemperature: 0°C to 55°C
Humidity: 5~95%, non-condensing



RMC8414A-B:
4U rackmount computer, Intel 13th Generation processors, standard ATX motherboard, 8GB memory, 6 x expansion slots, 400W ATX power supply, 4U high 20.1” depth rack chassis, Black color.

RMC8414A-C:
4U rackmount computer, Intel 10th Generation processors, long-life cycle ATX motherboard, 8GB memory, 6 x expansion slots, 400W ATX power supply, 4U high 20.1” depth rack chassis, Black color.

Document
Description
Download Link
file iconRMC8414A-SP.pdf
Spec Sheet
