PRODUCT EOL NOTIFICATION: PLEASE VISIT 4U RACKMOUNT COMPUTERS FOR RELATED PRODUCTS.

Industrial PC powered by Intel 4th generation Haswell CPU and standard ATX mother board with up to 7 x PCI or PCI express expansion slots, has 4 x hard drive bay and single PS/2 power supply in a 4U high and 17.7 inch short depth rack mount chassis.
Loading...
RMC2800

RMC2800

RMS2812

RMS2812

RMC7460

  • 4U high rackmount computer
  • 17.7-inch short-depth chassis
  • Heavy-duty cold-rolled steel housing
  • Multiple Core processor
  • Standard ATX motherboard
  • 7 x PCI / PCI express expansion slots
  • 1 x 3.5 inch and 3 x 5.25 inch open drive bay
  • 2 x front USB ports
  • PS/2 ATX power supply
Availability: In stock
SKU
RMC7460
Email
Rack mount computer powered by Haswell CPU and ATX M/B, has 1 x DVD and 5 x HD bay, metal front door with Lock, 2 x 92mm cooling fans with air filter, 2 x front USB ports and PS/2 power supply in a 4U high and 17.7 inch depth rack chassis
Construction
Heavy-duty steel cold-rolled steel
Standard ATX M/B
Size: 12" x 9.6" standard ATX mother board
Processor:Dual-Core / Quad-Core processor
Memory: 4 x DIMM memory sockets (up to 32GB)
On-board 100/100BT LAN,
On-board Audio, Video
SATA controller
USB ports
Device
3 x 5.25" open drive bay
1 x 3.5" open drive bay
2 x 3.5" hidden drive bay
Expansion Slot
7 x PCI / PCIe expansion slots available
Security
Aluminum door with key lock
Front Panel Controls
Power on/off switch
System reset button
2 x USB ports
Air Filter
Removable and washable
Cooling Fan
2 x 92mm ball bearing fan
Power Supply
Standard PS/2 power supply
Dimension
19"(W) x 17.7 "(H) x 7 "(D)
Weight
35.2lbs
Environmental
Operation:0°C ~ 50°C
Humidity: 5~95%, non-condensing

RMC7460:
Rackmount computer, Multiple Core processors, standard ATX motherboard, SATA HD, DVD optical drive, 4U high 17.7-inch depth chassis.

Document
Description
Download Link
file iconRMC7460-DATA.pdf
Data Sheet

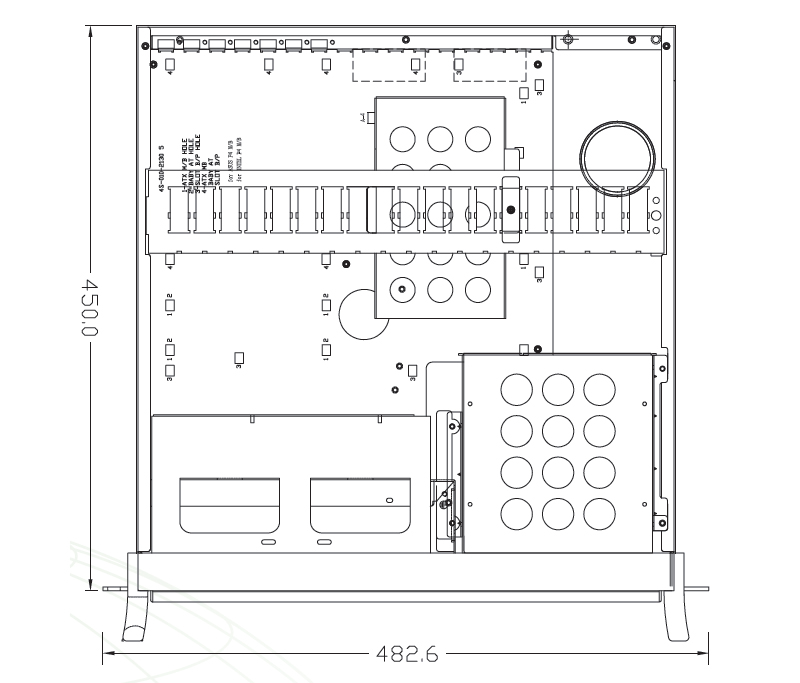

file iconRMC7460-DIM.pdf
Dimension
  • RMC7460
    4U rack mount computer
    Haswell 4th Generation CPU
    ATX mother board
    4GB memory
    500GB hard drive + 1 DVD
    7 x PCI or PCI-Ex expansion slots
    380W power supply
    17.7" depth rack mount chassis
    Starting at:
RMC7460

The chassis
  The 4U high rack mount chassis is made of a heavy-duty cold-rolled steel. It has a front lockable door to protect the drives. Front panel controls included an on/off switch, two front USB ports and LEDs to monitor power and primary hard drive activity. The front bezel also has vents for the two 92mm filteres-intake cooling fans. Filters are removable and washable. The rear has seven slot openings and removable I/O plate. Color: Black.

Storage device
  The rack mount chassis comes with three open 5.25 inch and one open 3.5 inch drive bay and two hidden 3.5 inch drive bay. Standard configuration includes a DVD-RW and a SATA hard drive. Other configurations are available.

System board
  Standard ATX motherboard with seven PCI/PCI-E slots, Video, Audio, and 100/1000BT ethernet. Standard I/O interface port included 2 x USB 2.0, 1 x RJ-45, line-in, speaker-out, and microphone jacks. Standard configuration included Dual-Core processor and a 1GB memory.
Other configurations are available.

Expansion slots
  Standard configurations includes seven PCI/PCI-E. Other configurations are available depend on ATX motherboard expansion slots layout.

Power supply
  Standard PS/2 size ATX power supply.

Mounting
   Front ears come with the standard 19-inch rackmount mounting holes that allow for front mounting to any standard 19 inch rack cabinet.
