2U rack mount computer provided ATX mother board and 3 x PCI/PCIe expansion slots, the chassis offered 3 hard drive bay and rugged metal construction for industrial PC application.
RMC6220A
- 2U high rack mount computer
- 19.6 inch depth chassis.
- Haswell 4th generation processor
- ATX or industrial ATX mother board
- 3 x standard size PCI / PCI-E express expansion slots
- 1 x 5.25 inch and 1 x 3.5 inch open bay
- 2 x 3.5 inch hidden HD bay
- 380W PS2 power supply
In stock
SKU
RMC6220A
Rack mount computer powered by Haswell CPU and ATX M/B with raiser card for 3 x standard size PCI / PCI-E slots, has 1 x DVD and 3 x hard drive bay, 2 x front USB ports, front door with lock and air filter, PS/2 type power supply in a 2U high and 19.6" depth rack chassis.
- Construction
- Heavy-duty cold-rolled steel.
Inside: zinc-plated with bright chromate,
Outside: texture-coated
- ATX Mother Board
- Size: 12" x 9.6" standard / industrial ATX mother board
Processor:
Dual-Core / Quad-Core processor
Memory: 4 x DIMM memoru socket (up to 32GB memory)
On board Video / Audio
On baord Giga-bit Ethernet LAN
SATA controller
USB ports
- Device
- 1 x slim-type DVD (optional)
1 x 5.25” open drive bay
1 x 3.5” open drive bay
2 x 3.5” hidden drive bay (for 3.5” HD)
- Expansion Slot
- 3 x PCI / PCIeexpansion slots
- Front Panel Controls
- Power on/off switch
System reset button
- Front Panel Connector
- 2 x USB ports
- Speaker
- 1 x 0.3W speaker
- Cooling Fan
- 1 x 80mm (45CFM) ball-bearing fans
- Air Filter
- Removable and washable
- Power Supply
- PS/2 type 300W industrial level
Auto-switching power supply for 85V~264V AC input
- Slide rail (Optional)
- 20" slide rail

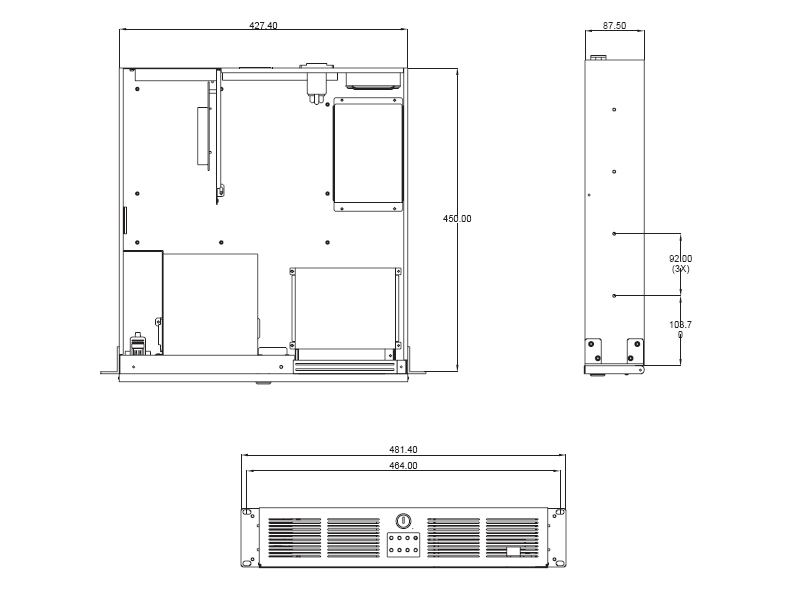

- Dimension
- 19"(W) x 19.6 "(H) x 3.5 "(D)
- Weight
- 40lbs
- Environmental
- Operating temperature: 0°~45°C (32°~ 113°F)
Relative humidity: 5% ~ 90% @ 40° C, non-condensing
- Certifications
- RoHS
RMC 6220A
Rack mount computer, Dual-Core or Quad-Core CPU, ATX mother board, 3 x PCI/PCI-E slots, PS/2 type power supply and 19.6" dpeth rack mount chassis.
Document
Description
Download Link
RMC6220A-SP.pdfSpec Sheet
