The RMC5254 is a 2U high rackmount computer powered by the Intel Core Ultra/AMD Ryzen processors with the standard micro ATX motherboard. The system has 4 x low profile PCIe expansion slots, 16GB RAM (Up to 64GB), 250GB NVMe M.2 SSD, 2 x 3.5" open removable drive bay, 500W auto-switch ATX power supply, and an option for a slim type DVD.

Loading...
2U Rackmount Computer with 7 x PCI/PCIe Expansion Slots - RMC7215

RMC7215

Short Depth 1U Rackmount Computer with Intel Core i7-6700 Processor - RMC81107

RMC81107

RMC5254

  • 2U high rackmount computer
  • 15.1 inch short depth rackmount chassis
  • Intel Core Ultra/AMD Ryzen processors
  • Standard micro ATX motherboard
  • 4 x low profile PCIe expansion slots
  • 16GB RAM (Up to 64GB) & 250GB NVMe M.2 SSD
  • 2 x 3.5" open removable drive bay
  • Option fro slim type DVD
  • 500W auto-switch ATX power supply
In stock
SKU
RMC5254
Email

2U high rackmount computer with Intel Core Ultra/AMD Ryzen processors with standard micro ATX motherboard, 4 x low profile PCIe expansion slots, 16GB RAM (Up to 64GB), 250GB NVMe M.2 SSD, 2 x 3.5" open removable drive bay, 500W auto-switch ATX power supply, and an option for a slim type DVD.

Construction
EIA RS-310C 19" rackmount standard
Standard micro ATX M/B
Size:  standard micro ATX motherboard
RMC5254B: Intel Core Ultra Processors
RMC5254C: AMD Ryzen Processors
Memory: 16GB (up to 64GB)
On-board Video, LAN, Audio
SATA hard drive
USB ports
Drive Capacity
2 x 3.5" open removable drive bay
Expansion Slot
4 x low profile PCIe slots
Front Panel Controls
Power on/off switch
System reset button
2 x USB ports
LED Indicator
LED indicators for Power ON/OFF, LAN, and HDD activity
Power Supply
500W auto-switch ATX power supply
Color
Black
Weight
23 lb / 10.4 kg

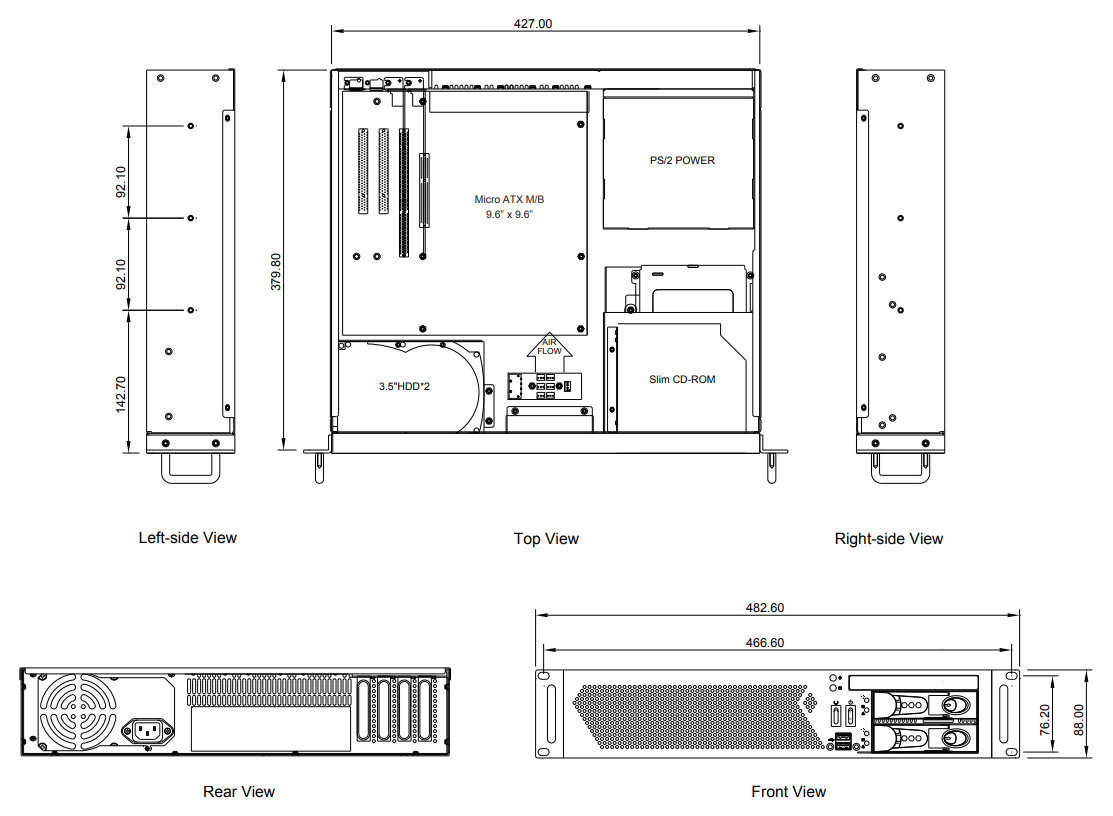

Dimension
19"(W) x 3.5"(H) x 15.1"(D)
Environmental
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Relative Humidity: 5% to 95%, non-condensing



RMC5254-B:

2U rackmount computer, 15.1 inch short depth chassis, Intel Core Ultra processors, standard micro ATX motherboard, 4 x low profile PCIe expansion slots, 16GB RAM (Up to 64GB), 250GB NVMe M.2 SSD, 2 x 3.5" open removable drive bay, option for slim type DVD, 500W auto-switch ATX power supply.



RMC5254-C:

2U rackmount computer, 15.1 inch short depth chassis, AMD Ryzen processors, standard micro ATX motherboard, 4 x low profile PCIe expansion slots, 16GB RAM (Up to 64GB), 250GB NVMe M.2 SSD, 2 x 3.5" open removable drive bay, option for slim type DVD, 500W auto-switch ATX power supply.

Document
Description
Download Link
file iconRMC5254-SP.pdf
Spec Sheet
  • RMC5254-B
    2U high rackmount computer
    Intel Core Ultra processors
    Standard micro ATX motherboard
    4 x low profile PCIe expansion slots
    16GB RAM (Up to 64GB)
    250GB NVMe M.2 SSD
    2 x 3.5" open removable drive bay
    Option for slim type DVD
    500W auto-switch ATX power supply
    15.1 inch short depth chassis
    Starting at:
    $980.00
  • RMC5254-C
    2U high rackmount computer
    AMD Ryzen processors
    Standard micro ATX motherboard
    4 x low profile PCIe expansion slots
    16GB RAM (Up to 64GB)
    250GB NVMe M.2 SSD
    2 x 3.5" open removable drive bay
    Option for slim type DVD
    500W auto-switch ATX power supply
    15.1 inch short depth chassis
    Starting at:
    $1,076.00
RMC5254-B
RMC5254-B
$980.00
RMC5254-C
RMC5254-C
$1,076.00

Loading...Please Wait



PRODUCT DESCRIPTION
RMC5254 is a 2U high rackmount computer designed with a heavy-duty cold-rolled electroplated steel chassis for industrial and commercial applications. The industrial-grade 2U system is powered by the high performing 10th generation Intel processors and standard micro ATX motherboard. RMC5254 provides options for multiple core CPUs for increased performance when multitasking. The front panel has two USB 2.0 interface ports and LED indicators for power, LAN, and hard drive activity. The industrial system supports two 3.5” open removable drive bay.



The standard micro ATX motherboard supports Intel Core Ultra/AMD Ryzen processors, SATA hard drive, onboard video, and Gigabit Ethernet. The power supply features a 500W auto-switch ATX power supply. With durable housing, RMC5254 provides solidity and reliable system protection for worry-free applications. In addition, the 2U rackmount system integrates one 80mm cooling fan to optimize airflow and system cooling and operates in temperatures ranging from 0°C to 50°C (32°F to 122°F). The mounting options for RMC5254 include front ears with standard 19-inch mounting holes for standard 19-inch rack cabinets.
