Rackmount monitor comes with a 15 inch 800-nit LCD panel, IP video decoder, AR glass for panel protection, 18-36V DC power input, and -40 to 55°C wide range working temperature.

Skip to the beginning of the images gallery

PKD8173

RM8019

RM8015

Rugged rackmount monitor
15 inch 1024 x 768 industrial LCD panel
800-nit high brightness sunlight-readable screen
IP video decoder
AR glass for LCD monitor protection
Wide working temperature -40ºC to 55ºC
Wide range 18~36V DC power input

Availability: In stock

SKU

RM8015

15 inch 1024 x 768 800-nit high brightness LCD panel with IP video decoder, AR glass protection, -40º to 55ºC wide range working temperature, and 18~36V DC power input.

Specification

Material: Heavy-duty steel

LCD Panel: Size: 15 inch
Resolution: 1024 x 768
Brightness (cd/m²): 800
Contrast Ratio (typ.): 700:1
Colors: 16.2M, 6 bit + FRC
Viewing Angle: 160°(H) x 140°(V)

LCD Protection: AR glass

Front Panel Controls: Power on/off switch
OSD(on screen display)
Auto-dimming & dimming controls

IP Video Decoder: NVR(DVR) Support: Recorders with H.264 codec
Protocol Support: Suppport H.264, RTSP, ONVIF, PSIA
Interface: RJ45 connector
Resolution Support: 640 x 480, 1024 x 768
Pixel Support: Decode up to 5M pixel IP cameras

Connectors: 1 x RJ45 LAN (for IP decoder)
1 x VGA
1 x AV (BNC Connector) (Option)

Power supply: 18~36V DC power input

Color: Black

Dimension: 19"(W) x 15.72"(H) x 2.96”(D)

Environmental: Operating Temperature: -40° to 55°C (-40° to 131°F)
Intermittent Operating Temperature: 70°C (158°F) for 30 minutes
Storage Temperature: -55°C to 85°C (-67° to 185°F)
Humidity: 10 to 95%, non condensing
Shock: 6G acceleration (11ms duration)
Vibration: 1Grms 10~1,000Hz / X,Y, Z Axes
EMI: Mil-Std-461F, RE101, RE102, CE101, CE102, CS101,CS114, CS115, CS116

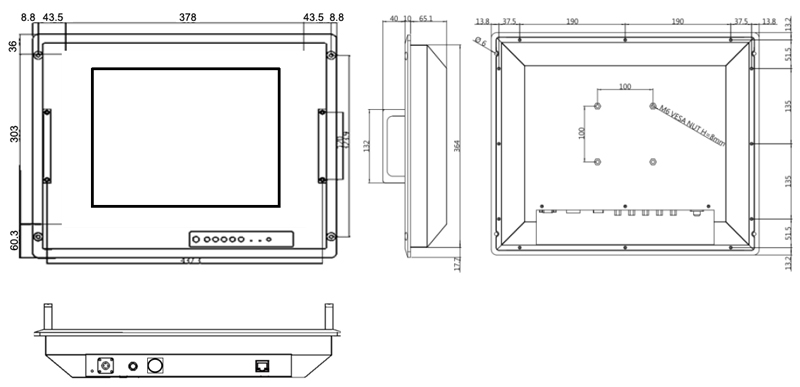

Dimensions

Order Info

RM8015:
15 inch 1024 x 768 industrial LCD panel, military-grade rackmount monitor, 800-nit high brightness sunlight readable screen, IP video decoder, AR protective glass, -40°C to 55°C wide working temperature, Black color.

Downloads

Document

Description

Download Link

RM8015-SP.pdf

Spec Sheet

Configure Now

RM8015

Starting at:

RM8015

PRODUCT DESCRIPTION
The display is a 15 inch LCD panel providing 1024 x 768 resolution. It is an active type digital to digital which connects to the onboard conversion board. The display offers a 15" diagonal LCD with an 800nit high brightness and 700:1 contrast ratio. It will display 16.2 million colors (True color). The industrial monitor comes with a standard 15-pin VGA connector on the back of the rackmount monitor for your pc system connection. The OSD function lets you adjust the monitor for the contrast, balance, horizontal position, vertical position, phase, and brightness. All the power on/off switch and OSD buttons are located on the front of the LCD monitor for easy access. The construction of the rugged monitor is of heavy-duty steel. It features all-steel construction with a rack-mountable aluminum bezel. The monitor comes with a metal ruggedized housing to fit into the standard 19" rack cabinet. The AR glass is mounted in front of the panel to protect against the impact on the industrial monitor panel and dust. The systems are designed to meet military shock, vibration, and environmental standards. The rackmount monitor supports an 18~36V wide range DC power input and is ready to mount into a standard 19" rack cabinet.
