Military-grade display with a 17.3 inch 1920 x 1200 600-nit industrial LCD monitor in a rugged 8U high rackmount enclosure. The monitor supports VGA + DVI video input, AR protective glass, and MIL-STD-810G wide range working temperature of -15°C to 55°C.
9U 20.1

RM6380

8U 19

RMW7195

RMW7175

  • 8U high rackmount monitor
  • 17.3 inch 1920 x 1200 industrial LCD panel
  • 600-nit high brightness LCD panel
  • VGA + DVI video input, option for DP, HDMI, or BNC input
  • Option for Capacitive type touch screen
  • MIL-STD-810G wide range working temperature -15°C to 55°C
  • Option for -20°C to 60°C extended working temperature
  • DC power input with external AC power adapter
$1,595.00
Availability: In stock
SKU
RMW7175

17.3 inch 1920 x 1200 military-grade LCD monitor with VGA + DVI video input and MIL-STD-810G wide range working temperature in an 8U high rackmount enclosure.

Construction
IP65 rated front bezel
IP54 in rear
LCD Panel
Size: 17.3 inch
Max Resolution: 1920 x 1200
Brightness (cd/m²): 600
Contrast Ratio (typ.) : 2000:1
Viewing Angle (H/V): 176° x 176°
Active Area (mm): 365.76H x 228.6V
Pixel Pitch (mm): 0.1905H x 0.1905V
Colors: 16.7M, 8-bit
Backlight: LED
LCD Protection /
Touch Screen (Option)
AR protective glass (standard)
Option for ITO glass with no touch
Option for Capacitive type touch screen with no AR or ITO glass
Video Input
VGA + DVI video input
Option for DP, HDMI, BNC, or Speaker-Audio input
Front OSD Buttons
OSD Control: 1 x Power, 1 x Enter (Menu), 1 x Space, 1 x Up, 1 x Down for OSD control
Keyboard FN Keys: ESC, F1, F2, 1~5 mapping to keyboard (programmable to other keys)
Light Sensor (Option)
Dimmer light sensor
Optical Bonding (Option)
Optical bonding
Connectors
1 x VGA + 1 x DVI
1 x DP (option)
1 x HDMI (option)
1 x BNC (option)
1 x 3-pin D38999 power connector w/ power adapter
Plug & Play
VESA DDC 1/2B
Power Supply
Input: DC power with external AC power adapter
Power Consumption: 32W (typical)
Option for D38999 9 to 36V DC power input or D38999 AC power input
Option for MIL-STD-461E power EMI filter
Gross Weight
22.04 lb / 10 kg

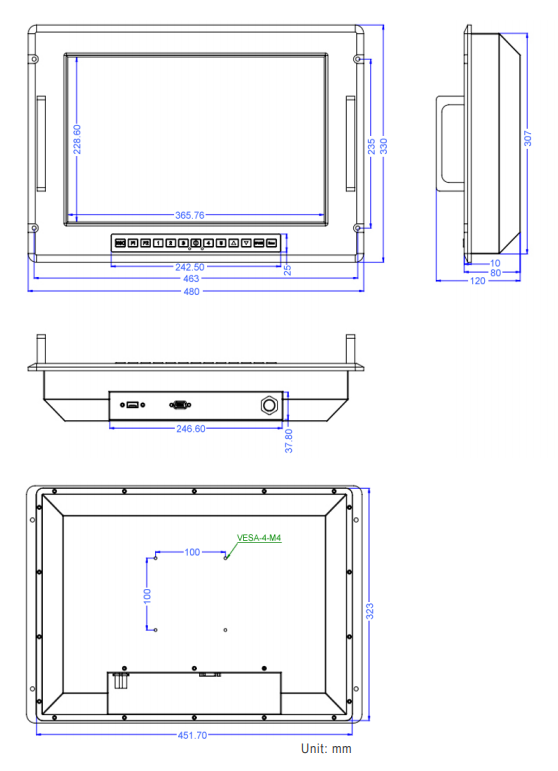

Dimension
18.90"(W) x 12.99"(H) x 4.72"(D)
Environmental
Operating Temperature: -15°C to 55°C
Option for -20°C to 60°C wide range working temperature
Storage Temperature: -30°C to 70°C
Operating Humidity: 5% to 95%, non-condensing
Vibration: MIL-STD-810G Method 514.6C-3
Shock: MIL-STD-810G Method 516.6
Humidity: MIL-STD-810G Method 507.5-7
Low Temperature: MIL-STD-810G Method 502.5 Procedure II, C1 zone
High Temperature: MIL-STD-810G Method 501.5-II Procedure II, Hot Dry (A1)
IP Level
IP65 in front, IP54 in rear

RMW7175:
17.3 inch 1920 x 1200 widescreen LCD monitor, VGA + DVI video input, AR glass, IP65 rated front bezel, MIL-STD-810G wide range working temperature of -15°C to 55°C, DC power with external AC power adapter, 8U high rackmount enclosure.
Lead Time: 12 weeks

Document
Description
Download Link
file iconRMW7175-SP(V1-2).pdf
Spec Sheet
file iconRMW7175-UM(V1-2).pdf
User Manual for OSD Functions
file iconRMW71XX-PIN ASSIGNMENT.pdf
PIN Assignment for D38999 Power Input
