The RMC5285 is a 2U rackmount computer designed with adjustable front and rear panels that provide adjustability, compatibility, and accessibility for your system. This 2U system supports a standard ATX motherboard with 13th Gen Intel Core processors, 4 x 2.5" external hot-swap drive bays, 4 x easy swap fans for superior cooling, a GPU card with 2U riser card, and a redundant PSU 80+ Platinum power supply. The RMC5285 is designed for edge computing appliances and industrial applications.
2U 17

RMC7212A

RMC5285

  • 2U high rackmount computer
  • 17.7" short-depth design for space critical applications
  • 13th Gen Alderlake Intel Core processors
  • Standard ATX motherboard
  • Up to 5 x PCIe expansion slots
  • Supports up to 4 x 2.5" external hot-swap drive bays
  • Supports GPU card with 2U riser card
  • 4 x easy swap fans for superior cooling abilities
  • 800W 1+1 redundant PSU 80+ Platinum
In stock
SKU
RMC5285
2U rackmount PC with standard ATX M/B, 13th Intel Core i CPU, 4 x 2.5" external hot-swap drive bays, up to 5 x PCIe slots, and a 2U high 17.7" short-depth rack chassis.
Construction
Heavy-duty preplated SPGC cold-rolled steel
EIA-RS310D industry standard
System Board
Size: Standard ATX motherboard
RMC5285-A: Motherboard I/O at rear
RMC5285-B: Low-profile card at rear
Processor: 13th Gen Intel Core processors
Memory: 4 x DIMM memory socket (up to 32GB memory)
On-board Video, LAN, Audio
SATA connector
USB ports
Drive Bays
4 x 2.5" external hot-swap drive bays
Backplanes
2 pcs dual port SATA BP to support 4 x SATA
Expansion Slot
RMC5285-A: 1 x PCIe x16 Gen3 single slot + 1 x PCIe x8 Gen4 single slot
RMC5285-B: 1 x PCIe 5.0 x16 + 1 x PCIe 3.0 x4 + 2 x PCIe 3.0 x1 + 1 x PCIe 3.0 x16
Expansion Slot Size
RMC5285-A: Height: 111.76 mm (4.4 inches) / Depth: 254 mm (10 inches)
RMC5285-B: Standard low profile size
Front Panel Controls
System power on/off switch
System reset button
2 x USB ports
LED Indicators
Power status
LAN activity
Drive activity
Cooling Fan
4 x 60x38mm easy swap fans
Power Supply
800W 1+1 redundant PSU 80+ Platinum
Mounting
Option for 20" slide rail
Color
Black
Gross Weight
28.5 lb / 13 kg (w/ PSU; w/o Rail)

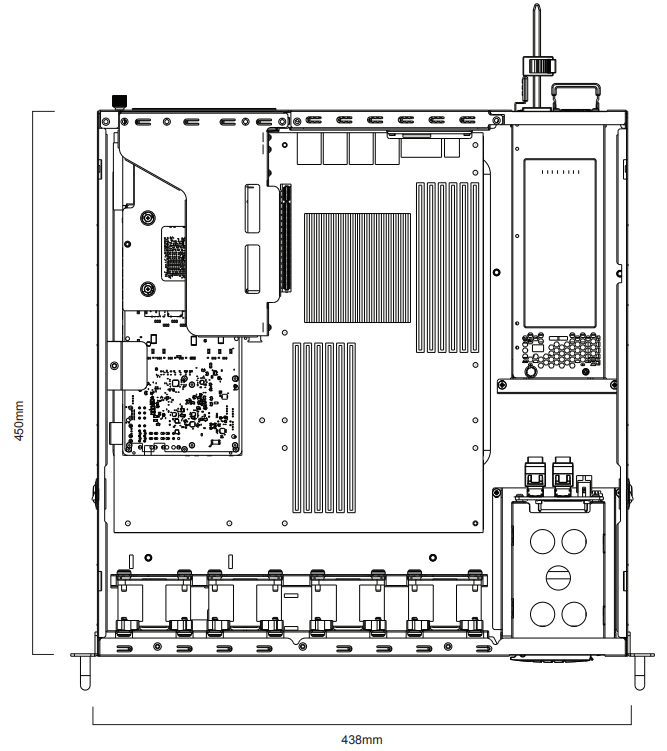

Dimension
17.2"(W) x 17.7"(D) x 3.5"(H)
Environmental
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Humidity: 5%~95%, non-condensing

RMC5285-A:
2U rackmount computer, 13th Gen Intel Core i CPU, standard ATX M/B, 1 x PCIe x16 Gen3 single slot + 1 x PCIe x8 Gen4 single slot, 800W 1+1 redundant PSU 80+ Platinum, 17.7" short-depth rack chassis.

RMC5285-B:
2U rackmount computer, 13th Gen Intel Core i CPU, standard ATX M/B, 1 x PCIe 5.0 x16 + 1 x PCIe 3.0 x4 + 2 x PCIe 3.0 x1 + 1 x PCIe 3.0 x16, 800W 1+1 redundant PSU 80+ Platinum, 17.7" short-depth rack chassis.
