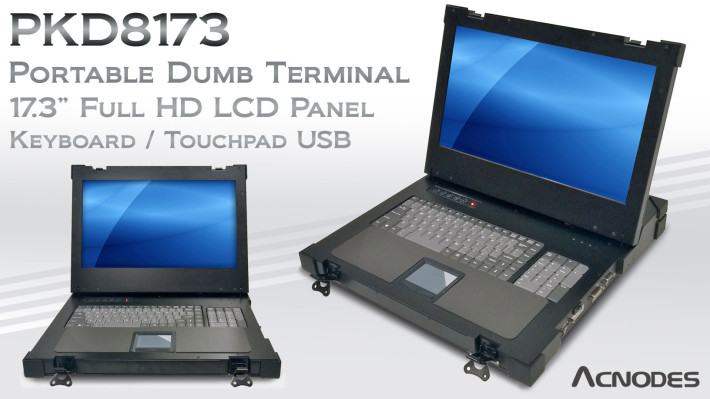

The PKD8173 is a 17.3" portable monitor keyboard dumb terminal with 1920 x 1080 Full HD resolution and a 108-key keyboard with a touchpad. It has a full aluminum outer case with a hard-anodized coating and shock-absorbing corner bumpers. The LCD is protected by an AR glass and offers the option for touch screen technology. The PKD81732 is ideal for a wide range of applications including military, field operations, field data acquisition, and factory automation.
Portable console PKD8170 Front View

PKD8170

PKD8175

PKD8175

PKD8173

  • Ruggedized portable dumb terminal
  • 17.3” 1920 x 1080 full HD industrial LCD panel
  • Front OSD (on-screen display) control function
  • VGA + DVI video input
  • 108-key keyboard with touchpad
  • AR protective glass and corner rubber protector
  • Compliance to MIL-STD-810F & MIL-STD-461E
  • AC power input
$1,795.00
Availability: In stock
SKU
PKD8173
17.3" portable dumb terminal with a 1920 x 1080 Full HD LED backlight LCD panel, 108-key keyboard with touchpad, VGA + DVI input, and AC power input.
Construction
Full aluminum with hard-anodized coating
Corner bumper for impact proof protection
LCD panel
Size: 17.3 inch
Max. Resolution: 1920 x 1080
Brightness (cd/m²): 300
Contrast Ratio (typ.): 600:1
Viewing Angle: -85~85 (H); -85~ 85 (V)
Active Area (mm): 381.888(H) x 214.812(V)
Pixel Pitch (mm): 0.1989(H) x 0.1989(V)
Backlight: LED
Colors: 16.7M
Option for 1000-nit high brightness display
LCD Protection
AR tempered glass
Keyboard and Touchpad
108-key keyboard and touchpad (USB)
IP65 rated keyboard & keypad
Video Input
VGA + DVI video input
Option for BNC or Audio input
Touch Screen (Option)
Option for Resistive type touch screen
PCAP type multi-touch screen is available upon request
*If PCAP touch screen option is selected, the dimensions will change
Front OSD Buttons
OSD membrane switch
Connectors
1 x VGA D-Sub 15-pin
1 x DVI
1 x BNC (Optional)
1 x Audio In (Optional)
1 x AC power input
1 x USB for keyboard
1 x PWN ON/OFF
Power Supply
Input: AC power input
Power Consumption: 32W (typ.)
Weight
TBD

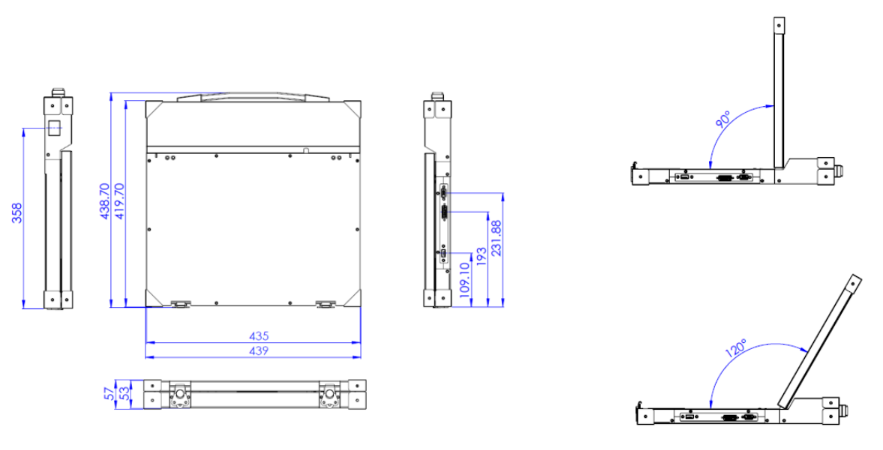

Dimension
17.36”(W) x 18.55“(D) x 2.32”(H)
Environmental
Operating Temperature: 0°C to 60°C
Storage Temperature: -30°C to 70°C
Humidity: 5~95%, non-condensing
Shock: Compliance to MIL-STD-810F Method 516.6 Procedure I
Vibration: Compliance to MIL-STD-810F Method 514.5 / Procedure I

PKD8173:
17.3-inch 1920 x 1080 Full HD portable dumb terminal, 300-nit brightness, 108-key keyboard with touchpad, VGA + DVI input, AC power input, MIL-STD-810F compliance, Black color. Option for 1000-nits high brightness, Resistive or PCAP touch screen, and BNC or Audio input.

Lead Time: 10 to 12 weeks

Document
Description
Download Link
file iconPKD8173-SP.pdf
Spec Sheet
