The PMW7032 is a 31.5" 4K open frame LCD monitor supporting 3840 x 2160 native resolution, DP 1.2 + HDMI 1.4 + HDMI 2.0 input, universal or VESA (300 x 300mm) mount, and an open frame metal enclosure. With a display 4 times the resolution of FHD, it achieves superior picture quality with exceptional image clarity and sharpness. The open frame design allows it to be easily fitted into existing equipment or structural housings, such as kiosks. It also allows users to design a custom bezel for individual projects or specific industry requirements.
Loading...
28

PMW7028

PMW7032

  • 31.5" 4K UHD open frame LCD monitor
  • Supports 3840 x 2160 native resolution
  • DP 1.2 + HDMI 1.4 + HDMI 2.0 video input
  • Option for 3G-SDI input or MCS multi-display control
  • Option for Projected Capacitive touch screen - USB
  • Option for video decoding capability up to 1080P
  • PIP sub-screen & PBP dual-screen viewing efficiency
  • Universal & VESA (300 x 300mm) mount ready
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
$1,638.00
Availability: In stock
SKU
PMW7032
Email
31.5" 3840 x 2160 4K open frame LCD monitor with DP 1.2 + HDMI 1.4 + HDMI 2.0 video input, universal or VESA mount, and an open frame metal construction.
Material
Open frame metal construction
Rear rugged metal enclosure
LCD Panel
Size: 31.5 inch
Native Resolution: 3840 x 2160
Brightness (cd/m²): 300
Contrast Ratio (typ.): 1000:1
Colors: 1.07 Billion, 10-bit
Viewing Angle (H/V): 178° x 178°
Response Time (ms): 20
Dot Pitch (mm): 0.181
Display Area (mm): 698.4H x 392.85V
Surface Treatment: Anti-glare
Surface Hardness: 3H
Backlight Type: LED
MTBF (hrs): 30,000
Video Input
Standard: DP 1.2 + HDMI 1.4 + HDMI 2.0
Option: 3G-SDI or MCS multi-display control
Touch Screen (Option)
Projected Capacitive 10-pt touch screen - USB port
Lockable USB connector
HDMI Modules (Option)
HDMI decoder module 1080P over IP
HDMI receiver module 1080P
HDMI quad display module 1080P
Rear Panel
Power on/off switch
OSD membrane switch
OSD Menu Control
OSD membrane switch control for Picture, Position, Color, OSD Set, Reset, PIP, and MISC
Mounting Type
Universal mount or VESA (300 x 300mm) mount
Power Supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption: Max. 56W, Standby 9W
Option for 12V / 24V / 48V / 125V DC power input
Weight
36.1 lb / 16.4 kg

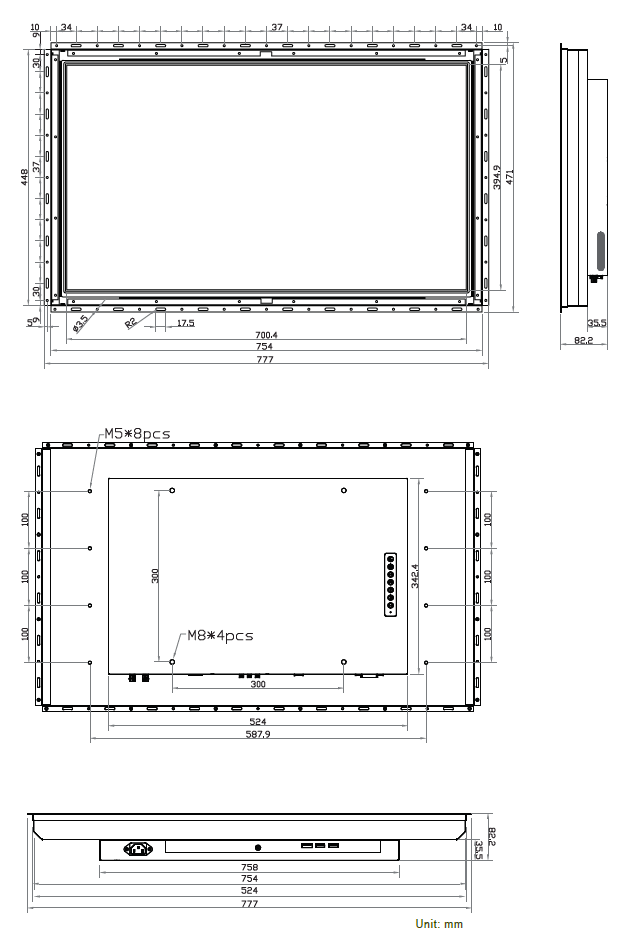

Dimension
30.6”(W) x 3.2"(D) x 18.5"(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
FCC, CE, RoHS, TAA Compliant

PMW7032:
31.5" 4K open frame LCD monitor, 3840 x 2160 native resolution, DP 1.2 + HDMI 1.4 + HDMI 2.0 input, VESA (300 x 300mm) mount, 100/240VAC power input, open frame metal enclosure.

Document
Description
Download Link
file iconPMW7032-SP.pdf
Spec Sheet
file iconPMW7032-UM.pdf
User Manual
  • PMW7032
    31.5" 4K UHD open frame LCD monitor
    Supports 3840 x 2160 native resolution
    DP 1.2 + HDMI 1.4 + HDMI 2.0 video input
    Option for 3G-SDI input or MCS multi-display control
    Option for Projected Capacitive touch screen - USB
    Option for video decoding capability up to 1080P
    PIP sub-screen & PBP dual-screen viewing efficiency
    Universal & VESA (300 x 300mm) mount ready
    Auto-sensing 100 to 240VAC, 50 / 60Hz power input
    Starting at:
    $1,638.00
PMW7032
$1,638.00

PRODUCT DESCRIPTION
PMW7032 is an industrial-grade panel mount monitor with a 3840 x 2160 4K display resolution designed to satisfy a wide range of industrial, commercial, broadcast, and military requirements. The monitor features a 31.5" 4K widescreen LED LCD with 300nit brightness, 1000:1 contrast ratio, and 1.07 billion colors, and has a viewing angle of 89° vertically and horizontally. The video input incorporates DP 1.2 (3840 x 2160, 60Hz) and HDMI 2.0 (3840 x 2160, 60Hz) / 4.0 (3840 x 2160, 30Hz) video input signals and offers on-screen display allowing users to adjust display characteristics or select viewing options with a touch of a button. The panel housing comes with an open-frame metal construction. Option for touch screen and MCS control. This rugged panel monitor is ready for panel or VESA mounting that will fit into any of your applications. The internal power supply module includes an external 100/240V AC power adapter with an option for 12V / 24V / 48V / 125V DC power input. PMW7032 is designed to operate in temperatures from 0°C to 50°C, making it ideal for industrial applications and control room projects. This unit offers a wealth of value-added optional features such as touchscreen integration, HDMI modules, MCS control, and 3G/HD/SD-SDI input. Weighing at 36.1 pounds and with dimensions of 30.6"(W) x 3.2"(D) x 18.5"(H), it can withstand operating temperatures of 32°F (0°C) to 131°F (55°C) and storage temperature of -7°F (-20°C) to -76°F (60°C). PMW7032 is powered by an external auto-sensing 100 to 240V AC, 50/60Hz power adapter.
