The PMW7013 is a 13.3" 4K open frame LCD monitor supporting 3840 x 2160 native resolution, DP 1.2 + HDMI 1.4 + HDMI 2.0 input, universal or VESA (100 x 100mm) mount, and an open frame metal enclosure. With a display 4 times the resolution of FHD, it achieves superior picture quality with exceptional image clarity and sharpness. The open frame design allows it to be easily fitted into existing equipment or structural housings, such as kiosks. It also allows users to design a custom bezel for individual projects or specific industry requirements.
Loading...
15.6

PMW7015

PMW7013

  • 13.3" 4K UHD open frame LCD monitor
  • Supports 3840 x 2160 native resolution
  • DP 1.2 + HDMI 1.4 + HDMI 2.0 video input
  • Option for 3G-SDI input or MCS multi-display control
  • Option for Resistive or PCAP touch screen - USB
  • Option for video decoding capability up to 1080P
  • PIP sub-screen & PBP dual-screen viewing efficiency
  • Universal & VESA (100 x 100mm) mount ready
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
$804.00
Availability: In stock
SKU
PMW7013
Email

13.3" open frame monitor supporting 3840 x 2160 4K UHD resolution, DP 1.2 + HDMI 1.4 + HDMI 2.0 video input, and an open frame rugged metal construction.

Material
Open frame metal construction
Rear rugged metal enclosure
LCD Panel
Size: 13.3 inch
Native Resolution: 3840 x 2160
Brightness (cd/m²): 340
Contrast Ratio (typ.): 1500:1
Colors: 16.7 M, 8-bit
Viewing Angle (H/V): 178°x 178°
Response Time (ms): 29
Dot Pitch (mm): 0.0765
Display Area (mm): 293.76H x 165.24V
Surface Treatment: Glare
Surface Hardness: 3H
Backlight Type: 3H
MTBF (hrs): 15,000
Video Input
Standard: DP 1.2 + HDMI 1.4 + HDMI 2.0
Option: 3G-SDI or MCS multi-display control
Touch Screen (Option)
Resistive 1-pt touch screen - USB port
Projected Capacitive 10-pt touch screen - USB port
Lockable USB connector
HDMI Modules (Option)
HDMI decoder module 1080P over IP
HDMI receiver module 1080P
HDMI quad display module 1080P
Rear Panel
Power on/off switch & OSD membrane switch
OSD Menu Control
OSD membrane switch control for Picture, Position, Color, OSD Set, Reset, PIP, and MISC
Mounting Type
Universal mount or VESA (100 x 100mm) mount
Cable
1 x 6ft DP cable included
1 x Power adapter included
1 x Power cord included
Power Supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption: Max. 9W, Standby 2W
Option for 12V / 24V / 48V / 125V DC power input
Weight
10 lb / 4.5 kg (estimated)

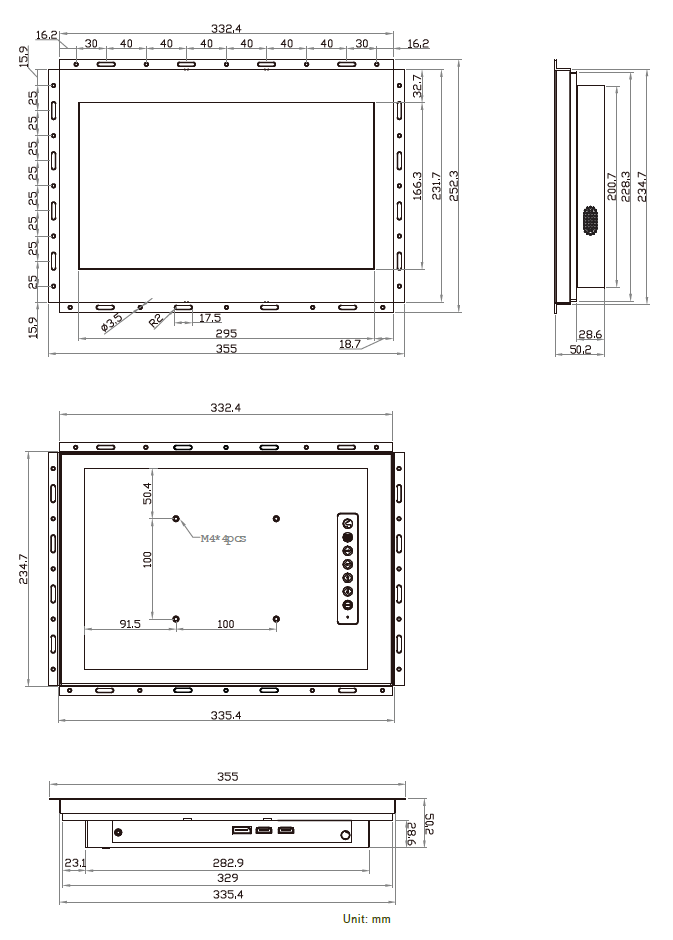

Dimension
14"(W) x 2"(D) x 9.9"(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA Compliant

PMW7013:
 13.3" 4K open frame LCD monitor, 3840 x 2160 native resolution, DP 1.2 + HDMI 1.4 + HDMI 2.0 input, 100/240VAC power input, VESA (100 x 100mm) mount ready, open frame metal enclosure.

Document
Description
Download Link
file iconPMW7013-SP.pdf
Spec Sheet
  • PMW7013
    13.3" 4K UHD open frame LCD monitor
    Supports 3840 x 2160 native resolution
    DP 1.2 + HDMI 1.4 + HDMI 2.0 video input
    Option for 3G-SDI input or MCS multi-display control
    Option for Resistive or PCAP touch screen - USB
    Option for video decoding capability up to 1080P
    PIP sub-screen & PBP dual-screen viewing efficiency
    Universal & VESA (100 x 100mm) mount ready
    Auto-sensing 100 to 240VAC, 50 / 60Hz power input
