Panel mount monitor a 26 inch 1366 x 768 wide screen industrial monitor with VGA + DVI-D + HDMI + BNC + S-Video + audio + remote controller video input and open frame metal construction. Option for touch screen, TV (NTSC / PAL), MCS OSD control & 24 / 48VDC power supply.
Loading...
20.1

PM6200

19

PMW6190

PMW6260

  • Open frame metal construction
  • 2" short depth casing
  • 26 inch 1366 x 768 wide screen industrial monitor
  • VGA + DVI-D + HDMI + BNC + S-Video video input
  • Audio input with remote controller
  • Option for TV (NTSC / PAL)
  • Option for touch screen monitor, MCS OSD control
  • Wall / panel / VESA (75mm) mount ready
  • 110/220 auto-switch AC power adapter
  • option for 24 / 48VDC power supply
$750.00
Availability: In stock
SKU
PMW6260
Email
Panel mount monitor a 26 inch 1366 x 768 wide screen industrial LCD display with VGA + DVI-D + HDMI + BNC + S-Video, Audio, remote controller, aluminum front bezel & VESA or panel mount. Option for touch screen, IP65 rated front bezel, TV tuner MCS & DC power input.
Material
Heavy duty steel
LCD Panel
Size: 26 inch wide screen
Max Resolution: 1366 x 768
Brightness: 350
Contrast Ratio (typ): 1000:1
Viewing Angle (H/V): 178° x 178°
Active Area (mm): 576 x 324
Colors: 16.7M
Signal Input: VGA + DVI-D
Back light: CCFL
MTBF (hrs): 50,000
Video input
VGA + DVI-D + HDMI + BNC + S-Video + Audio + remote controller
OSD menu control
OSD membrane switch control for
Brightness, Contrast, Phase & Clock, Color, H & V position, Auto-tune
Option for MCS multi-display OSD menu control
1 x RS-232 link port & x 2 RJ-45 ports in/out ports
Cascade up to 64 monitors
RS-232 (link to computer) port
RJ 45 port ( in/out ports between each monitor)
(Cat5 or Cat6 cable, up to 300 meters between each monitor)
TV Tuner (option)
TV tuner (NTSC / PAL) with analog single input
Touch screen monitor (option)
Resistive or Capacitive type 26 inch touch screen monitor, USB port
Rear panel control
Power on/off switch
OSD membrane switch
Mounting Type
Open frame panel mount or VESA (75mm) mount
Power supply
Auto-sensing 100 to 240VAC, 50/ 60Hz power adapter
Consumption: Max. 200 Watt, Standby 20 Watt
Option for 24 / 48VDC power supply
Weight
33lbs
Dimension
26.5"(W) x 16.6"(H) x 2"(D)
Environmental
Operating: 0 to 50°C Degree
Storage: -5 to 60°C Degree
Relative humidity: 5~90%, non-condensing
Shock: 10G acceleration (11 ms duration)
Vibration: 5~500Hz 1G RMS random vibration
Certification
FCC, CE

PMW6260:
26 inch 1366 x 768 350-nit high brightness wide screen industrial monitor & open frame monitor, black color.
VGA + DVI + HDMI + BNC + S-Video video input and Audo with remote controller, Option for touch screen, MCS, TV tuner and DC power input
Price start from: $750.00

Document
Description
Download Link
file iconPMW6260-DATA.pdf
Data Sheet

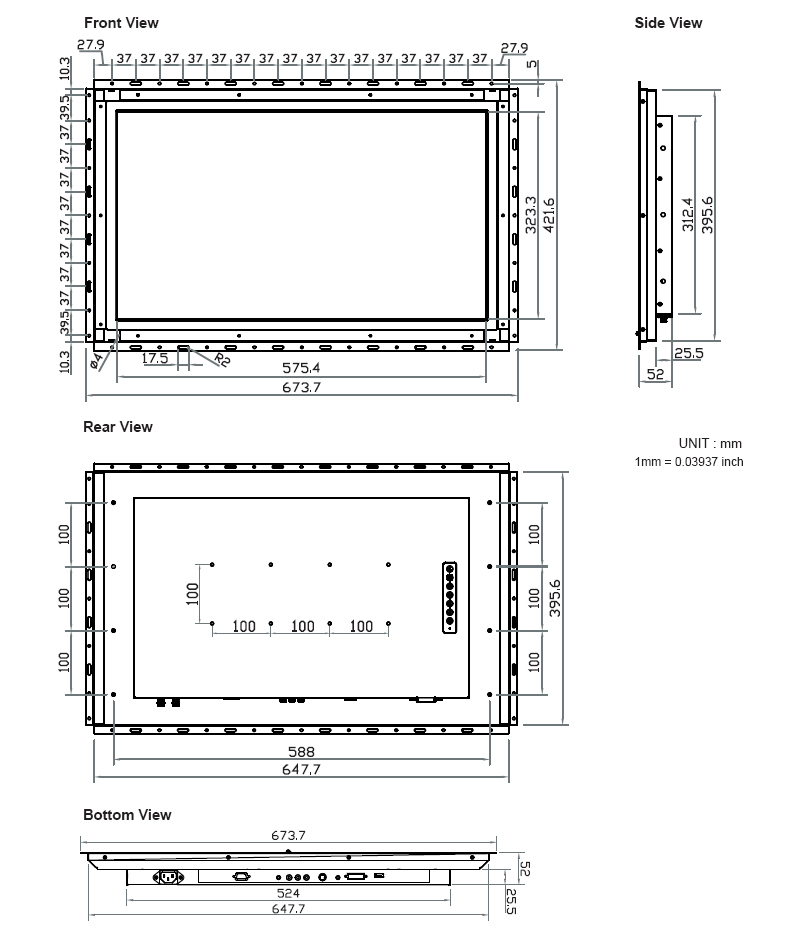

file iconPMW6260-DIM.pdf
Dimension
file iconPMW6260-UM.pdf
User Manual
file iconMCS-UM.pdf
MCS User Manual
  • PMW6260
    26 inch 1366 x 768 wide screen LCD monitor
    VGA + DVI-D + HDMI + BNC video input
    Open frame metal construction
    VESA (75mm) mount
    Option for touch screen, MCS & TV tuner
    Starting at:
    $750.00
PMW6260
$750.00

LCD Monitor:
  The 26 inch 1366 x 768 wide screen CCFL back light industrial monitor is an active type LCD panel digital to digital which connects to the on board conversion board. The monitor comes with a VGA + DVI-D + HDMI + BNC + S-Video video input and Audio input on the back of the monitor for your industrial computer connection. option for TV tuner (NTSC / PAL) with analog input. The OSD function lets you adjust the LCD display for the best viewing angle. Option for MCS OSD menu control up to 64 monitors. All the OSD buttons are located on the back of the LCD monitor. Option for resistive or Capacitive type touch screen for industrial automation control display applications.

Open Frame Housing:
  The monitor comes with a rugged metal open frame construction for panel or wall mount industrial display application.
Cables:
  It comes standard with one 6' VGA cable for industrial monitor. Option for touch screen monitor (USB type).

Power Supply:
  It comes with an 110/220VAC auto-switch power adapter. Option for 24 / 48VDC power supply

Mounting:
Open frame monitor comes with front mounting bezel for panel or wall mount application or rear VESA (75mm) mounting holes for VESA mount application.
