The PMW6070 7" open frame monitor is a reliable, cost-effective industrial solution designed for kiosk information systems, industrial automation, self-service, and commercial applications. The monitor supports 800 x 480 display resolution, VGA + DVI + HDMI input, an optional built-in touch screen for interactive applications, and a 12V DC input with an adapter. With an open frame modularized design, it provides flexible product configuration and mounting that allows you to custom design enclosures for specific applications and OEM customers.
Loading...
17.3

PMW6173

10.1

PMW6101

PMW6070

  • 7 inch widescreen open frame LCD monitor
  • Supports 800 x 480 display resolution
  • 400-nits brightness, option for 1000-nits high brightness
  • VGA + HDMI + DVI input
  • Option for VGA + HDMI + DP input
  • Option for AG glass, AR glass, Resistive touch, Capacitive touch
  • Option for UV film, light/motion sensor, digital signage
  • Option for -30°C to 80°C wide working temperature
  • Wall and VESA (75 x 75mm) mount ready
  • 12V DC input with adapter
$575.00
Availability: In stock
SKU
PMW6070
Email
7" widescreen open frame LCD monitor with 800 x 480 display resolution, VGA + HDMI + DVI input, 12V DC input with adapter, and an open frame metal enclosure.
Material
Heavy-duty steel
LCD Panel
Size: 7 inch
Max Resolution: 800 x 480
Brightness (cd/m²): 400-nits
Option for 1000-nits high brightness
Contrast Ratio (typ.): 500:1
Viewing Angle (H/V): 130° x 110°
Active Area (mm): 152.40(H) x 91.44(V)
Pixel Pitch (mm): 0.1905(H) x 0.1905(V)
Response Time: ≤ 30ms
Backlight: LED
Colors: 262K
MTBF (hrs): 35,000
LCD Enhancements
(Option)
Option for UV film
Option for AG Glass, AR Glass, Resistive touch, Capacitive touch
Video Input
VGA + HDMI + DVI input
Option for VGA + HDMI + DP input
On-Screen Display
5 x OSD buttons for Power On/Off, Auto, Up, Down, Menu
Option for external OSD box
Sensor (Option)
Option for light sensor or motion sensor
Digital Signage (Option)
Option for MP-1080P
Power Supply
Input: 12V DC input with adapter
Operation / Power Saving: 9.625 watt, < 2 watt (Support DPMS)
Option for Isolated 9-36V DC-IN or 24V / 48V / 72V / 90V / 125V / 250V DC-IN
Mounting
Wall mount and VESA (75mm) mount ready
Weight
6.61 lb / 3 kg
Dimension
7.07"(W) x 5.67"(D) x 2.29"(H)
Environmental
Operating Temperature: 0°C to 50°C
Option for -30°C to 80°C wide operating temperature
Storage Temperature: -20°C to 60°C
Humidity: 10% ~ 90% (no condensation)
Safety
FCC, CE

PMW6070:
7" open frame LCD monitor, 800 x 480 resolution, 400-nits brightness, VGA + HDMI + DVI input, 12V DC input with adapter, VESA (75 x 75mm) mount, open frame metal enclosure.

Document
Description
Download Link
file iconPMW6070-SP.pdf
Spec Sheet

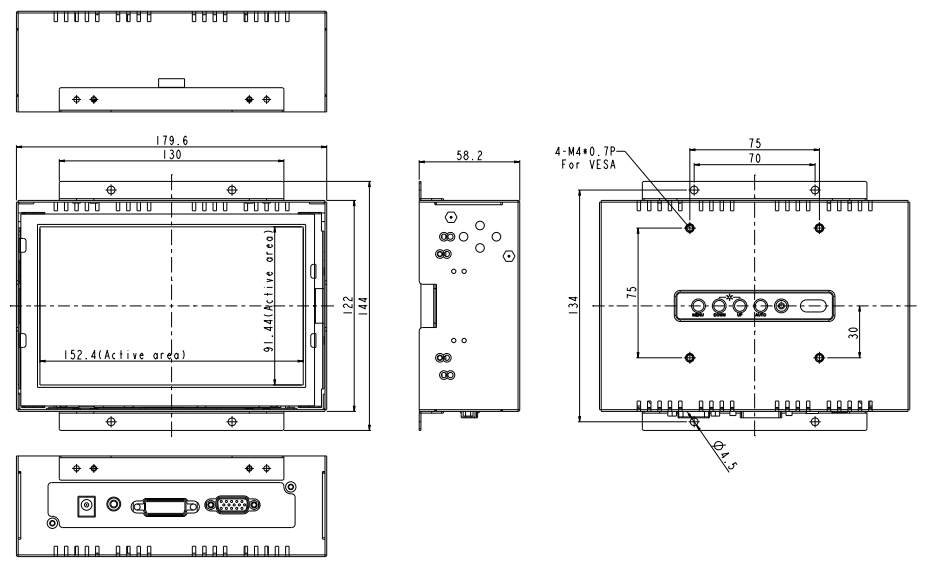

file iconPMW6070-DIM.pdf
Dimension
  • PMW6070
    7 inch widescreen open frame LCD monitor
    Supports 800 x 480 display resolution
    400-nits brightness, option for 1000-nits high brightness
    VGA + HDMI + DVI input
    Option for VGA + HDMI + DP input
    Option for AG glass, AR glass, Resistive touch, Capacitive touch
    Option for UV film, light/motion sensor, digital signage
    Option for -30°C to 80°C wide working temperature
    Wall and VESA (75 x 75mm) mount ready
    12V DC input with adapter
    Starting at:
    $575.00
PMW6070
$575.00



PRODUCT DESCRIPTION
The PMW6070 is a heavy-duty steel open frame monitor with a front mounting bracket containing a 7-inch LED backlight LCD panel with VGA + HDMI + DVI video input and a 12V DC power input with an adapter.  The 7 inch LCD panel supports a resolution of 800 x 480, 400-nits brightness, 500:1 contrast ratio, 262K colors, and MTBF at 35,000 hours. It also comes with an option for a 1000-nits high brightness panel and an option for an external OSD membrane box. An optional Resistive or Capacitive touch screen with a USB port is available to add on for interactive applications. The connectors include 1 x VGA port, 1 x HDMI port, 1 x DVI port, and 1 x power input. For the power supply, it uses a 12V DC input with an adapter. Options for Isolated 9-36V DC-IN or 24V / 48V / 72V / 90V / 125V / 250V DC-IN are available as well. The PMW6070 can withstand operational temperature from 32°F to 122°F and relative humidity of 10~90%, non-condensing. It can be mounted via the front mounting bracket or wall mounted with the rear VESA mounting holes.
