Sunlight readable open frame monitor with a 21.5 inch 1920 x 1080 Full HD LCD panel, VGA + DVI-D video input, and an open frame metal enclosure. Option for Resistive / Capacitive / PCAP type touchscreen, HDMI / DP / Audio / SDI input, auto-dimming or dimming switch, and DC power input.
Loading...
19

PMH9190

17.3

PMH8172

PMH9220

  • 21.5" high brightness open frame LCD monitor
  • Supports 1920 x 1080 native resolution
  • 1000-nits high brightness sunlight readable display
  • VGA + DVI-D video input
  • Option for HDMI, BNC, Audio, 3G-SDI, or MCS control
  • Option for Resistive or PCAP touch screen - USB
  • Universal & VESA (100 x 100mm) mount ready
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
$1,384.00
Availability: In stock
SKU
PMH9220
Email

21.5" 1920 x 1080 Full HD 1000-nit high brightness sunlight readable display with VGA + DVI-D video input, 100/240VAC power adapter, and an open frame metal enclosure.

Material
Heavy duty steel
LCD Panel
Size: 21.5 inch
Max Resolution: 1920 x 1080
Brightness (cd/m²): 1000
Contrast Ratio (typ.): 5000:1
Viewing Angle (H/V): 170° x 160°
Active Area (mm): 476.64H x 268.11V
Colors: 16.7M
Backlight: LED
MTBF (hrs): 50,000
Video input
VGA + DVI-D video input
Option for HDMI, DP, Audio, or 3G/HD/SD-SDI input
Touch screen (option)
Resistive or Projected Capacitive type touch screen - USB
Lockable USB connector
Rear panel control
Power on/off switch
OSD membrane switch
Mounting Type
Open frame panel mount or VESA (100mm) mount
Power Supply
External auto-sensing 100 to 240VAC, 50/60Hz power adapter
Consumption: Max. 32 Watt, Standby 2 Watt
Option for 12V / 24V / 48V / 125V DC power supply
Weight
14.7 lb / 6.7 kg

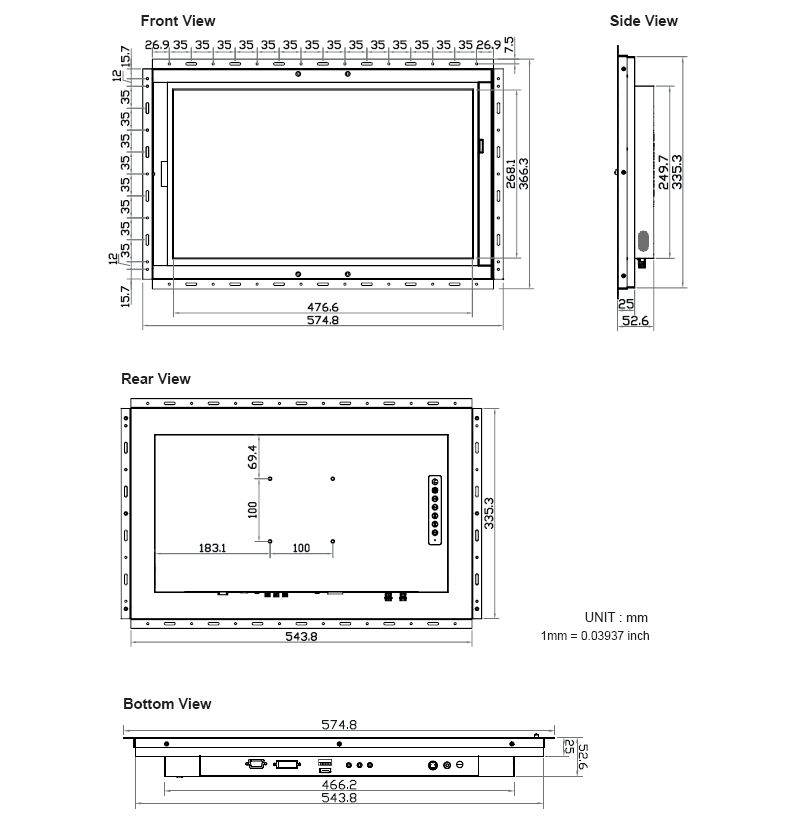

Dimension
22.6"(W) x 2.1"(D) x 14.4"(H)
Environmental
Operating Temperature: 0°C to 55°C (32°F to 131°F)
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Relative Humidity: 20~90%, non-condensing
Attitude: 16,000 ft Operating; 40,000 ft Non-operating
Shock: 10G acceleration (11 ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Safety
FCC, CE

PMH9220:
21.5 inch 1920 x 1080 full HD 1000-nit high brightness industrial LCD panel, VGA + DVI-D video input, OSD menu control, 100/240VAC power supply, open frame metal enclosure, Black color.

Document
Description
Download Link
file iconPMH9220-SP.pdf
Spec Sheet
file iconPMH9220-UM.pdf
User Manual
file iconMCS-UM.pdf
MCS User Manual
  • PMH9220
    21.5" high brightness open frame LCD monitor
    Supports 1920 x 1080 native resolution
    1000-nits high brightness sunlight readable display
    VGA + DVI-D video input
    Option for HDMI, BNC, Audio, 3G-SDI, or MCS control
    Option for Resistive or PCAP touch screen - USB
    Universal & VESA (100 x 100mm) mount ready
    Auto-sensing 100 to 240VAC, 50 / 60Hz power input
    Starting at:
    $1,384.00
PMH9220
$1,384.00

PRODUCT DESCRIPTION
The 21.5-inch (1920 x 1080) 1000-nits widescreen high brightness industrial LCD panel is an active type digital to digital which connects to the onboard conversion board. The high brightness monitor comes with a VGA + DVI-D video-input port on the back of the monitor for your computer connection (Optional audio input). The OSD function lets you adjust the LCD monitor for the best viewing angle. All the OSD buttons are located on the back of the LCD monitor. Option for resistive or capacitive type multiple or single-point touch screen with USB port is available. Anti-reflective and optical bonding for LCD monitor display improvements is available for outdoor sunlight readable application. The monitor comes with an open frame ruggedized metal housing that is ready for universal or VESA mounting to fit into your applications.  It comes with an external 100/240V AC auto-switch power adapter. Optional 24/48/110/125VDC power input is available. The high brightness panel mount monitor is ready for universal mount or VESA mount.
