12.1-inch 800X600 LCD panel mount monitor, open frame housing ready for wall or VESA mount. Optional for resistive touch screen with USB or RS-232 port connector.
PM1210
- Panel mount compact design, only 50mm depth
- 12.1" 800x600 TFT LCD display
- Standard 15-pins mini D-sub connector
- OSD (On Screen Display) function
- VESA-mount or wall-mount ready
- 110/220 auto-switch AC power supply
$495.00
Availability:
In stock
SKU
PM1210
12.1" 800x600 panel mount LCD monitor comes with VGA port & VESA mounting holes. Optional for touch screen.
- Material
- Heavy duty steel
- LCD Panel
- Size: 12.1"
Brightness: 150nit
Resolution: 800 x 600
Display Size: 246.0 x 184.5 mm
Pixel Pitch: 0.3075 x 0.3075 mm
Responsible time: 20ms (rise), 30ms (fall)
Display color: 16M (dithering)
Viewing Angle: +40° ~-40° (L/R) +10° ~-20° ( U/D)
Optional: Touch Screen
- Display Mode
- VGA 640 x 350 ( 70Hz )
VGA 720 x 400 ( 70Hz )
VGA 640 x 480 ( 60/72/75Hz )
SVGA 800x600 (60/72/75Hz)
- OSD Control (On Screen Display)
- Auto-adjustment for brightness, contrast, phase & clock, color,H & V position, Auto-tune & Recall
- Plug & Play
- DDC1/2B
- Connectors
- 1 x D-Sub 15 pin (female) for VGA
Optional: PAL / NTSC, S-video / AV connector
- Power supply
- Auto-switching
40W power supply for 85V~264V AC input
- Weight
- 18lbs
- Dimension
- 323(W ) x 247(H) x 50(D) mm
- Certification
- FCC, CE
- Environmental
- Environment Temperature
Operating: 0 to 55 degree C
Storage: -5 to 60 degrees C
Relative Humidity: 5~90%, non-condensing
PM 1210:
12.1" 800x600 Panel Mount TFT LCD monitor
Price:$495.00
Document
Description
Download Link
PM_1210-data.pdfData Sheet

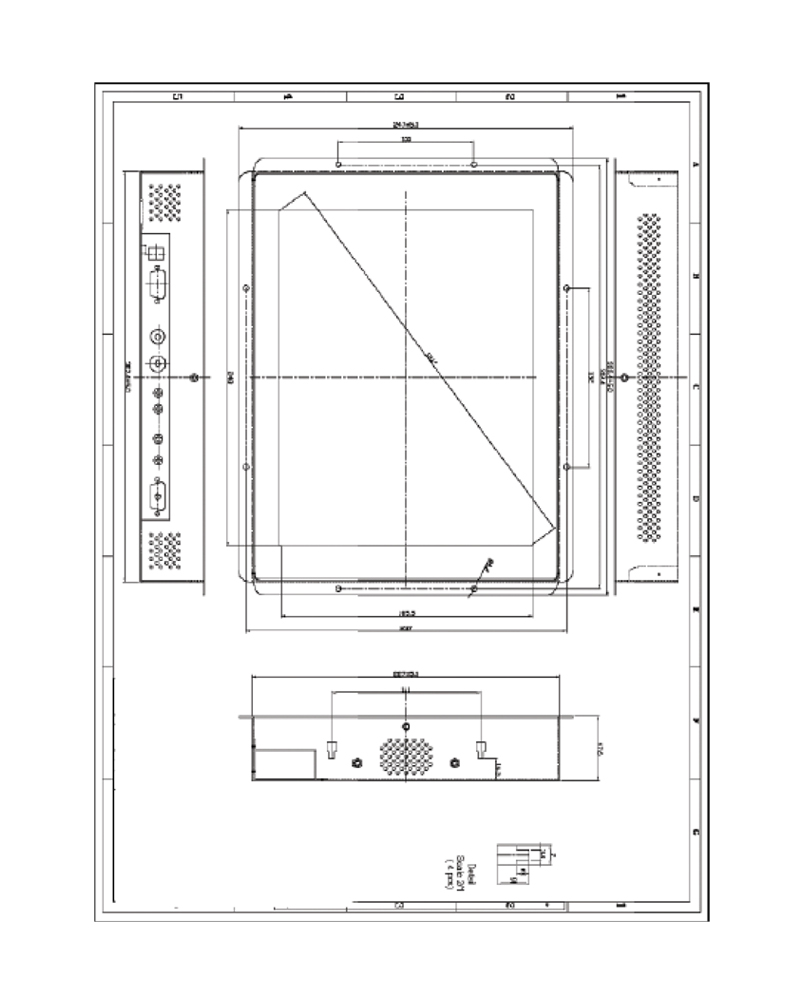

PM_1210-dim.pdfDimension
