NOTICE: PRODUCT CURRENTLY UNAVAILABLE. PLEASE VISIT OPEN FRAME MONITORS FOR RELATED PRODUCTS.

Open frame monitor comes with a 5.7 inch 640 x 480 LED backlight monitor, VGA video input, -30 to 80°C wide range working temperature, and a rugged metal open frame monitor enclosure. Option for touch screen, DVI or SV + AV input, 700-nits or 1,000-nits panel, motion or light sensor, and 24V DC power input.
Loading...
RMS1804

RMS1804

6.5

PM-S0065

PM-S0057

  • Open frame monitor with front mounting bracket
  • 5.7 inch 640 x 480 LED backlight monitor
  • 400-nits brightness LCD panel
  • VGA video input, option for DVI or SV+AV
  • Option for 700 or 1000-nit high brightness panel
  • Option for touchscreen & light or motion sensor
  • Wall mount or VESA (75mm) mount ready
  • -30°C to 80°C wide range working temperature
  • External AC adapter, option for 24V DC power input
Availability: In stock
SKU
PM-S0057
Email
5.7 inch 640 x 480 LED backlight 400-nit LCD with VGA video input and -30° to 80°C wide range working temperature integrated into an open frame monitor enclosure.
Material
Heavy duty steel
LCD Panel
Size: 5.7 inch
Max Resolution: 640 x 480
Brightness  (cd/m²): 400
Contrast Ratio (typ.) : 800:1
Viewing Angle (H/V): 160° x 140°
Active Area (mm): 115.2 x 86.4
Colors: 262K
Signal Input: VGA
Backlight: LED
MTBF (hrs): 35,000
Option for 700 / 1000 nits high brightness panel
Option for digital signage (stand alone), MP 480P
Option for motion sensor or light sensor
Video input
VGA video input
Option for DVI or SV+AV
Touch screen (Option)
Resistive or Capacitive type touch screen -  USB port
Protection (Option)
Protected glass (AR/AR with anti-vandal/AG)
Rear panel control
Power on/off switch
OSD membrane switch
Audio System
2W speaker x 2
Mounting Type
Open frame monitor with front mounting bracket
VESA (75mm) mounting holes
Connectors
1 x VGA port (15 pin female D-Sub)
1 x PC Audio (stereo headphone jack)
1 x DC power plug
Power supply
External auto-sensing 90 to 260VAC, 50/ 60Hz power adapter
Option for 24V DC power supply
Weight
6.61 lb / 3 kg

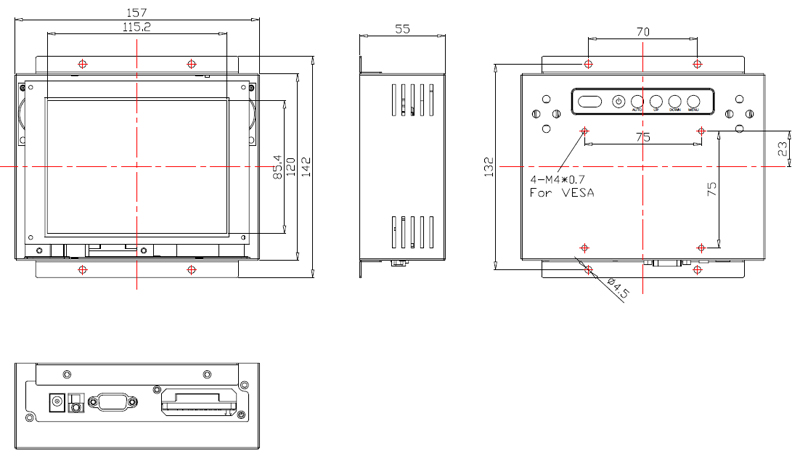

Dimension
6.18"(W) x 5.59"(H) x 2.17"(D)
Environmental
Operating Temperature: -30°C to 80°C (22°F to 176°F)
Storage Temperature: -30°C to 80°C (22°F to 176°F)
Relative Humidity: 10~90%, non-condensing
Certification
FCC, CE

PM-S0057:
5.7 inch 640 x 480 400-nit brightness LCD panel, open frame monitor, VGA video input, 110/220AVC power adapter, Black color. Option for Resistive or Capacitive type touch screen, DVI / SV+AV, high brightness panel, motion sensor, light sensor, digital signage (stand-alone), and DC power supply.

Document
Description
Download Link
file iconPM-S0057-SP.pdf
Spec Sheet
  • PM-S0057
    5.7 inch 640 x 480 panel mount monitor
    400-nits high brightness LCD panel
    Option for 700 and 1000-nits sunlight readable LCD panel
    Option for light & motion sensor and touch screen
    15-pin VGA video input, option for DVI, SV+AV video input
    Option for AR or AG glass protection
    Option for digital signage (stand alone), MP 480P
    External 110/220VAC power adapter, option for 24V DC power input
    Open frame monitor with front mounting bracket & VESA mounting holes
    Starting at:
PM-S0057

PRODUCT DESCRIPTION
PM-S0057 is a 5.7-inch industrial open frame monitor featuring the construction of excellent strength to weight ratio, heavy-duty steel. Industrial monitors like the PM-S0057 are better equipped with the proper protections for harsh environments than commercial monitors. This particular category features monitors that are capable of viewing in high brightness environments like outdoor sunny applications. The monitor provides an LED backlight, 400 nit brightness as well as options for 700/1000 nits high brightness for sunny environments. The PM-20057 provides industrial-grade touch screens. Touch screens allow convenient interactions between the users and the display by simply touching with his or her finger and save space instead of using a mouse console and keyboard. Users have the option to choose a resistive type or capacitive type touch screen for the different applications they might have. The monitor also comes with anti-reflective coating (AR) to work with more vibrant/visible images. Resistive type touch screens are composed of a flexible film called polyethylene on top and a rigid glass layer on the bottom. Resistive type touch screens are durable and resistant to liquids and dust. They can be operated with any object including, but not limited to: finger, gloved hand, pen, stylus, and rods. The next option to consider is capacitive type touch screens. These are commonly utilized in smartphone and tablet technologies around the market today. Capacitive types are different then resistive touch screens with their exceptionally accurate and fast responses from the touch. Capacitive touch screens can be operated by electrical currents from the human finger. These screens provide superior image clarity and perfect for outdoor applications. The rugged monitor provides one VGA port (15 pin female D-Sub), one PC Audio (stereo headphone jack), and one DC power plug. The PM-20057 features adaptable technology with external auto-sensing 90 to 260VAC, 50/ 60Hz power adapter. The audio system provides two 2W speakers. Open frame monitors like the PM-S0057 are capable of operating at very wide ranges of temperatures for harsh industrial environments and weather changes at -30°C to 80°C (22°F to 176°F).

Product Review and Features:
• Open frame monitor with front mounting bracket
• 5.7 inch 640 x 480 LED backlight monitor
• 400-nits high brightness LCD panel
• -30 to 80 degree C wide range working temperature
• VGA video input, Option for DVI / SV+AV
• Option for touch screen
• Option for light or motion sensor
• Option for 700 / 1000 nits high brightness panel
• Wall / VESA (75mm) mount ready
• External AC adapter, option for 24VDC power input
