Stainless steel panel PC with a 12.1 inch 1024 x 768 industrial LCD monitor, Resistive type screen monitor, and an IP66/69K rated waterproof stainless steel enclosure. PCH8120 is constructed with SUS316 stainless steel, which has corrosion resistance properties that allow the monitor to be used in environments where acid or chemicals are present. Powered by the Intel Apollo Lake N3350 1.1GHz CPU, the PC system supports Integrated Intel HD Graphics, 4GB DDR4 memory, and a 128GB SSD. The I/O for the panel PC includes 1 x RS-232, 2 x USB, 1 x RJ45 GbE LAN, and 1 x AC input. All of the I/O ports are IP66 rated connectors. Option for 1000-nits high brightness, PCAP type touch screen, panel mount with gasket, 12V DC power input, and Windows 10 OS.
10.1

PCH8010

PCH8120

  • Full IP66/69K rated rugged stainless steel enclosure
  • 12.1 inch 1024 x 768 industrial LCD monitor
  • 500-nits high brightness, option for 1000-nits high brightness
  • 5-Wire Resistive touch screen, option for PCAP multi-touch
  • Intel Apollo Lake Celeron N3350 1.14GHz CPU
  • 4GB DDR4 memory & 128GB SSD
  • 1 x LAN, 2 x USB, 1 x COM, 1 x Power (IP66 connectors)
  • VESA (100 x 100mm) mounting holes
  • 110/240V AC power input, option for 12V DC power input
$1,735.00
Availability: In stock
SKU
PCH8120
12.1" 1024 x 768 stainless steel panel PC with Intel N3350 1.1GHz CPU, Resistive type touch screen, -15°C to 60°C wide operating temperature, and full IP66/69K rated enclosure.
Material
SUS316 stainless steel
Fully IP66/69K rated anti-corrosion stainless steel
LCD Panel
Size: 12.1 inch
Max Resolution: 1024 x 768
Brightness (cd/m²): 500, option for 1000-nits sunlight-readable display
Contrast Ratio (typ.): 700:1
Viewing Angle (H/V): -80~80(H); -70~70(V)
Colors: 16.2M (8 bit/color)
Touch Screen
5-Wire Resistive touch screen
Option for Projected Capacitive multi-touch screen (USB)
System
CPU: Intel Apollo Lake Celeron N3350 1.1GHz, up to 2.3GHz
Memory: 4GB DDR4 (MAX)
Storage: 128GB SSD
Graphic: Integrated Intel HD Graphics
Ethernet: Intel I210-AT
BIOS: AMI 16 MB Flash
Watchdog: 1~255 min/s
I/O (IP66 Connectors)
Serial Port: 1 x RS232 (IP66)
USB Ports: 2 x USB (IP66)
Ethernet: 1 x RJ45 GbE LAN (IP66)
Power: 1 x AC input (IP66)
Cables
6 feet cables included for each I/O
Option for 10 feet cables for each I/O
Operating System (Option)
Option for Windows 10 Pro 64bit OS
Power Supply
Power Input: 110-240V AC power input
Power Consumption: 28W (typ.)
Option for 12V DC power input
Weight
14.33 lb / 6.5 kg

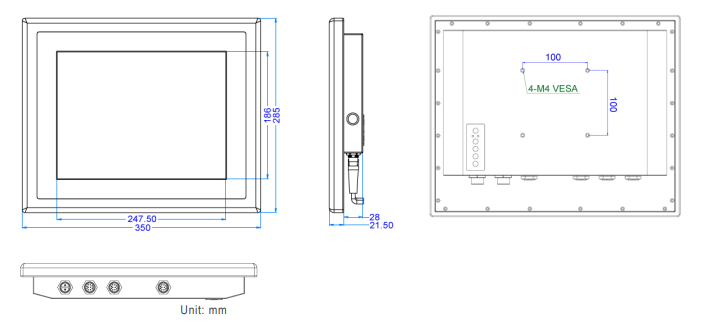

Dimension
13.78"(W) x 11.22"(H) x 1.95"(D)
Mounting
VESA (100 x 100mm) mount
Option for panel mount with gasket
Environmental
Operating Temperature: -15°C to 60°C
Operating Humidity: 10% to 95% (Non-condensing)
IP Grade: Full-IP66/IP69K

PCH8120:
12.1 inch 1024 x 768 industrial LCD monitor, Intel Apollo Lake N3350 CPU, 4GB DDR4 memory, 128GB SSD, Resistive type touch screen, 1 x LAN + 2 x USB + 1 x COM, SUS316 stainless steel, full IP66/69K rated enclosure, 110/240VAC power input. Option for 1000-nits high brightness, PCAP type touch screen, panel mount with gasket, 12V DC power input, and Windows 10 OS.

Current Lead Time: 10 to 12 weeks

Document
Description
Download Link
file iconPCH8120-SP.pdf
Spec Sheet
