Fully IP65 rated embedded computer integrated 15 inch touch screen monitor with Atom N455 1.66GHz fan less processor and stainless steel full flat front bezel and rugged enclosure that designed to withstand excess water, oil and other harsh work environment.
Loading...
Panel PC PCH7592 Front View

PCH7592

Panel PC PCH7792 Front View

PCH7792

PCH7593

  • 15 inch1024 x 768 400-nit industrial LCD display
  • Full Flat stainless steel front bezel design
  • Projective capacitive touch screen monitor
  • Atom N455 1.66GHz fan less embedded computer
  • 2GB memory & 2.5" SSD or SATA HD storage device
  • Fully 69K rated stainless steel enclosure and front bezel
  • 11~32V DC power input with adapter
In stock
SKU
PCH7593
Email
Panel PC - 15 inch 1024 x 768 projective capacitive type touch screen monitor, Atom N455 1.66GHz fan less embedded computer & fully IP69K rated waterproof stainless steel enclosure & full flat front bezel.
Material
Stainless Steel
LCD Panel
Size: 15”
Backlight: LED
Display Color: 262K
Brightness: 400
Display Resolution: 1024 x 768
Viewing Angle (H/V): 160'(H)/ 140'(V)
Light Transmission: 80%
MTBF: 50,000 (hrs)
Option for touch screen type (resistive) MCS Multi-Display
Control Solution, Protective Glass, TV-PAL or NTSC
OSD Control (On Screen Display)
Auto-adjustment for brightness, contrast, phase & clock, color, horizontal-position, vertical - position, auto-tune & recall
Signal Input
HDMI / DVI-D / VGA / S-VIDEO / RCA
Connectors
1 x 2.5" SATA HDD
1 X CF Slot (internal)
1 x DC Power Input
1 x RJ-45 GbE LAN
1 x DB-9 RS-232 (COM 1) connector
1 x DB-9 RS-422/485 (COM 2) connector
2 x USB ports

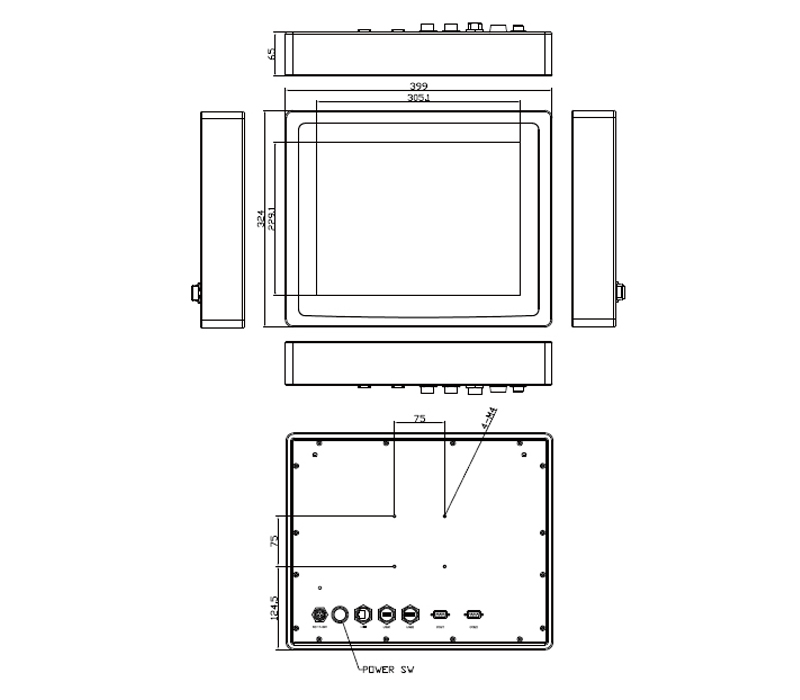

Dimension
399mm x 64.3mm x 324mm
15.71" x 2.53" x 12.76"
(W) x (D) x (H)
Weight
15.22 lbs
Color
Stainless steel
Mounting
VESA 100mm x 100mm
VESA 200mm x 100mm
IP Rating
IP69K
Power Supply
DC 11~32V
Touch Screen
Option for capacitive or resistive touch screen
Certificate
CE, FCC
Environmental
Environment Temperature
Operating: 0 to 50 degree C
Storage: -20 to 60 degrees C
Humidity: 10~90% @ 40C non-condensing

PCH 7593A:
15" 1024 x 768 touch Panel PC comes with resistive-type touch screen, ultra slim IP69K rated enclosure.
2.5" SATA 8GB SLC SSD with projective capacitive touch, Intel atom N455 processor, 2GB DDR3 800MHz memory.
Full flat bezel design and made of great stainless steel, wide working temperature range 11~32V DC power input with adaptor.

Price start from: $2,645.00

PCH 7593B:
15" 1024 x 768 touch Panel PC comes with resistive-type touch screen, ultra slim IP69K rated enclosure.
2.5" SATA2 320GB Industrial HDD with projective capacitive touch, Intel atom N455 processor, 2GB DDR3 800MHz memory.
Full flat bezel design and made of great stainless steel, wide working temperature range 11~32V DC power input with adaptor.

Price start from: $2,610.00

Document
Description
Download Link
file iconPCH_7593-data.pdf
Data Sheet
file iconPCH_7593-dim.pdf
Dimension
  • PCH7593A
    Panel PC Atom N455 Single Core 1.66GHz CPU
    2GB DDR3 memory & 8GB 2.5" SLC SSD
    15" 1024 x 768 projective capacitive type touch screen
    IP69K rated fully enclosure
    IP69K rated front stainless steel bezel
    VESA mount ready
    Starting at:
    $2,645.00
  • PCH7593B
    Panel PC Atom N455 Single Core 1.66GHz CPU
    2GB DDR3 memory & 320GB 2.5" HD
    15" 1024 x 768 projective capacitive type touch screen
    IP69K rated fully enclosure
    IP69K rated front stainless steel bezel
    VESA mount ready
    Starting at:
    $2,610.00
PCH7593A
PCH7593A
$2,645.00
PCH7593B
PCH7593B
$2,610.00

Loading...Please Wait

LCD Panel and Touch Screen:
  The 15 inch (1024 x 768) is a industrial-grade panel pc with SXGA LCD panel. The resistive-type touch screen is mounted on the front of the LCD panel with 5-wire with RS-232 interface flat touch window. The reisitive touch screen provides protection for the LCD panel and a flat glass bezel with touch controller IC is on board. The panel PC comes with IP69K rated front stainless bezel and metal casing.

On Board System Board:
  The embedded fanless system board comes with Intel Atom N455 processor. It comes with the features of the standard mother board and the additional function for industrial application. It supports DDR 3 800MHz moudules for up to 2GB, 2 x serial and 2 x USB ports and one RJ-45 port. The working temperature range is from 0°C to 50 °C.

Input/Output Connectors:
 The system comes with 2 x USB,  1 x power input & 1 x CF internal slot.

Expansion:
  We provide one internal mini PCI expansion slot.

Power Supply:
  The 20W power adapter input is 11~32V DC and it comes with lockable power jack and external 110/220VAC 90W power adapter.

Mounting:x 1
  The casing comes with a standard 100mm x 100mm and 200mm x 100mm VESA mounting holes.

References
What is projected capacitive touch screen?
Projected capacitive touch screen is a multi-touch solution capable to support 10 simultaneous touch points and is extremely durable in most environments.
