Panel PC comes with 17-inch 1280 x 1024 300-nit LCD, 5-wire resistive type touch screen, Atom N270 1.6 GHz fan less embedded computer, VESA mount ready, IP65 rated fully rugged stainless steel enclosure & front bezel for industrial HMI computer applications.
Loading...
Panel PC PCH6515 Front View

PCH6515

PCH6519

PCH6519

PCH6517

  • 17-inch 1280 x 1024 industrail panel
  • Resistive type touch screen monitor
  • Atom N270 1.6GHz fan less embedded computer
  • Single Realtek RTL8111B Gigabit Ethernet
  • Integrated VGA, LVDS/CRT and chrontel chipset
  • IP65 rated stainless steel front bezel and metal casing
$2,695.00
Availability: In stock
SKU
PCH6517
Email
Panel PC - 17-inch 1280 x 1024 touch screen monitor, Atom N270 1.6GHz fan less industrial embedded computer, IP65 rated fully stainless steel enclosure & front bezel.
Material
Stainless steel
LCD Panel
Size: 17”
Max. Resolution: 1280 x 1024
Brightness: 300
Contrast Ratio: 800:1 Viewing Angle (H/V): 80'(H)/ 80'(V)
Pixel Pitch (mm): 0.264(H) x 0.264(V)
Active Display Area: 337.92(H) x 270.34 (V)
Backlight MTBF: 50000 hrs
Colors: 16.7 M
Main System
CPU: Intel Atom N270 1.6GHz (533Mhz)
BIOS: AMI 4Mbit Flash
Chipset: Intel 945GSE/ ICH7
Memory Slot: 1 x SODIMM socket, Maximum 2GB
DDR2 400/533
Graphics: Intel 945 GSE Integrated
Ethernet: 1 x RJ45 LAN
VGA: Integrated in Intel 945 GSE, LVDS/CRT
Audio: Built-in audio + AC97 codec
IDE: 1 x 44pins IDE(UDMA 33/66/100)
USB: 6 x USB 2.0
SATA: 2 x SATA II
I/O Chipset: Winbond W83627EHG
LCD: 24-bit LVDS (Dual Channel)
HDD Driver Bay SSD: 1 x 2.5-inch 80GB
SSD Inerface: 1 x Type I/II CF socket (Internal)
Touchscreen
Resistive type 5-wire with RS-232 interface
Connectors
2 x RS-232(1 x RS232 interal)
1 x RJ45 LAN
6 X USB port (4 x USB internal)
1 X VGA Port
1 X PS/2 mouse and keyboard interface
1 x 12VDC input Power jack
Power supply
DC IN 12V adapter
Input: 12V DC IN (Lockable Power Jack)
Power Consumption: 65W (typ.)
External power supply 90W with power cord
Expansion Slot
1 x Mini PCI (internal)
Color
Silver
Environmental
Temperature Operating:
0 to 45 degree C
Storage: -20 to 60 degrees C
Humidity: 30% to 90% non condensing
Vibration:
Operating-5Hz ~ 500Hz, 1Grms
Packing- 5Hz ~500Hz, 2.16Grms
Shock: 15G, 11ms duration
Net Weight
20lbs

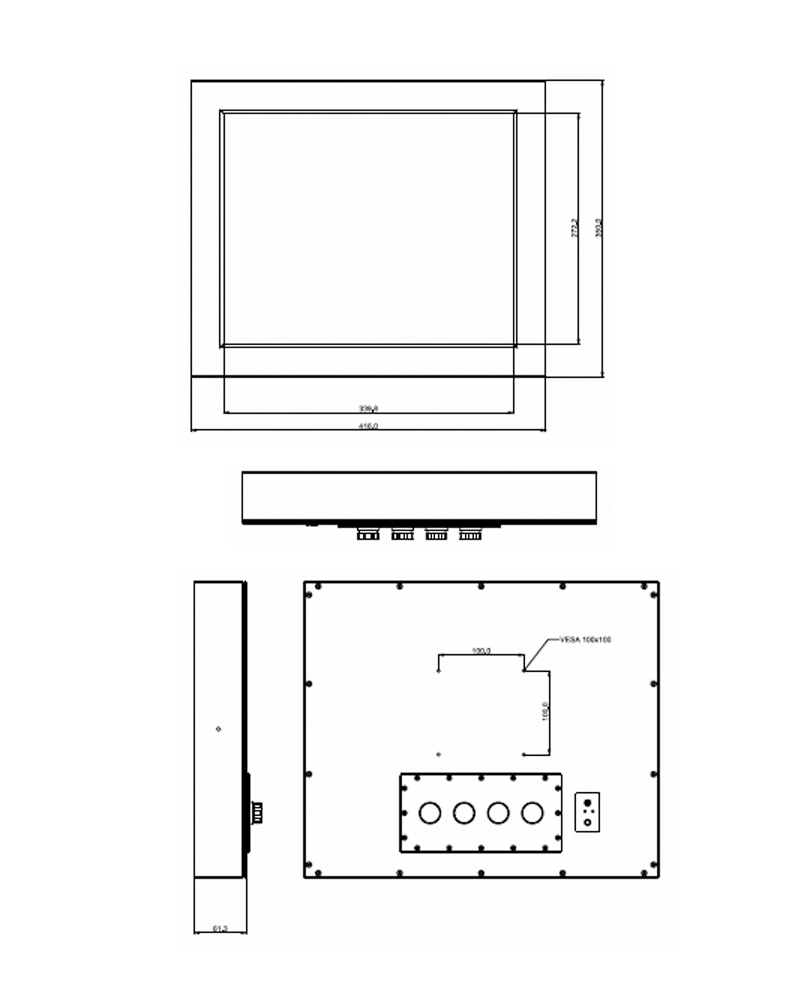

Dimension
350mm(W) x 61.3mm(D) x 416mm(H)

PCH 6517:
17" 1280 x 1024 touch Panel PC comes with resistive-type touch screen, Atom N270 1.6GHz fanless embedded system, 80GB HD, IP65rated enclosure and 110/220 VAC adapter


Price start from: $2,695.00
Document
Description
Download Link
file iconPCH_6517-data.pdf
Data Sheet
file iconPCH_6517-dim.pdf
Dimension
file iconPCH_6517-um.pdf
User Manual
  • PCH6517
    Panel PC Atom N270 1.6GHz CPU
    Fanless embedded computer
    17" 1280 x 1024 touch screen
    IP65 rated fully enclosure
    IP65 rated front stainless steel bezel
    VESA mount ready
    Starting at:
    $2,695.00
PCH6517
$2,695.00

LCD Panel and Touch Screen:
  The 17 inch (1280 x1024) is a industrial-grade panel pc with SXGA LCD panel. The resistive-type touch screen is mounted on the front of the LCD panel with 5-wire with RS-232 interface flat touch window. The reisitive touch screen provides protection for the LCD panel and a flat glass bezel with touch controller IC is on board. the panel pc comes with IP65 rated front stainless bezel and metal casing.

On Board System Board:
  The embedded fanless system board comes with Intel Atom N270 1.6GHz processor, it comes with the features of the standard mother board and the additional function for industrial application. It supports DDR 2 400/533MHz moudules for up to 1GB, 2 x serial and 6 x USB ports and one RJ-45 port. The working temperature range is from 0°C to 45 °C.

Input/Output Connectors:
The system comes with 2 x USB, 1 x RS232, 1 x power input & 1 x PS/2 mouse and keyboard interface.

Expansion:
  We provide one internal mini PCI expansion slot.

Power Supply:
  The 20W power adapter input is 12V DC and it comes with lockable power jack and external 110/220VAC 90W power adapter.

Mounting:x 1
  The casing comes with a standard 100mm VESA mounting holes.
