Panel PC comes with 12-inch 1000-nit sun light readable 1024 x 768 LCD monitor, resistive type touch screen, Atom N270 1.6GHz fan less embedded computer, fully IP67 rated rugged aluminum die casting enclosure & waterproof lockable I/O for industrial HMI computer applications.
Loading...
Panel PC PCH5120 Front View

PCH5120

Panel PC PCH6515 Front View

PCH6515

PCH5121

  • 12.1-inch SXGA LCD with LED back light
  • 1000 nits LCD with resistive-type touch screen
  • Atom N270 1.6GHz fan less embedded computer
  • IP67 fully enclosed aluminum casting enclosure
  • IP67 waterproof lockable I/O
  • Built-in internal Wifi antenna
  • 2.5-inch SATA HD or Compact-flash socket
$2,395.00
Availability: In stock
SKU
PCH5121
Email
Panel PC - 12-inch 1000-nit 1024 x 768 touch LCD, Atom N270 1.6 GHz fan less embedded computer & fully IP67 rated rugged metal enclosure & front bezel.
Material
Aluminum front panel with heavy duty steel chassis
LCD Panel
Size: 12.1”
Max. Resolution: 1024 x 768
Brightness: 1000
Contrast Ratio: 700:1
Viewing Angle (H/V): 130'(H)/ 120'(V)
Pixel Pitch (mm): 0.240(H) x 0.240(V)
Backlight MTBF: 60000 hours
Colors: 262K
Main System
CPU: Atom N270 1.6GHz (533Mhz)
Chipset: 945GSE+ICH7M
Memory Slot: one 400/533MHz DDR2 SO-DIMM(Max. 2GB)
HDD Driver Bay SSD: 1 x 2.5-inch SATA HDD bay
SSD Interface: 1 x CF Type II
Connectors
1 x Power adapter
1 x two USB
1 x Audio lineout
1 x RS-232/422/485
1 x RS-232
1 x GbE LAN
Touch Screen
Resistive type 5-wire with RS-232 interface
Expansion Slot
1 x Wireless LAN Module
(Internal PCIe mini card interface)
Power supply
9~28VDC, 51W power adapter
(Optionnal power supply 60W power adapter,
Input: 90VAC ~264VAC, 50/60Hz
Output:12VDC)
Mounting
Panel, Rack, Stand and Arm VESA 100mm x 100mm
Certificate
CE, FCC, CB, CCC, DNV
Color
Silver
Environmental
Temperature
Operating:
-10 to 50 degree C
Storage: -20 to 70 degrees C
Humidity: 30% to 90% non condensing
Vibration:
5~17Hz, 0.1" double amplitude displacement
17~640Hz, 1.5G acceleration peak to peak
Shock: 10G acceleration part to part, 11ms duration
Net Weight
5.3Kg

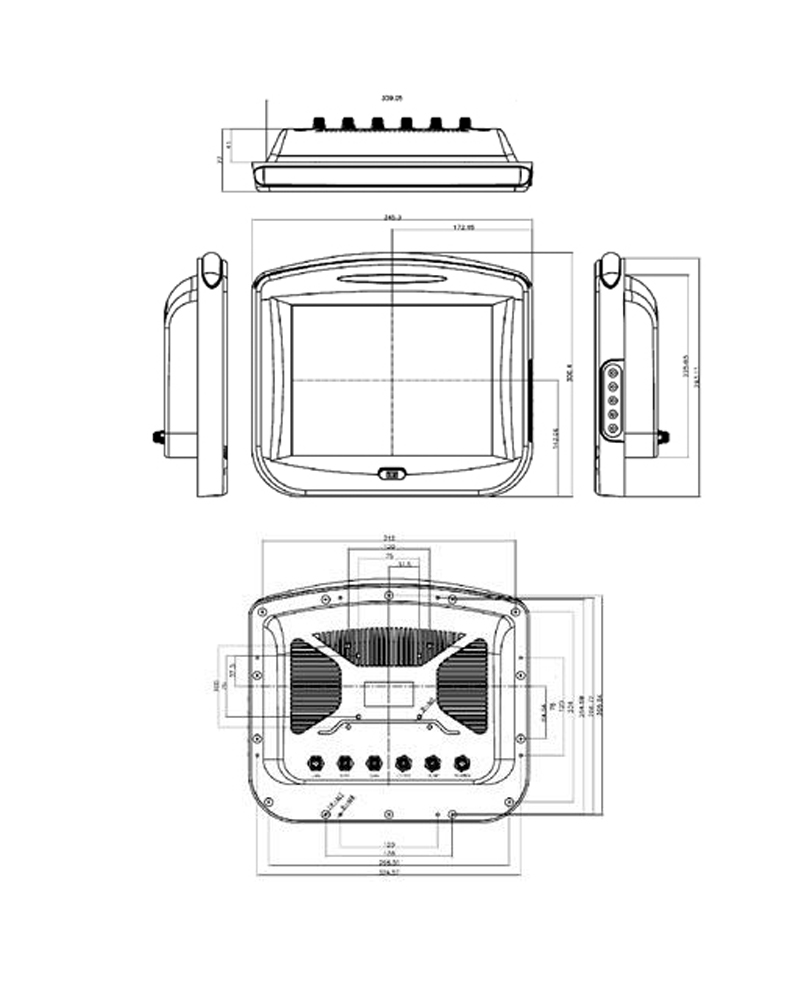

Dimension
345.3mm(W) x 77mm(D) x 300.4mm(H)

PCH 5120:
12" 1024x768 1000-nit touch Panel PC comes with resistive-type touch screen, Atom N270 1.6GHz fanless embedded system, CF card, IP67 rated enclosure and 12VDC power input


Price start from: $2,395.00
Document
Description
Download Link
file iconPCH_5121-data.pdf
Data Sheet
file iconPCH_5121-dim.pdf
Dimension
file iconPCH_5121-um.pdf
User Manual
  • PCH5121
    Panel PC Atom N270 1.6GHz CPU
    Fanless embedded computer
    12" 1000-nit 1024x768 touch screen
    IP67 rated fully rugged metal casing
    IP67 rated front bezel
    Starting at:
    $2,395.00
PCH5121
$2,395.00

LCD Panel and Touch Screen:
  The 12.1 inch 100-nits 1024x768 sun-light reable LCD is an industrial panel PC with an SXGA. The resistive-type touch screen is mounted on the front of the LCD panel with a 5-wire and an RS-232 interface. The resistive touch screen provides protection for the LCD panel and a flat glass bezel with a touch controller IC onboard. It comes with an IP67 compliant front bezel and an IP67 fully-enclosured aluminum die casting enclosure.

Motherboard:
  The industrial LCD panel PC comes with an Atom N270 1.6GHz processor, it comes with the features of the standard mother board and additional functions for industrial applications. It supports DDR2 400/533MHz SO-DIMM moudules (Max. 2GB), 2 x USB ports, 1 x RS-232, 1 X RS-232/422/485 and one VGA port. The working temperature range is from -10°C to 50 °C.

Input/Output Connectors:
 The system comes with 1 x 2 USB, 1 x RS232, 1 x power input & 1 x CAN bus and Audio line out. All the I/O port comes with an IP67 rated waterproof lockable I/O connector.

Expansion:
 We provide one Wireless LAN Module (Internal PCIe mini card interface).

Power Supply:
The 60W power adapter input is a 9~28V DC and it comes with a 5-pin lockable power jack. The system power cinsumption is 33W.

Mounting:
Pc can be panel, rack, stand and arm VESA mounted (100mm x 100mm).
