Industrial touch panel PC with a 23.8 inch 1920 x 1080 Full HD LED backlight monitor, Projected Capacitive multi-touch screen, and an IP65 rated flat front bezel. The system is powered by the Intel 11th generation Tiger Lake Core i5 platform and supports 8GB RAM and 256GB SSD. The panel PC features various I/O ports including 1 x COM, 4 x USB, 2 x GbE LAN, 2 x DP, and 2 x HDMI Output. Option for WiFi 802.11ac and Windows 10 / Windows 11 OS.

Skip to the beginning of the images gallery

PC9240

RMC81110

PC9238

23.8 inch 1920 x 1080 Full HD industrial LCD panel
Aluminum front bezel with IP65 rated front bezel
Intel 11th gen. Tiger Lake Core i5-1145G7E CPU
4 x USB, 1 x COM, 2 x GbE LAN, 2 x DP, 2 x HDMI Output
Projected Capacitive multi-touch screen monitor (10-point)
-10°C to 55°C wide range working temperature
100~220VAC power input
VESA (100 x 100, 200 x 100mm) mounting holes

Availability: In stock

SKU

PC9238

23.8" 1920 x 1080 Full HD industrial touch panel PC with Intel 11th Gen. Tiger Lake Core i5-1145G7E CPU, Projected Capacitive multi-touch screen, and an IP65 rated front bezel.

Specification

Construction: IP65 rated front bezel

LCD Panel: Size: 23.8 inch
Resolution: 1920 x 1080 @ 60Hz
Brightness (cd/m²): 250 nits
Contrast Ratio: 3000: 1 (typ.)
Viewing Angle: -89~89 (H); -89~89 (V)
Active Area (mm): 527.04 (H) x 296.46 (V)
Pixel Pitch (mm): 0.2745 (H) x 0.2745 (V)
Max. Colors: 16.7M
Backlight: LED

Touch Screen: Projected Capacitive 10-point type multi-touch screen

Embedded Board: CPU: Intel 11th Generation Tiger Lake Core i5-1145G7E
Chipsets: Intel Soc integrated
Memory: DDR4 SO-DIMM 8GB
Storage: 256GB SSD
Graphic: Integrated Intel HD Graphics
Ethernet: Intel Ethernet Controller I225-LM + Intel Gigabit Ethernet PHY I219LM
BIOS: AMI 128Mbit Flash BIOS

WiFi (Option): Option for WiFi 802.11ac

Power Supply: Power Input: AC input
Power Consumption: 50 W typical, normal operation
Management: VESA DPMS compliant
Power Cord: 1 x AC Power Code
Power Adapter: N/A

I/O Ports: Serial Ports: 1 x RS232
USB Ports: 4 x USB3.2 (Gen2)
Ethernet: 2 x RJ45 GbE LAN
Video: 2 x DP, 2 x HDMI Output
Power: 1 x AC Input

Cooling: Internal cycle fan, no system fan exposed

Operating System (Option): Option for Windows 10 / Windows 11 OS

Mounting: VESA (100 x 100, 200 x 100mm) mount

Weight: TBD

Dimension: 22.8”(W) x 2.13”(D) x 14.7”(H)

Environmental: Operating Temperature: -10°C to 55°C
Storage Temperature: -30°C to 70°C
Operating Humidity: 10% to 95%, non-condensing
IP Protection: Front IP65

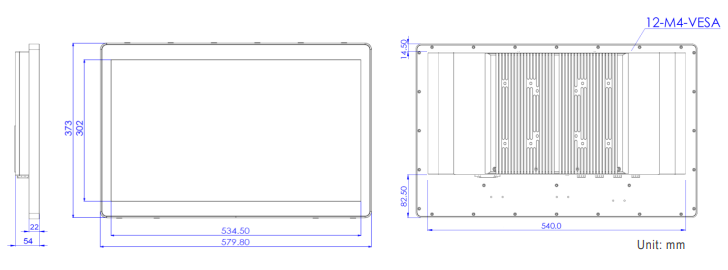

Dimensions

Order Info

PC9328:
23.8 inch 1920 x 1080 250-nit industrial LCD panel, Intel 11th gen. Tiger Lake Core i5-1145G7E CPU, PCAP 10-point type touch screen, 8GB memory, 256GB SSD, AC power input, VESA mount, IP65 rated front bezel. Option for WiFi module and Windows 10 / Windows 11 OS.

Downloads

Document

Description

Download Link

PC9238-SP.pdf

Spec Sheet

Configure Now

PC9238

23.8 inch 1920 x 1080 Full HD industrial LCD panel
Aluminum front bezel with IP65 rated front bezel
Intel 11th gen. Tiger Lake Core i5-1145G7E CPU
4 x USB, 1 x COM, 2 x GbE LAN, 2 x DP, 2 x HDMI Output
Projected Capacitive multi-touch screen monitor (10-point)
-10°C to 55°C wide range working temperature
100~220VAC power input
VESA (100 x 100, 200 x 100mm) mounting holes

Starting at:

PC9238

LCD Panel

23.8 inch 1920 x 1080 LCD screen

Touch Screen

P-cap touch screen (10-point)

CPU

Intel Tiger Lake Core i5-1145G7E

Memory

8GB

Storage

256GB SSD

WiFi

N/A

WiFi 802.11ac + $65.00

Power Supply

AC power input
