Panel PC provides 12-inch 800 X 600 LCD panel with RS-232 resistive-type touch screen, Core 2 Duo embedded system, on board Video / LAN / Audio and 2 x PCI expansion slot. panel or wall mount ready.
Loading...
PC8153

PC8153

PC5172

PC5172

PC8120

  • 12-inch 800 x 600 LCD panel
  • Resistive-type touch screen monitor
  • Aluminum IP65 / NEMA 4 rated front bezel
  • Dual-Core industrial embedded computer
  • 2 x PCI expansion slots
  • 1 x 2.5-inch SATA HD & 1 x slim DVD
  • On-board Video / audio / Dual Giga-bit LAN / stereo speakers
  • 110/220VAC 250W ATX power supply
$1,565.00
Availability: In stock
SKU
PC8120
Email
Panel PC - 12 inch 800 x 600 touch screen monitor, Dual-Core embedded computer, IP65 rated aluminum front bezel & 2 x PCI expansion slots. panel / wall mount ready.
Front Panel
Aluminum with IP65/NEMA 4 rugged protected
LCD Panel
Screen size: 12" TFT
Resolution: 800x600
Viewing Angle: 120° (Vertical) / 140° (Horizontal)
Luminance: 370
Main System
CPU Socket: Socket-775
for Core 2 Duo/Dual Core, Dual Core 2.0GHz(std), up to Core @ Duo 2.66GHz
Bus clock: 533/667/800/1066MHz
BIOS: Phoenix-Award 16Mbit with RPL/PXE LAN boot ROM
Core logic: Intel Q965G+ICH8 chip set
Memory: 2 x 240-pin DDR2 socket, 1GB (std), up to 4GB
SSD: Compac tFlash card supported
Hard drive: SATA 1 x 2.5" internal Hard Disk
Video: Intel 965GMCH Gen 3.5, Max 256MB DVMT frame buffer sharing system memory
Audio: HD Audio for 2 channel output
LAN: 2 x Gigabyte-LAN,
1st via Intel 82566DM, 2nd via RTL 8111B
Serial ports: 2 x RS-232, 1 x RS-232/422/485 +5V power output capability by pin 1 and + 12V by pin 8 W/ selectable via jumper setting
Watchdog timer: reset support 255 levels
Touch Screen
Resistive-type touch screen
Light transmission 79% typical
Control type: RS-232 interface
Point activation: 1 million activations (typical) at a single point
Chemical / Solvent / Abrasion resistant
Front Panel Control
1 x on/off switch for LCD monitor
2 x up/down LCD brightness control
I/O Ports
1 x DB-9 pin (male) for RS-232/RS-422/RS-485 port
2 x DB-9 pin (male) for RS-232
1 x D-sub 15-pin VGA Video out port
2 x 1394a ports
4 x USB ports
2 x RJ45 port
1 x MIC, 1 x Line-in
Expansion Slot
2 x PCI-32 slots
Power supply
90-264VAC full-range, 250W power supply
Operation System Support
Windows XP, Vista, Linux 2.6
Mounting
Panel/wall mount (std)
Optional for rack/desktop mount
Color
Black
Environmental
Operating Temperature 0°C to 45°C (32°F - 113°F)
Operating Humidity: 10% to 95%, @ 40°C non-condensing
Operation vibration: 1.0G, 5 ~ 500Hz, random
Net Weight
25 lbs
Dimension
13.39" (W) x 10.7" (H) x 7.31" (D)
Safety
CE, FCC

PC 8120:
12-inch 800x600 LCD panel with resistive-type touch screen, Core 2 Duo system, on board Video /LAN/Audio, built-in HD/CD-ROM & 2 xPCI expansion slot, wall mount or panel mount ready

price start from $1,565.00


Document
Description
Download Link
file iconPC8120-DATA.pdf
Data Sheet

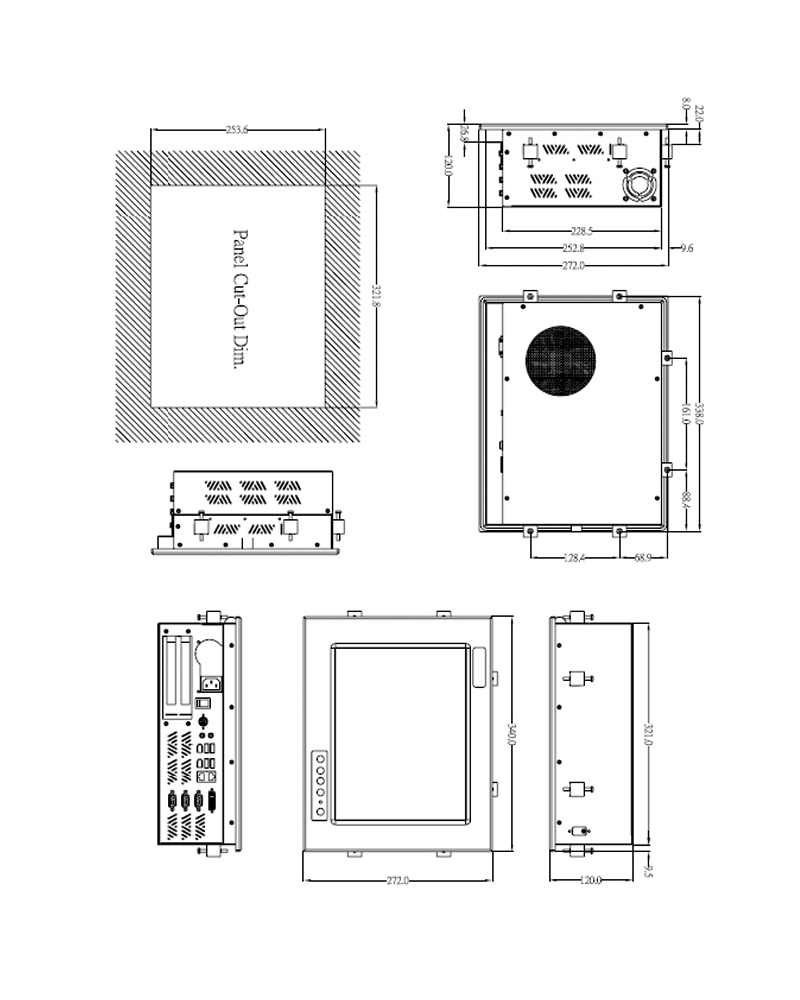

file iconPC_8120-dim.pdf
Dimension
file iconPC_8120-inst.pdf
Installation Guide
file iconPC_8120-um.pdf
User Manual
  • PC8120
    Panel PC Core 2 Duo embedded computer
    12" 800x 600 touch screen
    IP65 rated aluminum front bezel
    2 x PCI expansion slots
    Panel / wall mount ready
    Starting at:
    $1,565.00
PC8120
$1,565.00

LCD Panel and Touch Screen:
  The 12-inch 800 x 600 LCD panel is an active type digital to digital which connects to the on board video. It comes with a standard 15-pin VGA connector on the back of the panel pc for the external display. The resistive type touch screen is mounted on the front of the LCD panel and uses a 5-wire connection to the on-board COM port (standard on COM-3). The touch screen provides protection for the LCD panel and is sealed around the front aluminum bezel housing to prevent water and dust (NEMA4/IP65 rated) from entering.

Onboard System Board:
  The embedded computer board (Socket-775 Core 2 Duo processor) comes with the features of the standard motherboard and the additional function for industrial application. It accepts memory (up to 4GB), 4 RS-232 ports (1 for RS-232/422/485), watch dog timer and on board dual 10/100/1000BT LAN / Video, The petite size of board allows it to be mounted into the slim-type panel pc housing.

Storage Device:
The system comes standard 2.5" SATA HD up to 250GB.

Expansion:
 The system comes with 2 PCI-32 bits expansion slots for the additional cards.

Power Supply:
 The Fanless open-frame 250W 110/220VAC auto-switch power supply is integrated into the Panel pc.

Mounting:
 Panel pc can be wall mounted or panel mounted (mounting kits come with panel pc). Its also comes with standard VESA mounting holes on the back of the panel PC (optional: VESA mounting bracket).
