HIM Panel PC comes with Dual-Core industrial grade embedded computer, 19-inch 1280 x 1024 LCD panel, resistive type touch screen monitor, IP65 rated aluminum front panel, Dual LAN, 2.5-inch SATA HD / slim DVD & 1 x PCI or PCIEx4 expansion slot.
Loading...
PC5172

PC5172

Panel PC PC5156 Front View

PC5156

PC5192

  • 19-inch 1280 x 1024 LCD panel
  • Resistive type touch screen monitor
  • NEMA4 / IP65 front beige color aluminum bezel
  • Dual-core industrial embedded computer
  • Video / Dual Gigabit LAN / HD Audio
  • 2.5-inch SATA HD / slim DVD
  • Wall or panel mount ready
  • One PCI / PCIEx4 expansion slot
$1,790.00
Availability: In stock
SKU
PC5192
Email
Panel PC- 19 inch 1280 x 1024 touch screen monitor, Dual-Core embedded computer, IP65 rated aluminum front bezel & 1 x PCI / PCI-Ex4 slot. panel / wall mount ready.
Front Panel
Material Aluminum Front Panel with Steel Chassis
Front Panel NEMA 4 or IP65-rated
White Pantone 413C Color
LCD Panel
Size: 19-inch Sunlight Readable
Resolution: 1280 x 1024
Luminance: 300
Contrast ratio: 800:1
Viewing Angle(H-V): 160°/160°
Colors: 65G (36 bits)
LCD Panel MTBF: 50,000 hrs
All-in-one System
CPU: Socket 775 Core 2 Duo, Dual core 533/800/1066MHz FSB
Chip set: Intel 945G + ICH7, AMI BIOS
2 x DDR2 memory socket, 4GB memory (max)
1 x Compact Flash Type 2 socket
1 x 2.5" internal SATA HD drive with anti-shock
1 x slim-type Optical drive, DVD RW)
2 x broadcom bcm5787M Gigabyte LAN with ASF2.0 remote control
1 x HD Audio Realtek ALC883
Touch screen
5-wire type resistive-type touch screen
3 gram activation pressure
Light transmission 75% typical
Chemical / Solvent / Abrasion resistant
RS-232 interface
Expansion Slot
1 x PCI-32 half-size expansion slot
1 x PCI-e mini card
System Fan
2 x 40mm ball bearing cooling fan
I/O Ports
4 x RS-232 ports, 1 x RS-232/422/485 port
1x parallel port
2 x PS/2 Ports (Keyboard & mouse)
1 x D-sub 15-pin VGA ports
4 x USB ports
2 x RJ45 GbE ports
1 x MIC, 1 x Line-in, 1 x speaker port
1 x compact Flash slot
Power supply
220W ATX power 90~240VAC, 50/60Hz auto switch power supply
Output (max): 3.3V@ 14A, 5V@16A, 12V@10A, [email protected]
Mounting
Panel/wall mount ready, Optional for rack mount (19" rack cabinet)
Environmental
Operating/Storage temperature: 0°C to 50°C / -20°C to 60°C
Operating Humidity: 5% to 95%, @ 60°C non-condensing
Vibration: 5 - 17Hz, 0.1" peak-to-peak displacement
17-640Hz, 1.5G acceleration peak-to-peak
Shock: 10G acceleration peak-to-peak (11ms)
Net Weight
20 lbs
Dimension
452mm(W) x 356mm(D) x 115mm(H)
Safety
CE/FCC

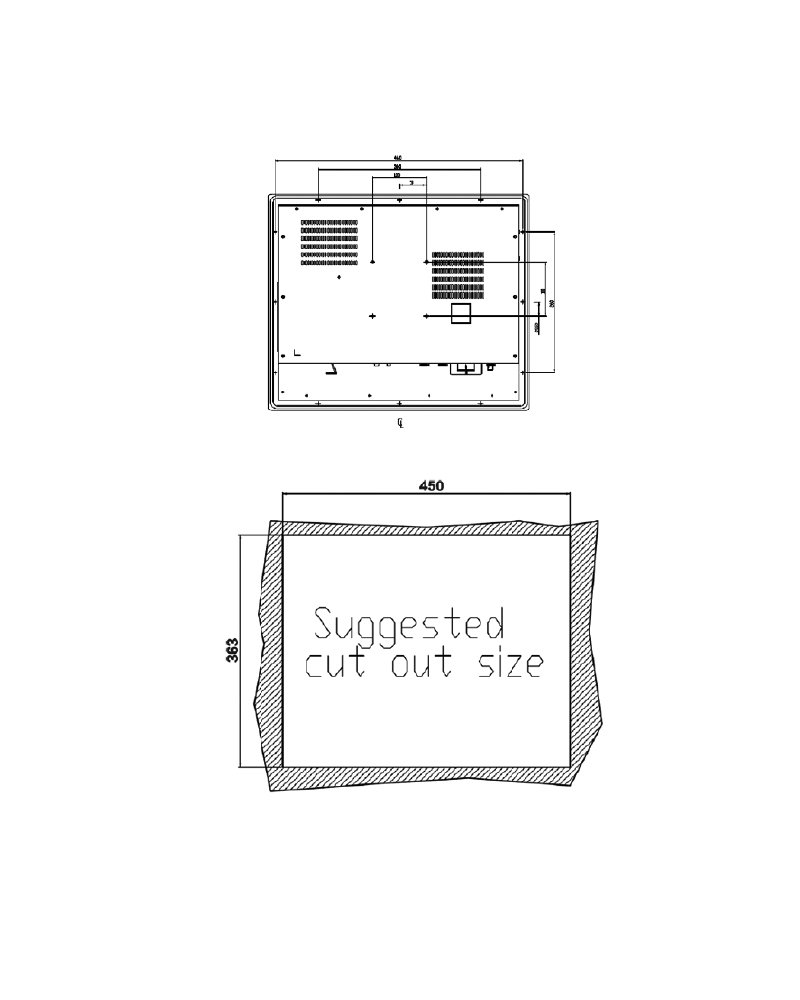

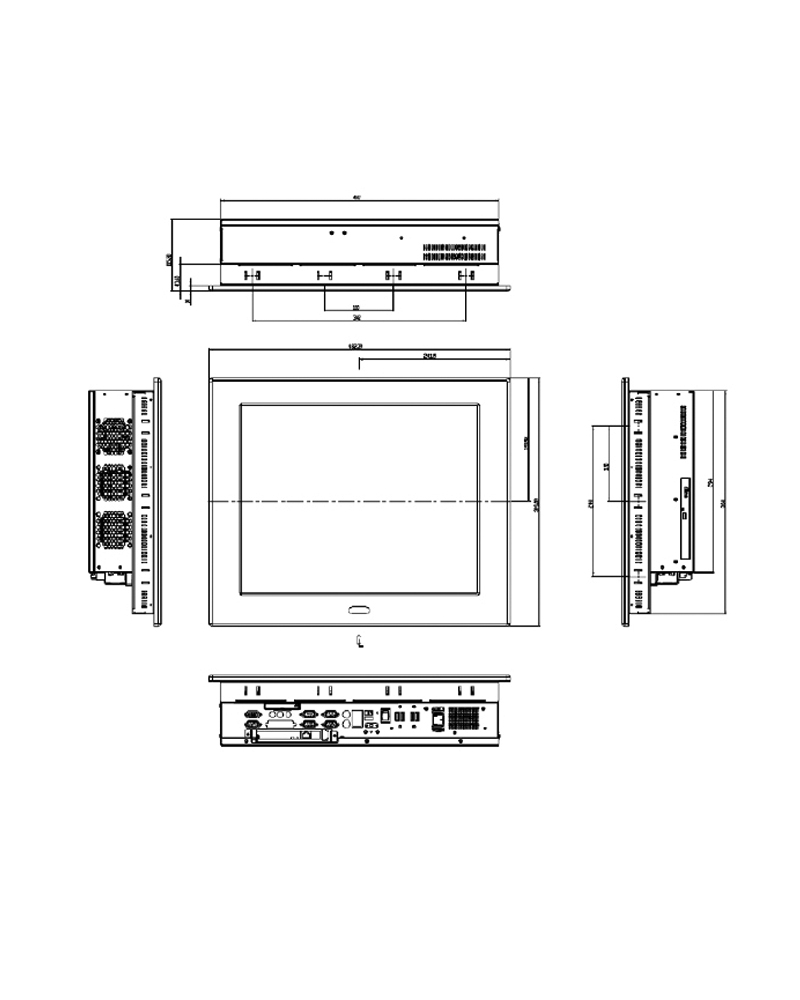

PC5192-dim-1.jpg PC5192-dim-2.jpg

PC 5192:
Panel PC 5192, 19" LCD panel w/ resistive-type touch screen, Dual Core 1.8GHz, 1GB memory, DVD, beige color

Price starts from: $1,790.00


Document
Description
Download Link
file iconPC_5192-data.pdf
Data Sheet
file iconPC_5192-dim.pdf
Dimension
file iconPC_5192-inst.pdf
Installation Guide
file iconPC_5192-um.pdf
User Manual
  • PC5192
    Panel PC Dual Core embedded computer
    19" 1280 x 1024 touch screen
    IP65 rated aluminum front bezel
    1 x PCI expansion slot
    Panel / wall mount ready
    Starting at:
    $1,790.00
PC5192
$1,790.00

LCD Panel and Touch Screen:
  The 19-inch 1280 x 1024 LCD panel is an active type digital to digital which connects to the onboard video. It comes with a standard 15-pin VGA connector on the back of the panel PC for the external display. The resistive type touch screen is mounted on the front of the LCD panel and uses a 5-wire connection to the on-board COM port (standard on COM-3). The touch screen provides protection for the LCD panel and is sealed around the front panel housing to prevent water and dust (NEMA 4/12 rated) from entering.

On Board System Board:
  The embedded system board (Intel 945G chip-set, Socket 775, Dual Core 1.8GHz, up to 2.5GHz) comes with the features of a standard motherboard and the additional functions for industrial applications. It accepts DDR2 667/800 memory (2 x memory sockets up to 4.0GB), 5 RS-232 ports (1 for RS-232/422/485) and on board Dual Gigabyte LAN/ HD Audio. The small size of the board allows it to be mounted into the slim-type panel pc housing.

Storage Device :
 The system comes standard with a 2.5" SATA HDD with anti-shock device (80GB std, up to 200GB), slim-type DVD. It also comes with a Compact-flash type-II socket (up to 16GB) for the Windows CE/XP embedded application.

Expansion:
We provide 1 x PCI-32 expansion slot and 1 x PCIe mini card for your hardware applications, The riser board is built in the computer board and provides the 1 PCI-32 or PCIEx4 expansion slot on the back of the panel PC.

Power Supply:
The 180W 110/220VAC 50/60Hz auto-switch ATX power module is integrated into the panel pc.

Mounting:
Panel pc can be wall mounted or panel mounted (mounting kits come with panel pc). It also comes with standard VESA mounting holes on the back of the panel pc. Option: 19" rack mount kit.
