Stainless steel panel PC with a 27 inch 1920 x 1080 300-nit LCD display, IP67/69K rated anti-corrosion stainless steel enclosure, Celeron N2930 1.83GHz CPU, capacitive type touch screen, and 110/240VAC power input. Option for high brightness display, optical bonding, WiFi & Bluetooth module, and DC power input.
24

PCH8240

10.1

PCH8010

PCH8270

  • Full IP67/69K rated rugged stainless steel enclosure
  • 27 inch 1920 x 1080 LED backlight LCD monitor
  • Capacitive type touch screen
  • Intel Celeron N2930 1.83GHz processor
  • Option for Core i5 5200U/Core i7 6600U
  • 2 x USB + 1 x LAN + 1 x COM port
  • 110/240VAC power input, option for DC power input
  • Extended working temperature -10°C to 55°C
$2,767.00
Availability: In stock
SKU
PCH8270

27" 1920 x 1080 stainless steel panel PC with an IP67/69K rated stainless steel enclosure, Celeron N2930 1.83GHz CPU, capacitive type touch screen, and AC power input.

Material
SUS316 stainless steel
IP67/69K rated anti-corrosion stainless steel
LCD panel
Size: 27 inch
Max Resolution: 1920 x 1080
Brightness (cd/m²): 300
Contrast Ratio (typ.): 3000:1
Viewing Angle (H/V): -89~89 (H); -89~89 (V)
Colors: 16.7M
Option for high brightness / optical bonding
Touch screen
Capacitive-type touch screen
System
CPU: Celeron N2930 1.83GHz (std)
Option for Core i5 5200 / Core i7 6700
Memory: 1 x 4GB DDR3 SO-DIMM (Max.8GB)
Storage: 1 x 128GB SSD (Max.250GB)
Ethernet: 1 x Gigabit LAN
Option for WiFi and Bluetooth module
Connectors - C16 / IP Rated
Serial Ports: 1 x RS232 (IP67)
USB Ports: 2 x USB (IP67)
Ethernet: 1 x RJ45 GbE LAN (IP67)
Power: 1 x AC Input (IP66)
IP66 rated 6ft extended cables included for each I/O
Power Supply
110/240VAC power input
Power Consumption: 55W (typ)
Option for 9 to 36V DC input
Weight
30.86 lb / 14 kg

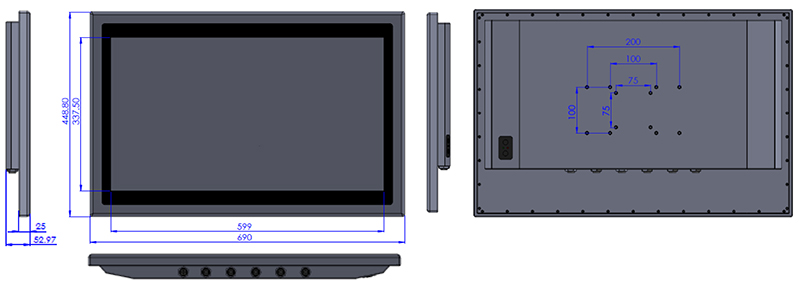

Dimension
27.17”(W) x 2.08”(D) x 17.67”(H)
Mounting
VESA mount (75mm / 100mm / 200mm x 100mm)
Option for panel mount with gasket
Environmental
Operating Temperature: -10°C to 55°C (14°F to 131°F)
Relative Humidity: 10% to 95%, non-condensing
IP Rating
Full-IP67/69K rated protection

PCH8270:
27 inch 1920 x 1080 300-nit LCD monitor, full IP67/69K rated stainless enclosure, Celeron N2930 1.83GHz CPU, capacitive type touch screen, 2 x USB + 1 x LAN + 1 x COM, 6ft cables included for each I/O, 110/240VAC power input.
Lead Time: 6 to 8 weeks

Document
Description
Download Link
file iconPCH8270-SP(V1-2).pdf
Spec Sheet
file iconPCH8XXX-UM(V1-2).pdf
User Manual
