Military-grade panel PC with a 15 inch 1024 x 768 1000-nit high brightness LCD monitor and a fully IP65 rated rugged enclosure with MIL-STD-810G compliance and -20°C to 60°C wide range working temperature. The PC is powered by the 6th generation Intel Core i5-6200U 2.3GHz CPU with 8GB memory and 125GB SSD. Option for stereo speakers, optical bonding, front IP rated USB ports, GPS module, and external AC power adapter.
10

PCM8210

15

PCM8315

PCM8215

  • Fully IP65 rated rugged enclosure
  • 15 inch 1024 x 768 LED backlight monitor
  • 5-wire resistive type touch screen monitor
  • 1000-nit high brightness LCD panel
  • 6th generation Core i5-6200U 2.3GHz CPU
  • 1 x HDMI output, 1 x GbE LAN, 2 x COM, 2 x USB 2.0
  • MIL-STD-810G -20°C to 60°C wide range working temperature
  • 9~36V DC isolated DC power input, option for AC power adapter
$3,865.00
Availability: In stock
SKU
PCM8215
Military-grade panel PC with 15" 1024 x 768 1000-nit high brightness LCD touchscreen, Intel Core i5-6200U 2.3GHz CPU, fanless design, fully sealed IP65 rated rugged enclosure, and MIL-STD-810G testing standards.
Material
Fully IP65 rated rugged enclosure
LCD panel
Size: 15 inch
Max. Resolution: 1024 x 768
Brightness (cd/m²): 1000
Contrast Ratio (typ.): 700:1
Viewing Angle (H/V): 160° x 140°
Backlight: LED
Colors: 16.2M (8 bits/color)
Touch screen
5-wire resistive type touch screen monitor
System
CPU: 6th generation Core i5-6200U 2.3GHz
Chipset: SoC Intergated
Memory: DDR3L 1600MHz SO-DIMM 8GB, up to 16GB
Storage: 1 x 2.5"SSD or 1 x mSATA SSD
Graphics: Intel HD Graphics 520
Graphic Memory: 1.70GB
Ethernet
Intel i210 Ethernet Controller
Intel i219 Ethernet Connection
Video Port
HDMI video output
Speaker (Option)
2 x 2W speakers
GPS Module (Option)
1 x GPS module
Optical Bonding (Option)
Optical Bonding
Connectors
2 x USB 2.0
1 x GbE LAN
1 x RS-232
1 x RS-422
1 x 9~36V DC input
2 x 2W speakers (optional)
2 x front IP67 USB ports (optional)
System Indicator
1 x Power LED, 1 x HDD LED
FN Key
On/Off, Reset, Brightness H/L, 3 x programmable FN keys
IP66 Latch Door
1 x For SIM card accessible
Power supply
9 to 36V DC power input
Option for external AC power adapter
Mounting
VESA or flush mount
Weight
19.84 lb / 9 kg

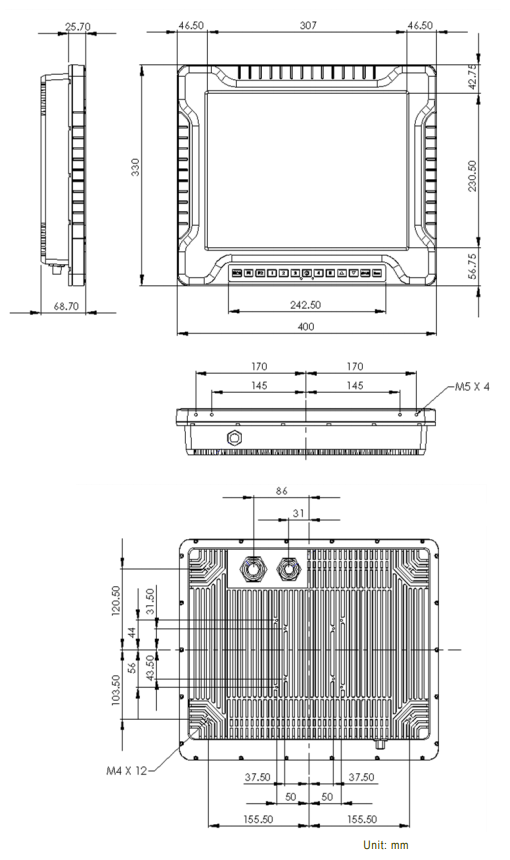

Dimension
15.75"(W) x 2.70"(D) x 12.99"(H)
Environmental
Operating Temperature: -20°C to 60°C
Storage Temperature: -30°C to 70°C
Relative Humidity: 10~95%, non-condensing
Vibration: MIL-STD-810G Method 514.6C-3
Shock: MIL-STD-810G Method 516.6
Humidity: MIL-STD-810G Method 507.5-7
EMC: MIL-STD-461E (RE102, CE102)

PCM8215:
15 inch 1024 x 768 1000-nit high brightness LCD panel PC, 6th generation Intel Core i5-6200U 2.3GHz CPU, 8GB DDR3L memory, 128GB SSD, Resistive type touch screen, 9 to 36VDC power input, fully IP65 rated rugged enclosure, MIL-STD-810G compliance.

Document
Description
Download Link
file iconPCM8215-SP.pdf
Spec Sheet
file iconPCM8215-PIN.pdf
Pin Assignment
