The PC9156 is a 15.6" fanless panel PC featuring an aluminum die-casting chassis with IP66 rated waterproof flat front bezel for harsh working environments, such as manufacturing systems or the factory floor. Powered by the Intel Celeron N2930 CPU or 6th Gen. Intel Core i3 CPU with the Soc Chipset, this panel PC is a low-power, cost-effective solution ideal for many industrial applications. The panel PC features a Resistive type touchscreen, multiple I/O ports, and a 9 to 36V DC power input. Option for PCAP touchscreen / 1000-nit high brightness display / optical bonding, mini PCIe slot, external AC power adapter, and Windows OS.
Loading...
15

PC9150B

15.6

PC9156A

PC9156

  • 15.6 inch 1366 x 768 300-nit industrial LCD panel
  • Die-cast aluminum bezel with IP66 rated waterproof front bezel
  • Intel Celeron N2930 CPU / 6th generation Intel Core i3-6100 CPU
  • 2 x USB 3.0, 1 x RS-232/422/485, 1 x RS-232, 1 x Audio, 2 x GbE LAN
  • Resistive type touch screen, option for Projected Capacitive touch screen
  • Option for 1000-nit high brightness display or optical bonding
  • Option for additional I/O ports and mini PCIe slot full size
  • Wide range 9 to 36V DC power input
In stock
SKU
PC9156
Email
15.6" 1366 x 768 industrial HMI computer with Celeron N2930 / 6th gen. Core i3-6100 CPU, 4GB DDR3L memory, SATA MO-297 SSD bay, and an aluminum die-casting chassis.
Material
Solid aluminum die-casting chassis
IP66 compliant front panel
LCD Panel
Size: 15.6 inch TFT LCD
Resolution: 1366 x 768
Brightness (cd/m²): 300
Contrast Ratio (typ.): 500:1
Viewing Angle (H/V): 160° x 160°
Color: 16.7M
MTBF (hrs): 50,000
Touch Screen
Resistive type touch screen
Light Transmission: 80%
Interface: USB
Projected Capacitive type touch screen (option)
Light Tansmission: 90%
Interface: USB
System
CPU: Celeron N2930 1.83GHz / 6th generation Core i3-6100 CPU
Memory Slot: Onboard 4GB DDR3L 1333MHz
System Chipset: SoC
Storage
1 x SATA MO-297 SSD bay
Expansion Slot
1 x internal mini-PCIe slot full size
Connector
2 x USB 3.0 type A
1 x DB-9 RS-232/422/485, COM1 (Default RS-232)
1 x RS-232 DB-9, COM2
1 x Audio Line Out
2 x GbE LAN RJ-45
1 x 3-pin terminal block for DC power input
1 x 2-pin connector for power on/off button
Option for additional I/O ports
Power Supply
Power Input: 9 to 36V DC power input
Power Consumption: 34W (Max)
Option for external AC power adapter
Mounting
Panel or VESA (100mm) mount
Weight
10.58 lb / 4.8 kg

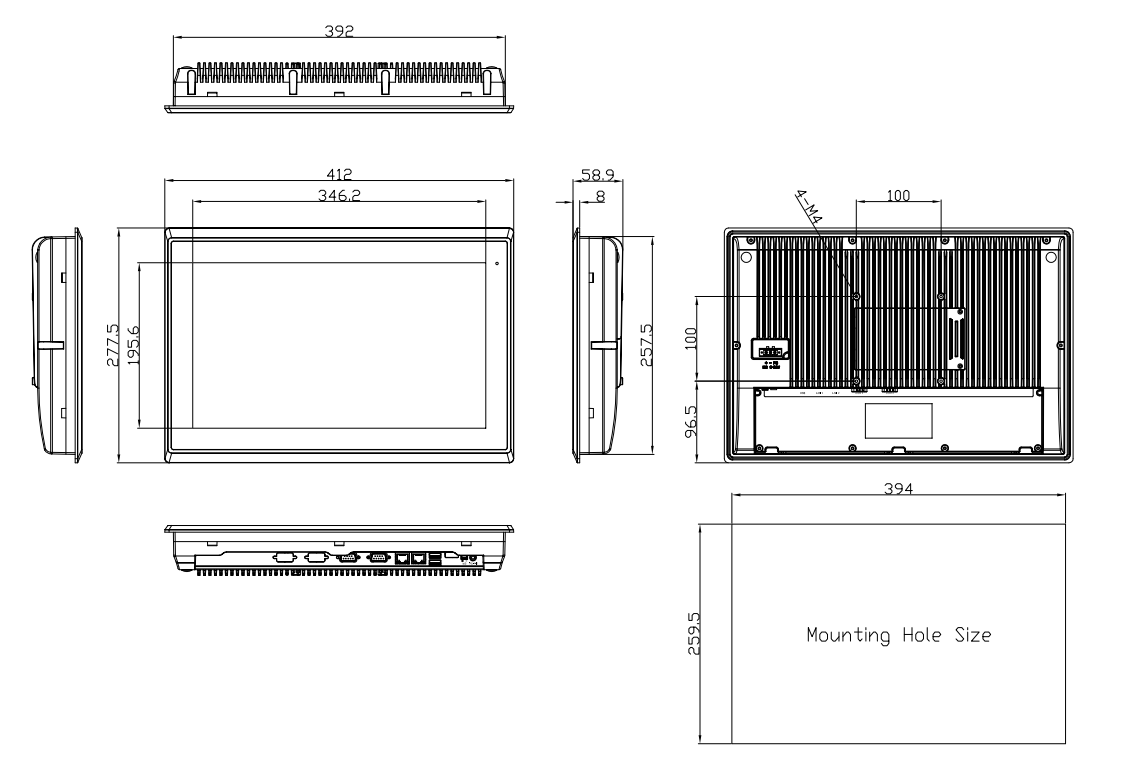

Dimension
16.22"(W) x 2.32"(D) x 10.93"(H)
Environmental
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -30°C to 70°C (-22°F to 158°F)
Relative Humidity: 10 to 90% @40°C, non-condensing
Certification
CE, FCC Class A, UL

PC9156A:
15.6 inch 1366 x 768 fanless touch panel PC, Resistive type touch screen, Intel Celeron N2930 1.83GHz CPU, 4GB DDR3L memory, 9 to 36V DC power input, IP66 rated flat front bezel. Option for PCAP touchscreen / 1000-nit high brightness display / optical bonding, mini PCIe slot, external AC power adapter, and Windows OS.

PC9156B:
15.6 inch 1366 x 768 fanless touch panel PC, Resistive type touch screen, 6th Generation Intel Core i3-6100 CPU, 4GB DDR3L memory, 9 to 36V DC power input, IP66 rated flat front bezel. Option for PCAP touchscreen / 1000-nit high brightness display / optical bonding, mini PCIe slot, external AC power adapter, and Windows OS.

Document
Description
Download Link
file iconPC9156-SP(V1-2).pdf
Spec Sheet
file iconPC9XXX-UM.pdf
User Manual
  • PC9156A
    Celeron N2930 fanless embedded PC
    15.6" 1366 x 768 resistive type touch screen
    Option for projected capacitive type touch screen
    Onboard 4GB DDR3L memory
    1 x SATA MO-297 SSD bay
    IP66 rated flat front bezel
    Aluminum die-casting chassis
    9 to 36V DC power input with option for AC adapter
    Panel / VESA mount ready
    Starting at:
    $1,470.00
  • PC9156B
    6th gen. Core i3 fanless embedded PC
    15.6" 1366 x 768 resistive type touch screen
    Option for projected capacitive type touch screen
    Onboard 4GB DDR3L memory
    1 x SATA MO-297 SSD bay
    IP66 rated flat front bezel
    Aluminum die-casting chassis
    9 to 36V DC power input with option for AC adapter
    Panel / VESA mount ready
    Starting at:
    $1,865.00
PC9156A
PC9156A
$1,470.00
PC9156B
PC9156B
$1,865.00

Loading...Please Wait

PRODUCT DESCRIPTION
PC9156 is a 15.6 inch IP66 rated industrial Panel PC with Celeron N2930 1.83GHz or 4th Generation Core i3 processor, resistive type touch screen with RS-232, SATA MO-297 SSD bay, mini-PCIe slot full size, and Windows 7 / 8 / 10 supported. The panel measures at 15.6 inch, 1366 x 768 resolution, 300nits brightness, and colors of 16.7 million display brilliance graphical images. The touch screen monitor is resistive type, providing high resistance to surface contaminants and liquids like dust, oil, grease, and moisture. It has light transmission at 80% and supports the RS-232 interface. The option for a projected capacitive type touch screen with USB is available. The CPU is of Celeron N2930 1.83GHz for PC9215A or 6th generation Core i3-6100 for PC9215B. The chipset is of SoC with an onboard 4GB DDR-III SODIMM memory providing excellent performance and storage space. The drive bay supports 1 x SATA MO-297 SSD bay. The expansion slot contains a full size internal mini-PCIe slot. The connections include RS-232 DB-9, DB-9 RS-232/422/485, 2 x USB, 2 X Ethernet ports, audio port, 3-pin terminal block for DC power input, 2-pin connector for power on/off button. The system supports Windows 7. The power supply is of 9~36VDC power input with an AC adapter. Built of solid aluminum die-casting chassis, the material is sturdy yet lightweight. Due to aluminum, it provides durability and will keep its shape even in severe weather condition but it is also lightweight. With the die-casting, it is resistant to stress-cracking in presence to various reagents and is not hazardous waste. Working together, they create a protective casing especially with the IP66 design on the flat front panel. The operational temperature tolerates from 32°F to 122°F (0°C ~ 50°C) and storage temperature -22°F to 158°F (-30°C ~ 70°C). The relative humidity can withstand 10~90% @ 40°C, non-condensing. Weighing at 10.58 lbs with dimensions of 16.22" (W) x 10.93"(H) x 2.32"(D), it can be easily mounted via panel or VESA 100 x 100 mm mounting.
