PC9120
- 12.1 inch 800 x 600 450-nit industrial LCD panel
- Die-cast aluminum bezel with IP66 rated waterproof front bezel
- Intel Celeron N2930 CPU / 6th generation Intel Core i3-6100 CPU
- 2 x USB 3.0, 1 x RS-232/422/485, 1 x RS-232, 1 x Audio, 2 x GbE LAN
- Resistive type touch screen, option for Projected Capacitive touch screen
- Option for 1000-nit high brightness display or optical bonding
- Option for -20°C to 60°C wide range working temperature
- Wide range 9 to 36V DC power input
- Material
- Solid aluminum die-casting chassis
IP66 compliant front panel
- LCD Panel
- Size: 12.1 inch TFT LCD
Resolution: 800 x 600
Brightness (cd/m²): 450
Contrast Ratio (typ.): 1500:1
Viewing Angle (H/V): 178° x 178°
Color: 262K
MTBF (hrs): 50,000
- Touch Screen
- Resistive type touch screen
Light Transmission: 80%
Interface: USB
Projected Capacitive type touch screen (option)
Light Transmission: 90%
Interface: USB
- System
- CPU: Intel Celeron N2930 / 6th generation Core i3-6100 CPU
Memory Slot: Onboard 4GB DDR3L-1333MHz
System Chipset: SoC
- Storage
- 1 x SATA MO-297 SSD bay
- Expansion Slot
- 1 x internal mini-PCIe slot full size
- Connectors
- 2 x USB 3.0 type A
1 x DB-9 RS-232/422/485, COM1 (Default RS-232)
1 x RS-232 DB-9, COM2
1 x Audio line out
2 x GbE LAN RJ-45
1 x 3-pin terminal block for DC power input
1 x 2-pin connector for power on/off button
Option for additional I/O ports
- Mounting
- Panel or VESA (100mm) mount
- Power supply
- Power Input: 9 to 36V DC power input
Power Consumption: 32W (Max)
Option for external AC power adapter
- Weight
- 6.39 lb / 2.9 kg

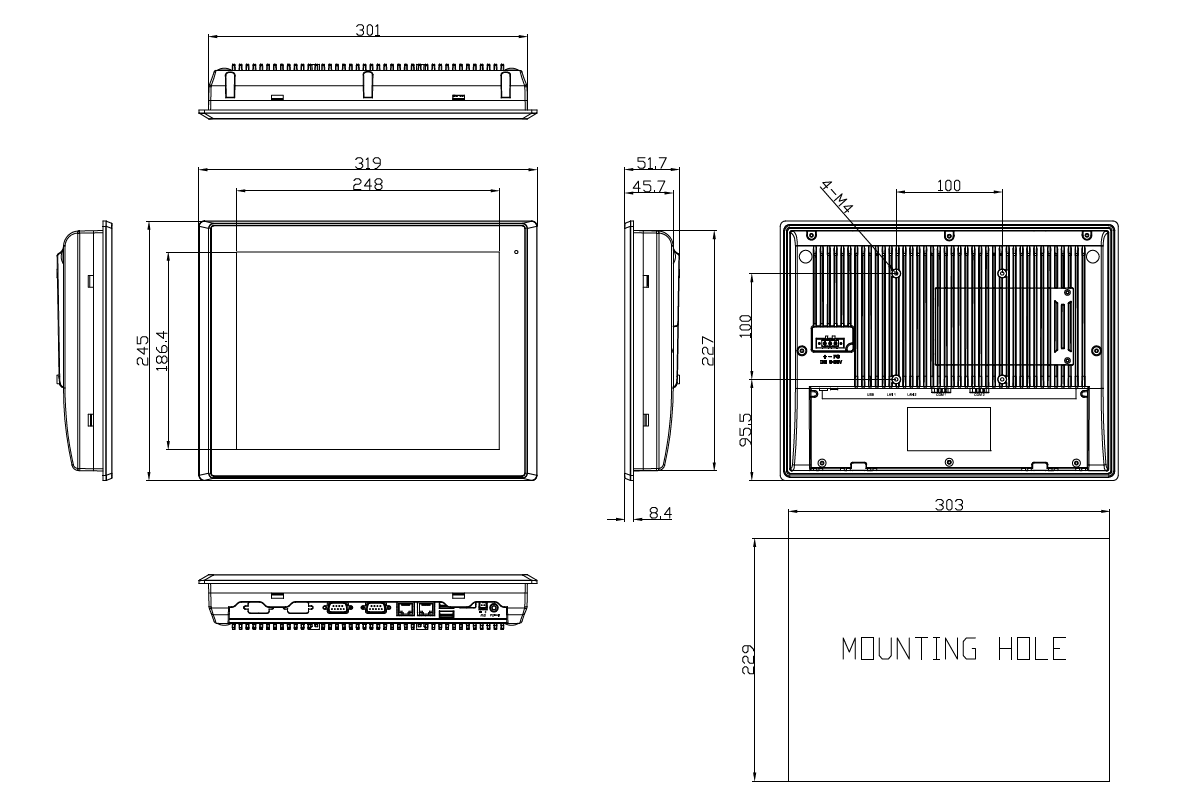

- Dimension
- 12.56"(W) x 2.04"(D) x 9.65"(H)
- Environmental
- Operating Temperature: 0°C to 50°C
Option for -20°C to 60°C wide range working temperature
Storage Temperature: -30°C to 70°C
Relative Humidity: 10 to 90% @ 40°C, non-condensing
- Certification
- CE, FCC Class A, UL
PC9120A:
12.1 inch 800 x 600 fanless industrial panel PC, Intel Celeron 2930 1.83GHz CPU, onboard 4GB DDR3L memory, Resistive type touch screen, 9 to 36V DC power input, IP66 rated flat front panel. Option for PCAP type touchscreen / 1000-nit high brightness display / optical bonding, mini PCIe slot, external AC power adapter, -20°C to 60°C wide operating temperature, and Windows OS.
PC9120B:
12.1 inch 800 x 600 fanless industrial panel PC, 6th generation Intel Core i3-6100 CPU, onboard 4GB DDR3L memory, Resistive type touch screen, 9 to 36V DC power input, IP66 rated flat front panel. Option for PCAP type touchscreen / 1000-nit high brightness display / optical bonding, mini PCIe slot, external AC power adapter, -20°C to 60°C wide operating temperature, and Windows OS.
PC9120-SP(V1-2).pdfPC9XXX-UM.pdf
