Panel mount monitor with a 27 inch 1920 x 1080 full HD industrial LCD monitor, full-IP66 rated anti-corrosion stainless steel enclosure, P-cap multi-touch screen monitor, and 110/240VAC power input. Option for 1000-nit high brightness display, optical bonding, DVI/HDMI video input, resistive type touch screen, and 9 to 36V DC power input.
24

PMN80240

PMN80270

  • Full IP66 anti-corrosion stainless steel housing
  • 27 inch 1920 x 1080 Full HD industrial LCD monitor
  • Option for 1000-nit high brightness display or optical bonding
  • VGA video input, option for DVI or HDMI (IP66 rated connectors)
  • PCAP multi-touch screen, option for Resistive touch screen
  • 0°C to 55°C wide range working temperature
  • VESA mount (100 x 100mm, 200 x 100mm)
  • 110/240VAC power input, option for 9 to 36V DC power input
$1,971.00
Availability: In stock
SKU
PMN80270

27" 1920 x 1080 Full HD panel mount LCD monitor with VGA video input, PCAP multi-touch screen display, IP66 rated stainless steel enclosure, and 110/240VAC power input.

Material
Stainless steel SUS316
Anti-corrosion stainless steel housing
LCD Panel
Size: 27 inch
Max Resolution: 1920 x 1080
Brightness (cd/m²): 300
Contrast Ratio (typ.): 3000:1
Viewing Angle: -89 ~ 89(H); -89 ~ 89(V)
Active Area (mm): 597.6(H) x 336.15(V)
Pixel Pitch (mm): 0.31125(H)x 0.31125(V)
Colors: 16.7M
Option for 1000-nit high brightness
Option for optical bonding
Video Input
VGA video input
Option for DVI or HDMI input
Touch Screen
PCAP multi-touch screen monitor
Option for Resistive type touch screen
OSD
OSD Input: 5-key OSD buttons
OSD Function: Contrast, Color, Position, Auto Adjustment, Factory Settings
Power Supply
Power Input: AC 110~240V, Universal, ±10%
Power Consumption: 40W (typ.)
Option for 9 to 36V DC power input
Connectors
1 x VGA (IP66 connector)
1 x DVI (Optional, IP66 connector)
1 x HDMI (Optional, IP66 connector)
1 x USB for touch screen (IP66 connector)
1 x AC input (IP66 connector)
Cables
6ft IP66 rated cables for touch screen, video input, and power
Weight
TBD

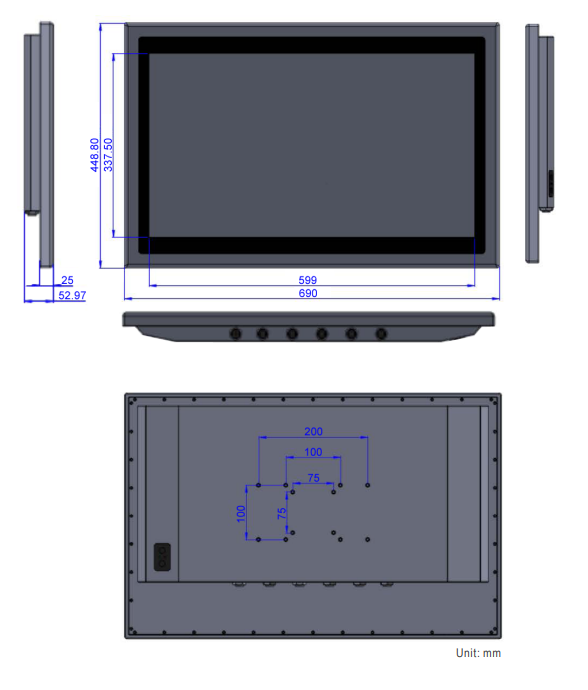

Dimension
27.17"(W) x 17.67"(H) x 2.09"(D)
Mounting
VESA mount (100 x 100mm, 200 x 100mm)
Environmental
Operating Temperature: 0°C to 55°C
Relative Humidity: 10% to 95%, noncondensing
IP Grade: Full-IP66

PMN80270:
27 inch 1920 x 1080 Full HD industrial LCD monitor, VGA video input, PCAP multi-touch screen, 110/220VAC power input, full IP66 anti-corrosion stainless steel housing. Option for 1000-nit high brightness or optical bonding, Resistive type touch screen, DVI or HDMI input, and 9 to 36V DC power input.

Document
Description
Download Link
file iconPMN80270-SP(V1-2).pdf
Spec Sheet
