Panel mount monitor comes with a 18.5 inch 1920 x 1080 350-nit Full HD industrial LCD panel, P-cap multi touch screen, VGA video input, and an IP66 rated anti-corrosion stainless steel housing. Option for a 1000-nit high brightness display, resistive type touch screen, DVI / HDMI video input, and DC power input.
17

PMN80170

24

PMN80240

PMN80180

  • Anti-corrosion stainless steel housing
  • Full IP66 rated rugged enclosure
  • 18.5 1920 x 1080 350-nit LCD monitor
  • Option for 1000-nit high brightness display
  • VGA video input, option for DVI / HDMI
  • P-cap multi touch screen with USB
  • Option for resistive type touch screen
  • 110/240VAC power input
$1,455.00
Availability: In stock
SKU
PMN80180
18.5 inch 1920 x 1080 Full HD LCD panel mount monitor with a fully IP66 rated anti-corrosion stainless steel housing, VGA video input, and P-cap multi-touch screen.
Material
Stainless Steel SUS316
Anti-corrosion stainless steel housing
LCD Panel
Size: 18.5 inch
Resolution: 1920 x 1080
Brightness (cd/m²): 350
Contrast Ratio (typ.): 1000:1
Viewing Angle (H/V):178° x 178°
Colors: 16.7M (6-bit)
Option for 1000-nit high brightness display
Option for optical bonding
Video Input
VGA video input
Option for DVI or HDMI
Touch Screen
P-cap multi-touch screen monitor - USB
Option for 5-wire resistive type touch screen - USB
OSD
OSD Input: 5-key OSD buttons
OSD Function: Contrast, Color, Position, Auto-adjustment, and Factory Settings
Power Supply
110 to 240VAC power input
Consumption: 30W (typ.)
Option for wide range DC power input
Connectors
1 x VGA
1 x USB for touch screen
1 x 110~240VAC power input
Cables
IP66 rated cables for touch screen, video input, and power

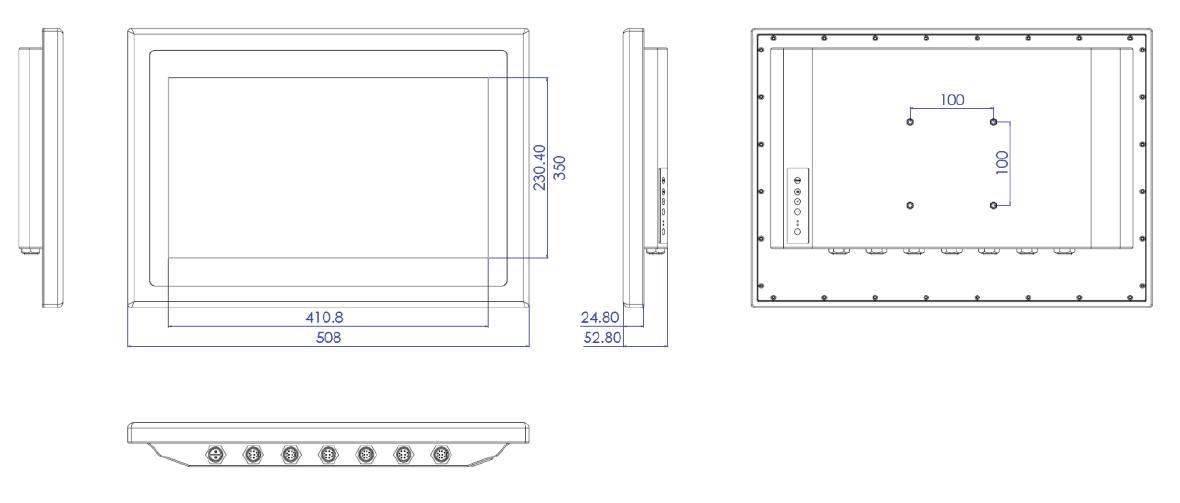

Dimension
20(W) x 13.8"(H) x 2.1"(D)
Mounting
VESA mount (100mm)
Environmental
Operating Temperature: -10° to 55°C degrees
Relative Humidity: 10~95%, non-condensing
IP Protection
Full IP66 rated protection

PMN80180:
18.5 inch 1920 x 1080 350-nit brightness LCD panel, full IP66 rated anti-corrosion stainless steel housing, P-cap multi-touch screen monitor, VGA video input, and 110/240VAC power input. Option for 1000-nit high brightness display, DVI /HDMI video input, and optical bonding.

Document
Description
Download Link
file iconPMN80180-SP.pdf
Spec Sheet (Coming Soon)
