The APH8172 is a 17.3" high brightness sunlight readable monitor supporting 1920 x 1080 FHD resolution, 1000-nits high brightness display, and VGA + HDMI(no speaker) video input. Designed to meet professional and industrial demands, the display features an aluminum front bezel, a sunlight-readable display, improved energy efficiency, and a fanless architecture that provides around-the-clock operation. The APH8172 is equipped with a variety of optional features and modules including IP65 rated front bezel, touch screen technology (Resistive or Projected Capacitive touch screen), auto or manual dimming, additional video signals, MCS multi-screen control, and DC power input.

10.4

APH8104X

APH8172

  • 17.3" FHD high brightness industrial LCD monitor
  • Supports 1920 x 1080 native resolution
  • 1000-nits high brightness sunlight readable display
  • VGA + HDMI(no speaker) video input
  • Option for 3G-SDI, or MCS control
  • Option for Resistive or Projected Capacitive touch screen - USB
  • VESA (100 x 100mm) mount ready
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
$1,892.00
Availability: In stock
SKU
APH8172

17.3" sunlight readable display with 1920 x 1080 Full HD resolution, VGA + HDMI(no speaker) input, panel or VESA (100mm) mount, 100/240VAC power input, and an aluminum front bezel.

Material
8mm aluminum front bezel
Rear rugged heavy-duty metal construction
Option for IP65/NEMA4 rated front bezel
LCD Panel
Size: 17.3 inch
Native Resolution: 1920 x 1080
Brightness (cd/m²): 1000
Contrast Ratio (typ.): 600:1
Colors: 16.7 M, 6-bit
Viewing Angle (H/V): 160° x 140°
Response Time (ms): 40
Dot Pitch (mm): 0.1989
Display Area (mm): 381.888H x 214.812V
Surface Treatment: Hard-coating
Surface Hardness: 3H
Backlight Type: LED
MTBF (hrs): 50,000
Video Input
Standard: VGA + HDMI(no speaker)
Option: 3G-SDI input, or MCS multi-display control
Touch screen (Option)
Resistive 1-pt touch screen - USB port
Projected Capacitive 10-pt touch screen - USB port
Lockable USB connector
Dimming (Option)
Auto dimming or Dimming switch with IP54 protection
Rear panel control
Power on/off switch
OSD membrane switch
Mounting Type
VESA (100 x 100mm) mount
Cable
1 x 6ft VGA cable included
1 x Power adapter
1 x Power cord
Power supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption: Max. 39W, Standby 2W
Option for 12V / 24V / 48V / 125V DC power input
Weight
11.4 lb / 5.2 kg

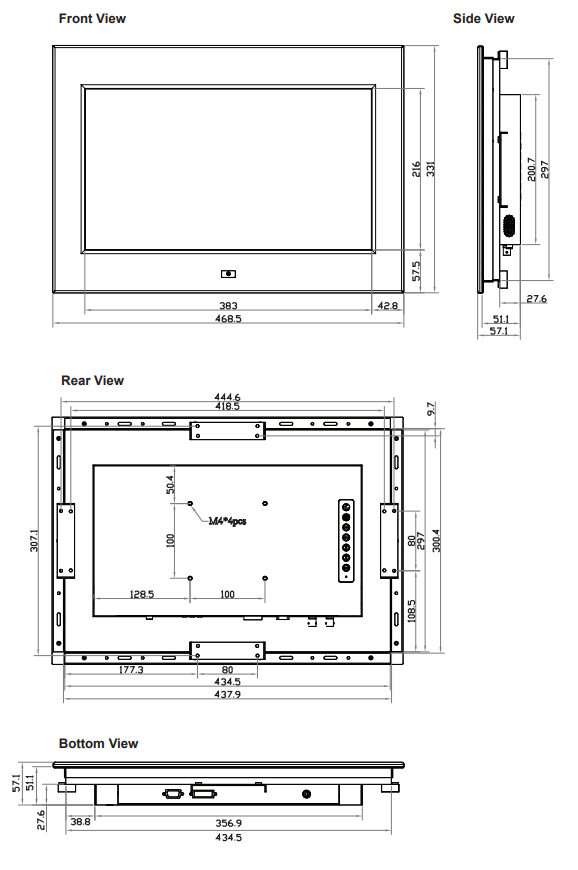

Dimension
18.4"(W) x 2.2"(D) x 13"(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA Compliant

APH8172:
17.3" high brightness panel mount LCD monitor, 1920 x 1080 native resolution, 1000-nits high brightness panel, VGA + HDMI(no speaker)video input, VESA (100 x 100mm) mount, 100/240VAC power input, aluminum front bezel, Black color.

Document
Description
Download Link
file iconAPH8172-SP.pdf
Spec Sheet
file iconAPH8172-UM.pdf
User Manual
file iconMCS-UM.pdf
MCS User Manual
