The APH8070 is a 7-inch industrial monitor supporting 800 x 480 resolution, 1000-nits high brightness display, VGA + HDMI(no speaker) video input, IP65 rated rugged metal front bezel, -20°C to 60C wide range working temperature, and 12V DC power input. Option for Resistive or Capacitive touch screen, S-Video + Composite or HDMI, and external AC power adapter.

18.5

APH8185

10.4

APH8104X

APH8070

  • 7" high brightness industrial LCD monitor
  • Supports 800 x 480 native resolution
  • 1000-nits high brightness sunlight readable display
  • VGA + HDMI(no speaker) video input
  • Panel or VESA (75 x 75mm) mount ready
  • IP65 dust & water resistant aluminum front bezel
  • -20°C to 60°C wide range working temperature
  • 12V DC power input, option for ext AC power adapter
$625.00
Availability: In stock
SKU
APH8070

7" 800 x 480 1000-nit panel mount LCD monitor with VGA + HDMI(no speaker) video input, IP65 rated front bezel, -20° to 60°C wide range working temperature, and 12V DC power input.

Material
IP65 rated rugged metal front bezel
LCD Panel
Size: 7 inch
Max Resolution: 800 x 480
Brightness (cd/m²): 1000
Contrast Ratio (typ.): 500:1
Viewing Angle (H/V): 160° x 160°
Active Area (mm): 132.48 X 99.36
Pixel Pitch (mm): 0.207 X 0.207
Colors: 16.2M, 8 bits color
Backlight: LED
LCD Protection
AR glass protection (AR glass will be removed if touch screen option is selected)
Touch screen (Option)
Resistive or Capacitive type touch screen - RS-232
Light Sensor (By Request)
Auto dimming light sensor (light sensor at front bezel) - By request only
Video input
VGA + HDMI(no speaker) video input
Option for S-Video + Composite
Rear Panel Control
Power on/off switch
5-key OSD buttons
OSD menu control
OSD functions for Contrast, Color, Position, Auto-adjustment, Factory Settings
Mounting Type
Panel mount or VESA (75 x 75mm) mount
Connectors
1 x VGA D-Sub 15 pin
1 x HDMI(no speaker) input
1 x S-Video, Composite (Option)
1 x RS232 for touch screen (Option)
1 x 12V DC power input
Power supply
Power Input: 12V DC power input
Consumption: 15W typical, normal operation
Option for external AC power adapter
Weight
TBD

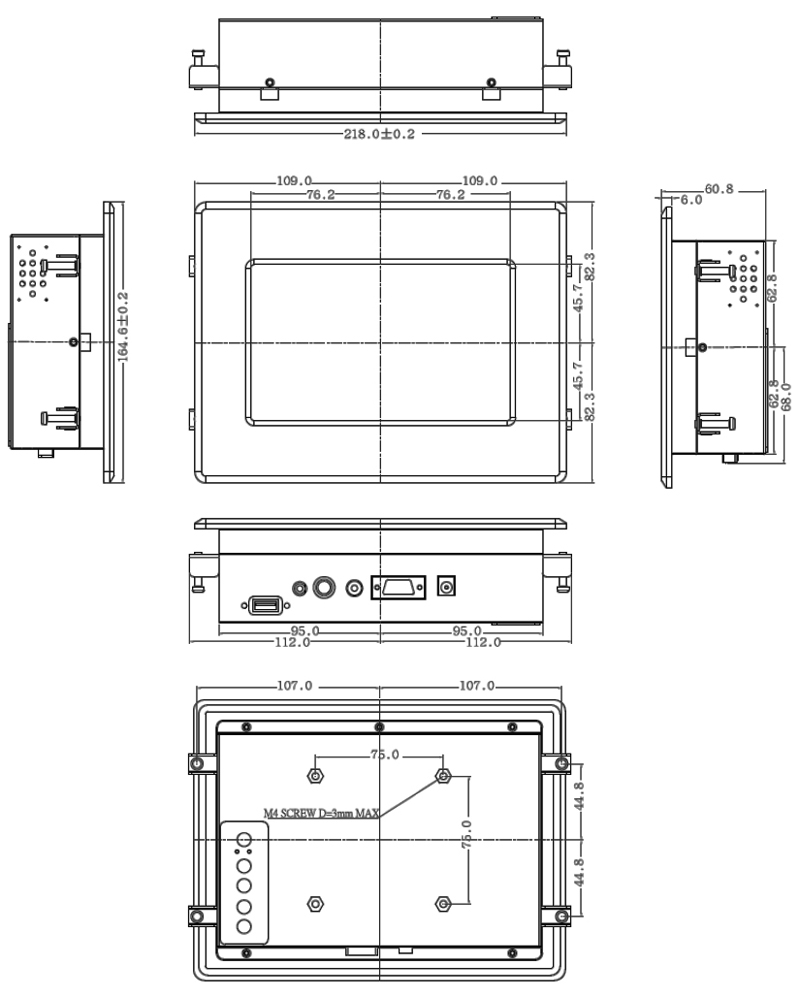

Dimension
8.58"(W) x 6.48"(H) x 2.39"(D)
Environmental
Operating Temperature: -20°C to 60°C (-4°F to 140°F)
Storage Temperature: -30°C to 80°C (-22°F to 176°F)

APH8070:
7" sunlight readable LCD display, 1000-nits high brightness, 800 x 480 resolution, VGA + HDMI(no speaker) video input, -20°C to 60°C wide range working temperature, 12V DC power input, Black color.

Document
Description
Download Link
file iconAPH8070-SP.pdf
Spec Sheet
