Rackmount console drawer with a 20.1 inch 1600 x 1200 industrial LCD panel, VGA video input, 104-key keyboard with touchpad, and a 1U high 25.6 inch depth rackmount drawer. Option for DVI-D / BNC / HDMI / Audio / SDI input and DC power supply.
1U 21.5

KD8121

KD8220

  • 1U high 25.6 inch depth rackmount drawer
  • 20.1 inch 1600 x 1200 industrial LCD monitor
  • Front OSD (On Screen Display) function
  • VGA video input
  • Option for DVI-D, BNC, S-Video input
  • 104-key keyboard with touchpad
  • External 100/240 auto-sensing AC power adapter
  • Option for 12V / 24V / 48V / 125V / 250V DC power supply
$1,645.00
Availability: In stock
SKU
KD8220
20.1" 1600 x 1200 rack LCD console with VGA video input and 104-key keyboard with touchpad in a 1U high 25.6" depth rackmount drawer with pullout sliding rail.
Material
Heavy-duty steel
LCD Panel
Size: 20.1 inch
Max Resolution: 1600 x 1200
Brightness (cd/m²): 300
Contrast Ratio (typ.): 800:1
Viewing Angle (H/V): 178° x 178°
Active Area (mm): 408H x 306V
Colors: 16.7M
Blacklight: CCFL
MTBF (hrs): 45,000
Keyboard & Pointing Device
104-key keyboard with 2-button mechanical mouse & numerical key (combo free)
3-button membrane touchpad
Video Input
VGA video input (std)
Option for DVI-D, BNC, HDMI, Audio, or SDI input
Front Panel Control
Power on/off switch
OSD (On Screen Display)
Connector
1 x D-sub 15-pin proprietary KVM port
Cable
1 x proprietary 4-in-1 KVM cable
Drawer security
Plastic molded front handle with 2-position lock
Power Supply
Auto-sensing 100 to 240VAC, 50 / 60Hz power adapter
Consumption: Max. 45W, Standby 2W
Option for 12V / 24V / 48V / 125V / 250VDC power supply
Support Platform
Dos, Windows (3.1, 9x, 2000, NT4, ME, XP, 2003 Server) Linux,
Novell 3.12-6, HP UX, SUN
Compatibility
Multi-platform: Support PS/2, SUN and USB
Color
Black
Weight
31.9 lb / 14.5 kg

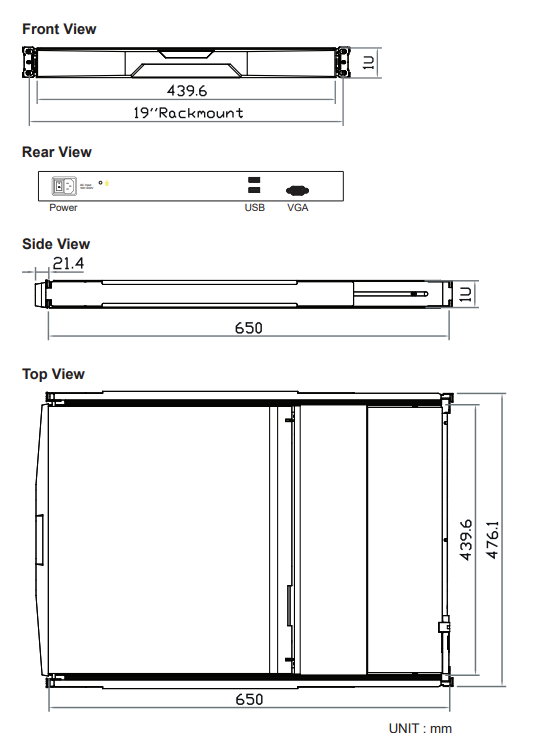

Dimension
17.4"(W) x 1.73”(H) x 25.6"(D)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Safety
CE, FCC, RoHS

KD8220:
20.1 inch 1600 x 1200 industrial LCD panel, VGA video input, 104-key keyboard with touchpad, 1U high 25.6 inch depth rackmount drawer, Black color. Option for DVI-D / BNC / HDMI / Audio / SDI input and DC power supply.

Document
Description
Download Link
file iconKD8220-SP.pdf
Spec Sheet
file iconKD8220-INST.pdf
Installation Guide
file iconKD8220-UM.pdf
User Manual
file iconKD8220-TR1032RI.pdf
For Tapped Rail 10-32 Rack Issue
