Rackmount console drawer with a 24.1 inch 1920 x 1200 WUXGA LED backlight LCD panel with VGA + DVI-D video input, 104-key keyboard with touchpad (option for trackball), and a pull-out drawer with slide access design. Option for HDMI / DP / SDI input and DC power supply.
1U 21.5

KD8121

1U 23.8

KD82234

KD8124

  • 1U high 27.6 inch depth low profile rackmount drawer
  • 24.1 inch 1920 x 1200 WUXGA industrial LCD panel
  • Front OSD (On Screen Display) function
  • VGA + DVI-D video input
  • Option for HDMI, DP, or 3G/HD/SD-SDI input
  • 104-key keyboard with touchpad/trackball
  • External 100/240 auto-sensing AC power adapter
  • Option for 12V / 24V / 48V / 125V / 250V DC power supply
$1,705.00
Availability: In stock
SKU
KD8124
24.1" 1600 x 1200 WUXGA LCD monitor with VGA + DVI-D video input, 104-key keyboard with touchpad, and a 1U high pull-out terminal drawer with slide access design.
Material
Heavy-duty steel
LCD Monitor
Size: 24.1 inch
Max Resolution: 1920 x 1200
Brightness (cd/m²): 300
Contrast Ratio (typ.): 1000 : 1
Viewing Angle (H/V): 178° x 178°
Display Area (mm): 518.4H x 324V
Colors: 16.7 M
Backlight: LED
MTBF (hrs): 30,000
Keyboard & Pointing Device
104-key keyboard integrated with touchpad - USB
Option for keyboard with trackball
Video Input
VGA + DVI-D video input
Option for HDMI
Drawer design
Pull-out drawer with side access design (right or left side)
Power Supply
Auto-sensing 100 to 240VAC, 50 / 60Hz power adapter
Consumption: Max. 33W, Standby 2W
Option for 12V / 24V / 48V / 125V / 250VDC power supply
Weight
33.7 lb / 15.3 kg

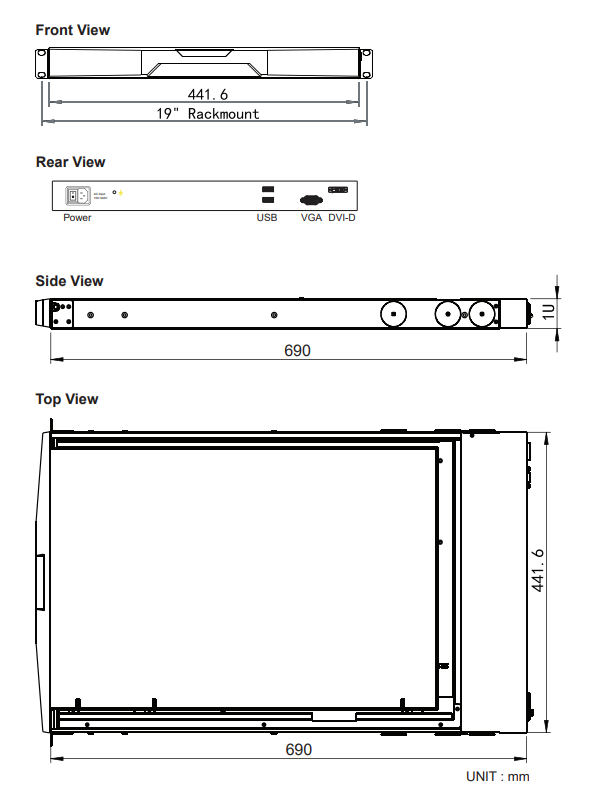

Dimension
17.4"(W) x 27.6"(D) x 1.73"(H)
17.4"(W) x 29.5"(D) x 1.73"(H), with video input or DC power input module
Environmental
Operating Temperature: 0°C to 55°C (32°F to 131°F)
Storage Temperature:-20°C to 60°C (-4°Fto 140°F)
Relative Humidity: 5~90%, non-condensing
Altitude: 16,000ft, operating; 40,000ft, non-operating
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Safety
FCC, CE

KD-8124R:
Rackmount LCD console, 24 inch 1920 x 1200 LED backlight LCD panel, VGA + DVI-D video input, 104-key keyboard with touchpad (USB type), 100/240VAC power adapter, and pull out drawer with right slide access.

KD-8124L:
Rackmount LCD console, 24 inch 1920 x 1200 LED backlight LCD panel, VGA + DVI-D video input, 104-key keyboard with touchpad (USB type), 100/240VAC power adapter, and pull out drawer with left slide access.

Document
Description
Download Link
file iconKD8124-SP.pdf
Spec Sheet
file iconKD8124-UM.pdf
User Manual
