Monitor keyboard drawer integrating a 19 inch 1280 x 1024 industrial LCD monitor with VGA video input and keyboard with optical mouse into a 1U high 27.6 inch depth sliding drawer. Option for a wireless optical mouse, keyboard with trackball, and video input module (DVI/BNC/S-Video/HDMI with speaker).
Loading...
Monitor Keyboard Drawer KDW8190 Front View

KDW8190

KDN9192

  • 1U high 27.6 inch depth rackmount drawer
  • 19 inch 1280 x 1024 industrial LCD monitor
  • OSD (On Screen Display) function
  • VGA video input
  • Option for DVI, BNC, S-Video, HDMI, Audio
  • 104-key keyboard with optical mouse
  • Option for keyboard with wireless optical mouse
  • 100/240VAC power supply, option for DC power input
$895.00
Availability: In stock
SKU
KDN9192
Email
19" 1280 x 1024 rack LCD console with a 104-key keyboard and standard optical mouse and VGA video input in a 1U high 27.6" depth rackmount drawer.
Material
Heavy-duty steel
LCD Monitor
Size: 19 inch
Resolution: 1280 x 1024
Brightness: 250
Contrast Ratio: 1000 : 1
Display Area: 338 x 301mm
Viewing Angle: 160° Horizontal and 160° Vertical
Backlight: CCFL
Colors: 16.7M colors
MTBF: 50,000 hours
Keyboard & Optical Mouse
104-key keyboard integrated with wired optical mouse
Option for wireless optical mouse
Video input
VGA video input (std)
Option video input module:
VGA + DVI, VGA + BNC + S-Video, VGA + Audio with speaker, VGA + HDMI with speaker
Drawer Design
High load-rating slide rail with angle bracket
Extension up to 32” depth
Option for extension bracket up to 36" depth
Cable
1 x 6 feet 4-in-1 proprietary cable for VGA / Keyboard / Optical mouse
Option for 10 feet or 15 feet KVM cable
Power supply
Auto-sensing 100 to 240VAC, 50/60Hz
Max. 48Watt, Standby 5W
Option for DC power input module
Color
Black (RAL 9005)
Weight
48 lb / 21.77 kg

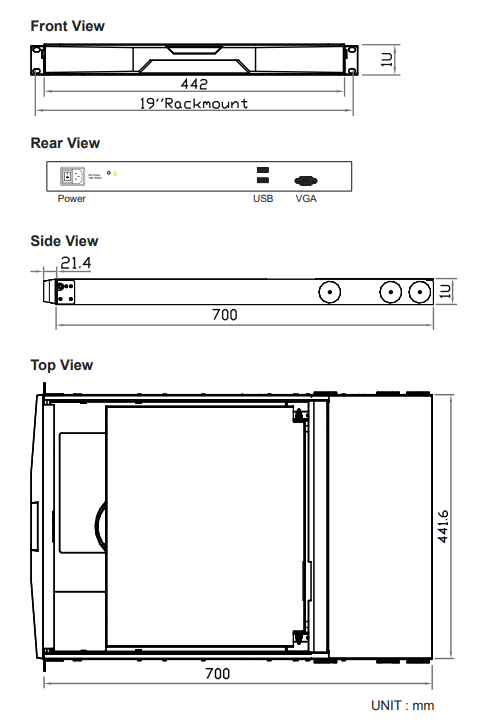

Dimension
17.4"(W) x 27.6"(D) x 1.73 "(H)
Environmental
Operating Temperature: 0ºC to 50ºC
Storage Temperature: -5ºC to 60ºC
Humidity: 5~90%, non-condensing
Shock: 10G acceleration (11ms duration)
Vibration: 5~500Hz 1G RMS random vibration
Safety
FCC, CE

KDN9172
19 inch 1280 x 1024 LCD monitor, VGA video input, keyboard with optical mouse, 1U high & 27.6" depth rackmount terminal, Black color. Option for DVI / BNC / S-Video / HDMI with speaker video input, speaker with audio input, and DC power input.

Document
Description
Download Link
file iconKDN9192-SP.pdf
Spec Sheet
file iconKDN9192-UM.pdf
User Manual
  • KDN9192
    Monitor keyboard drawer
    19 inch 1280 x 1024 industrial LCD monitor
    104-key keyboard & standard optical mouse
    Option for wireless optical mouse
    VGA video input
    Option for DVI, BNC, S-Video, HDMI, Audio input
    110/240VAC power supply, option for DC power supply
    1U high 27.6 inch depth rackmount drawer
    Starting at:
    $895.00
KDN9192
$895.00

PRODUCT DESCRIPTION
KDN 9192 is a sturdy rack console with a monitor and keyboard drawer, with customization features for the video input, power supply, and extension brackets. At 19 inches, the monitor displays an 1280 x 1024 resolution, contrast ratio of 1000:1 and 16.7 million colors on the industrial LCD monitor. The mean time to failures is 50,000 hours, offering an immense amount of time period. With the on-screen display function in front, it is easy to locate and adjust the menu. The keyboard contains 104 keys and comes with an optical mouse for easy control. The casing of the rackmount drawer is made out of heavy-duty steel, promising it to be durable and protective from any working environments. Additionally, it has an anti-shock vibration feature. Therefore, it will be most optimal for places like data centers, server rooms, and any space constraint environments. The drawer design adds a nice touch due to the high load-rating slide rail with an angle bracket, creating easy movements when pulling the drawer in and out. The extension of up to 32 inches also comes in handy when extra length is needed, especially with the option for the 36-inch extension. Measuring at 17.4 in width, 27.6 inches in diameter, and 1.73 inches in height, the compact control terminal will be able to fit into areas where space is restraint. The KDN 9192 offers options for the video input. It has VGA, VGA, and DVI, VGA, BNC and S-Video, VGA and audio with a speaker, or VGA and HDMI with a speaker. The cable is a 6 feet 4-in-1 proprietary cable for VGA, keyboard, and optical mouse. It also has an option for 10 feet or 15 feet KVM cable. The power supply of 110/220 VAC power supply offers a dependable power source and the option for 12, 24, or 48 DC power input also provides stability.

Features
- 1U high 25.6-inch heavy-duty steel rack mount drawer
- 19 inch 1280 x 1024 industrial LCD monitor
- 104-keys keyboard with optical mouse
- VGA video input, option for DVI, BNC, S-Video, HDMI, audio with speaker
- 100/240 VAC power supply, option for 12, 24, or 48 VDC power input
