The MKD6219C is a 19" widescreen rack KVM console with an integrated 8-port Cat6 KVM switch in a 1U high 22.8" (580mm) depth rackmount drawer. The rack console features a 104-key keyboard with touchpad, VGA video input, 1 x local console, and a 100/240VAC power input. Optional upgrades include a MAC or SUN keyboard layout, 16 or 32-port Cat6 KVM switch, remote console or IP user console, and Cat6 KVM dongles.
1U 20.1

MKD6220C

MKD6219C

  • 19" widescreen rack LCD console drawer
  • Supports 1440 x 900 native resolution
  • VGA video input
  • 104-key keyboard with 2-button touchpad - USB
  • Integrated 8-port Cat6 KVM switch, option for 16 or 32 port
  • Local console, option for remote console or IP console
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
  • Option for 12V / 24V / 48V / 125V DC power input
  • 1U high 22.8" (580mm) depth rackmount drawer
$1,731.00
Availability: In stock
SKU
MKD6219C
19" rack KVM console with 1440 x 900 resolution, VGA input, 8-port Cat6 KVM switch, 1 x local console, 104-key keyboard w/ touchpad, and a 1U 22.8" depth rack drawer.
Material
Heavy-duty steel
LCD monitor
Size: 19 inch
Native Resolution: 1440 x 900
Brightness (cd/m²): 250
Contrast Ratio (typ): 1000:1
Colors: 16.7 M
Viewing Angle (H/V): 170° x 160°
Response Time (ms): 5
Dot Pitch (mm): 0.2835
Display Area (mm): 408.24H x 255.15V
Surface Treatment: Anti-glare
Surface Hardness: 3H
Backlight: LED
MTBF (hrs): 30,000
Keyboard & pointing device
104-key keyboard with 2-button touchpad - USB interface
KVM Port
Number of Ports: 8, 16, or 32
Connector: RJ-45
Connectivity: DVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 cable
Local console
Connector: 1 x VGA
Input Device: 2 x USB ports for keyboard & mouse
Remote Console (Option)
Connector: 1 x DB 15-pin VGA port
Input Device: 2 x USB ports for keyboard & mouse
Remote I/O: 1 x RJ-45 port via Cat6 cable up to 150 meters
Receiver Box: 1 x receiver box for remote console
Cable: 1 x 6ft VGA + PS/2 KVM cable for receiver box
IP Remote Console (Option)
Connector: RJ45 Ethernet
User Management: 15-user login, 1 x active user
Network Protocol: DHCP / BOOTP / DNS
Security: TLS 1.3, AES, LDAP, Active Directory (AD), HTTP(s)
Browser: Chrome, Firefox, Edge, etc.
Resolution: 16: 9 - max. 1920 x 1080 / 16:10 - max. 1920 x 1200 / 4: 3 - max. 1600 x 1200
KVM Cascade
1 x in / out proprietary cascade KVM port
Extended up to 256 servers by 8-level cascade
KVM Usage
Multilingual OSD: English, France, German, Spanish, Italian, Russian, Chinese, Japanese
Hotkey Combination: Scroll-lock, Cap-lock, Num-lock, Alt, Ctrl & Win
Security: Password enable & disable, up to 8 users profile for port access
PC Selection: Front button, OSD menu & hotkey
Front panel control
Power on/off switch
OSD (on screen display)
1 x bank number LED indicator
8 / 16 / 32 KVM ports LED indicators for Online / Active
10 x KVM channel membrane buttons
1 x bank membrane button
Compatibility
Hardware: HP / IBM / Dell PC, Server and Blade Server, SUN / Mac
OS Support: Windows / Linux / Unix / Mac OS
Cat6 KVM Dongles (Option)
Cat6 KVM dongles not included
Option for USB-C / DP-USB / HDMI-USB / DVI-USB / VGA-USB dongles
Power supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption: Max. 55W, Standby 34W
Option for 12V / 24V / 48V / 125V DC power input
Color
Black (RAL 9005)
Weight
28 lb / 12.5 kg

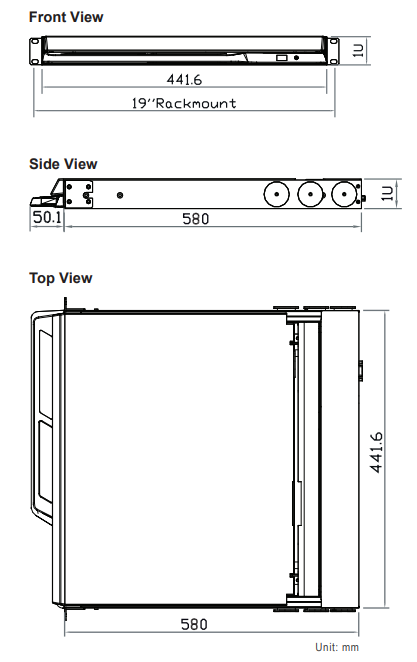

Dimension
17.4"(W) x 22.8"(D) x 1.73”(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA Compliant

MKD6219C:
1U 19"  rack LCD console, 1440 x 900 native resolution, 104-key keyboard with 2-button touchpad, 8-port Cat6 KVM switch, 1 x local console, 100/240VAC power input, 1U high 22.8" depth rackmount drawer, Black color.

Document
Description
Download Link
file iconMKD6219C-SP.pdf
Spec Sheet
file iconMKD6XXXC-Cat6 KVM UM.pdf
Integrated Cat6 KVM for LCD Console Drawers
