1U 17.3" Full HD Rack LCD Console Drawer with 8 Port Matrix KVM Switch

Specification

Material: Heavy-duty steel

LCD Panel: Size: 17.3 inch
Max. Resolution: 1920 x 1080
Brightness (cd/m²): 300
Contrast Ratio (typ.): 1000:1
Viewing Angle (H/V): 178° x 178°
Active Area (mm): 381.888H x 214.812V
Colors: 16.7 M, 8-bit
Backlight: LED
MTBF (hrs): 15,000

Video Input: VGA video input

Keyboard & pointing device: 104-key keyboard with 2-button touchpad (combo free)

KVM ports: 8 / 16 x Matrix KVM ports (1 x VGA, USB or PS/2 for keyboard & mouse)

KVM Usage: Use console access server independently & simultaneously
Advanced user profiles and configurable on screen display (OSD) & hotkey combination
Multilingual on screen display menu
Supports eight characters password protection

Front Panel Control: Power on/off switch
OSD (on screen display)
1 x bank number LED indicator
8 / 16 x KVM ports LED indicators for on-line / Active / Remote
10 x KVM channel membrane buttons
1 x bank membrane button

Local Console: 1 x VGA port (resolution up to 1600 x 1200)
2 x USB ports for keyboard & mouse

Remote Console With Receiver (Option): Connector: 1 x DB 15-pin VGA port
Input Device: 2 x USB ports for keyboard & mouse
Remote I/O: 1 x RJ-45 port via Cat6 cable up to 150 meters
Cable: 1 x 6ft VGA + USB KVM cable for receiver box
Receiver: 1 x receiver box for remote console

IP Remote Console (option): Connector: RJ45 Ethernet
User Management: 15-user login, 1 x active user
Network Protocol: DHCP / BOOTP / DNS
Security: SSL v3, RSA, AES, HTTP / HTTPs, CSR
Browser: Internet Explorer, Firefox, Safari, Netscape

Cascade port: 1 x in / out proprietary cascade KVM port
Extended up to 128 servers by 8-level cascade

Cables (Option): Option for 6ft / 10ft / 15ft VGA + USB KVM cables

Power supply: Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption: Max. 45W, Standby 34W

Color: Black (RAL 9005)

Weight: 25.5 lb / 11.6 kg

Dimension: 17.4"(W) x 22.8"(D) x 1.73”(H)

Environmental: Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5-90%, non-condensing
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration

Safety: CE, FCC

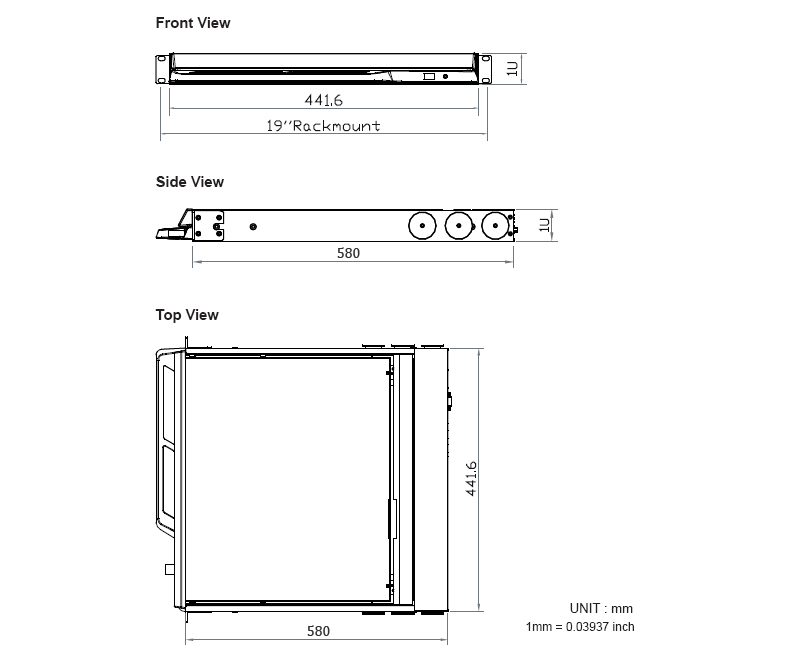

Dimensions

Order Info

MKD6117M:
17.3 inch 1920 x 1080 Full HD industrial LCD monitor, 104-key keyboard with touchpad, 8-port Matrix DB-15 KVM switch, 2 x user consoles (1 x local + 1 x remote with receiver), 1U high 22.8" depth rackmount enclosure, Black color. Option for 16-port Matrix DB-15 KVM switch, remote or IP user console, and VGA + USB KVM cables.

Downloads

Document

Description

Download Link

MKD6117M-SP.pdf

Spec Sheet

MKD6117M-UM.pdf

User Manual

Configure Now

MKD6117M

17.3 inch 1920 x 1080 Full HD industrial LCD monitor
104-key keyboard with 2-button touchpad
VGA video input
8-port Matrix DB-15 KVM switch, option for 16-port KVM switch
2 x user consoles (1 x local + 1 x remote with receiver)
Option for 6ft / 10ft / 15ft VGA + USB KVM cables
Auto-sensing 100 to 240VAC, 50 / 60Hz power input
1U high 22.8 inch depth rackmount drawer
