Rackmount keyboard drawer with a 104-key keyboard with a trackball pointing device and 17-key numeric keypad in a 1U high 15.7" short-depth rackmount drawer. The 1U keyboard drawer features an adjustable rear mounting bracket and front mounting holes that allow you to easily mount the drawer into a standard 19" rackmount cabinet or server rack. Option for SUN keyboard layout.
1U Rackmount Keyboard Drawer with Touchpad - RK1200T

RK1200T

RK1250B

  • 1U rackmount keyboard drawer
  • 104-key keyboard with trackball (USB port)
  • Option for SUN keyboard layout
  • 17-key numeric keypad
  • One man installation design
  • Molded front panel with two-point lock
  • Adjustable rear mounting L-bracket
  • 15.75" (400mm) short-depth rackmount design
$423.00
Availability: In stock
SKU
RK1250B

Rackmount keyboard drawer with a 104-key keyboard, 19mm trackball, and 17-key numeric keypad in a 1U high 15.7-inch short-depth rackmount drawer.

Construction
Sealed aluminum chassis
Metal with the positive pole processing
Keyboard
Keys: 104-key keyboard
Keyboard indicator: Num lock, Caps lock, Scroll lock
Keypad: 17-key numeric keypad
Interface: USB Interface
Key Force: 55 ± 5g
Traveling Distance: 3 ± 0.3mm
Switch Life: > 10 million life cycle time
Supporting layout: English (Standard)
Option for English (UK), Germany, France, Spain, Italy, Japan, Korea
Keyboard Layout (Option)
Option for SUN keyboard layout
Trackball
19mm trackball plug 3 house keys
Drawer
L-Bracket: 1 x pair of L-bracket with fastener screws included
Keyboard Mounting Distance: 16.1 ~ 25.2 inch (410 ~ 640 mm)
Cable
Attached 6ft USB cable x 2
Color
Black
Weight
18.9 lb / 8.6 kg

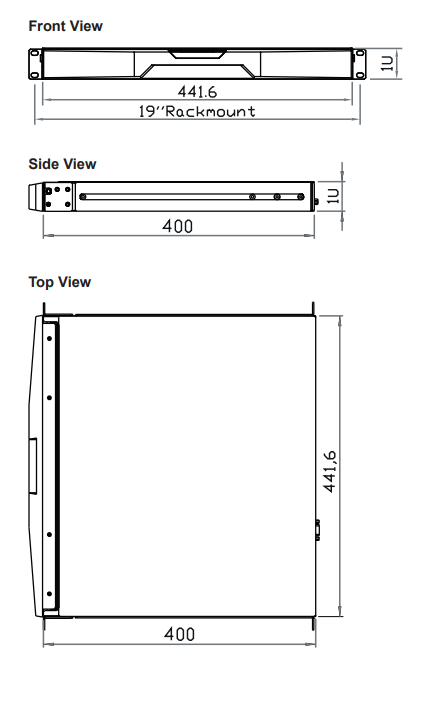

Dimension
17.4"(W) x 15.7"(D) x 1.73"(H)
Environmental
Operating Temperature: 0°C to 65°C
Storage Temperature: -20°C to 60°C
Humidity (Operating / Non-Operating): 20~90% / 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA Compliant

RK1250B:
1U rackmount keyboard drawer, 104-key keyboard, 17-key numeric keypad, trackball pointing device, 1U high 15.7" short-depth rackmount drawer, Black color.

Document
Description
Download Link
file iconRK1250B-SP.pdf
Spec Sheet
file iconRK12XX-UM.pdf
User Manual
file iconRK12XX-INST.pdf
Installation Guide
