Rackmount keyboard drawer with an 8-port Cat6 KVM switch, one local console, and a 104-key keyboard with touchpad in a 1U high 23.6-inch depth rackmount drawer. The keyboard drawer features front mounting holes that allow you to easily mount the drawer into any 19-inch rackmount cabinet or server rack. Option for 16 or 32 port Cat6 KVM switch, remote or IP user console, SUN keyboard layout, and Cat6 KVM dongles.
Rackmount Keyboard Drawer with 12-Port DVI-D KVM Switch

RK1201

1U Rackmount Keyboard Drawer with DB-15 KVM Switch - RK120D

RK120D

RK120C

  • 1U rackmount keyboard drawer
  • Integrated 8, 16, or 32-port Cat6 KVM switch
  • 104-key keyboard with touchpad - USB interface
  • 1 x local console, option for remote or IP console
  • Option for SUN Micro keyboard layout
  • Enhanced design with molded front panel & two-point lock
  • Adjustable rear mounting bracket & one man installation design
  • 1U 23.6" (600mm) depth rackmount drawer
$1,077.00
Availability: In stock
SKU
RK120C
1U rackmount keyboard drawer with an integrated 8-port Cat6 KVM switch, 104-key keyboard with 2-button touchpad, and a 1U high 23.6-inch depth rackmount drawer.
Construction
Sealed aluminum chassis
Metal with the positive pole processing
Keyboard
Keys: 104-key keyboard
Keyboard Indicator: Num lock, Caps lock, Scroll lock
Keypad: 17-key numeric keypad
Supporting Layout: English
Interface: USB
Keys Life Cycle: 20 million
Keyboard Layout (Option)
Option for SUN keyboard layout - USB interface
Pointing Device
2-button touchpad
KVM Port
Number of Ports: 8, 16 or 32
Connector: RJ-45
Connectivity: DVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 cable
KVM Switch
Use console access server independently & simultaneously
Advanced user profiles and configurable on-screen display (OSD) & hotkey combination
Multilingual on-screen display menu
Supports 8-character password protection
Local Console
Connector: 1 x DB-15 VGA
Input Device: 2 x USB ports for keyboard & mouse
Remote Console (Option)
Connector: 1 x DB 15-pin VGA
Input Device: 2 x USB type A for keyboard & mouse
Remote I/O: 1 x RJ-45 port via Cat6 cable up to 150 meters
Receiver Box: 1 x receiver box for remote console
Cable: 1 x 6ft VGA + PS/2 KVM cable for receiver box
Resolution Support:  4: 3 - max. 1600 x 1200 / 16: 9 - max. 1920 x 1080 / 16:10 - max. 1920 x 1200
IP Remote Console (Option)
Connector: RJ45 Ethernet
User Management: 15-user login, 1 x active user
Network Protocol: DHCP / BOOTP / DNS
Security: TLS 1.3, AES, LDAP, Active Directory (AD), HTTP(s)
Browser: Chrome, Firefox, Edge, etc.
Resolution Support: 16: 9 - max. 1920 x 1080 / 16:10 - max. 1920 x 1200 / 4: 3 - max. 1600 x 1200
Cascade Port
1 x in / out proprietary cascade KVM port
Extended up to 256 servers by 8-level cascade
Compatibility
Hardware: HP / IBM / Dell PC, Server and Blade Server, SUN / Mac
OS Support: Windows / Linux / Unix / Mac OS
KVM Dongles (Option)
Cat6 KVM dongles not included
Option for VGA-USB / DVI-USB / DP-USB / HDMI-USB / USB Type C Cat6 dongles
Mounting Distance
560 ~ 790 mm (22 ~ 31.1 inch)
Weight
24 lb / 10.9 kg

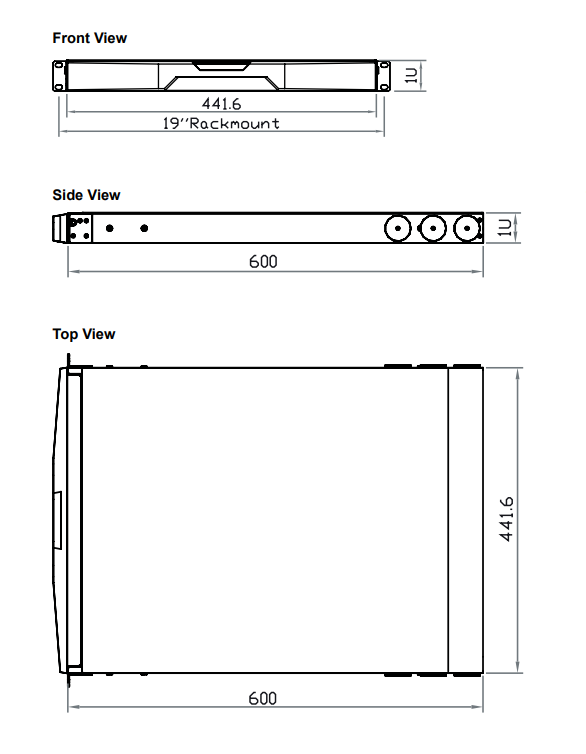

Dimension
17.4"(W) x 23.6"(D) x 1.73"(H)
Environmental
Operating Temperature: -20°C to 55°C
Storage Temperature: -20°C to 60°C
Operating Humidity: 10~90%, non-condensing
Storage Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA Complaint

RK120C:
Rackmount keyboard drawer, 104-key keyboard with touchpad, 8-port Cat6 KVM switch, 1 x local user console, 1U high 23.6-inch depth rackmount drawer, Black color. Option for 16 or 32 port Cat6 KVM switch, remote or IP user console, SUN keyboard layout, and Cat6 KVM dongles.

Document
Description
Download Link
file iconRK120C-SP.pdf
Spec Sheet
file iconRK120-UM.pdf
User Manual
