Rack KVM console with 17-inch LCD & 8-port KVM switch.

Specification

Material: Heavy-duty steel

LCD Panel: Size: 17 inch
Resolution: 1152 x 900 (Direct) / 1280 x 1024 (Native)
Brightness (cd/m²): 250
Contrast Ratio (typ.): 1000:1
Response Time (ms): 5
Display Area (mm): 337.92H x 270.33V
Viewing Angle (H/V): 170° x 160°
Backlight: LED
Colors: 16.7M
MTBF (hrs): 30,000

Keyboard & Pointing Device: 104-key keyboard with full numerical pad and SUN function - USB interface
Pointing Device: 3-button touchpad (standard)
Option for keyboard with trackball

Video Input: Analog RGB, 0.7Vp-p

Plug & Play DDC: EDID 1.3

KVM Switch: Number of Ports: 8
Connector: Proprietary DB-15 KVM connector
Cascades Level: Up to 128 servers by 8-level cascade
Hardware Compatibility: HP / IBM / Dell PC, Server and Blade Server, SUN / Mac
O/S Support: Windows / Linux / Unix / Mac OS

KVM Management: Multilingual OSD: English, France, German, Spanish, Italian, Russian, Simplified Chinese, Japanese
Hotkey Combination: Scroll-lock, Cap-lock, Num-lock, Alt, Ctrl & Win
Security: Password enable & disable, up to 8 users profile for port access
PC Selection: Front button, OSD menu & hotkey

KVM switch Connector: 8 x D-Sub 15 pin (female) for VGA / Keyboard /mouse
(Combo Interface, USB or PS/2)
1 x D-sub 15 pin for cascades port

Cable: 8 x 6' 4-in-1 KVM cable for VGA / Keyboard / Mouse
Option for 10' or 15' KVM cable
KVM Side: 1 x D-sub 15 pin proprietary KVM connector
Server Side: 1 x D-sub 15 pin VGA and 1 x USB or 2 x PS/2 connectors

Drawer Design: High load-rating slide rail with angle bracket
Extension up to 31.1” depth
Option for extension bracket up to 36" depth

Power supply: Input: Auto-sensing 100 to 240VAC, 50/60Hz
Power Consumption: Max. 55W, Standby 34W
Option for 12V / 24V / 48V / 125V DC power input

Color: Black

Weight: 41.8 lb / 19 kg

Dimension: 17.4"(W) x 22.8"(D) x 1.73"(H)

Environmental: Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Humidity: 5~90%, non-condensing
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration

Safety: FCC, CE

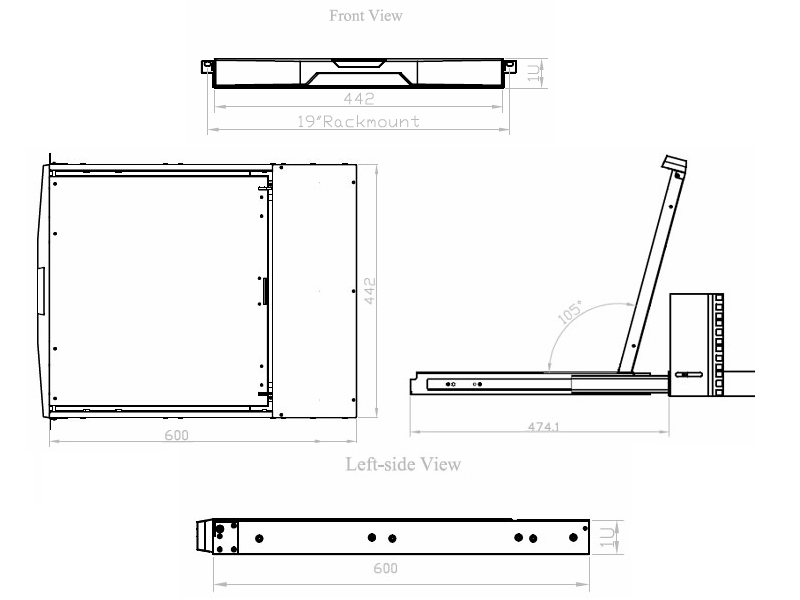

Dimensions

Order Info

KDS 6178:
17 inch 1280 x 1024 and 1152 x 900 LCD monitor, 104-key keyboard with Sun function keys, 3-buttons touchpad, 8 ports KVM switch, 8 x 6' KVM cables, 1U high and 22.84 inch rackmount drawer, Black color.
