The KDR-HD17 is a 2U multi-display console drawer featuring 17.3" LCD monitors supporting 1920 x 1080 Full HD native resolution, VGA + DVI-D video input, a 104-key keyboard with touchpad, and 100/240VAC power input in a 2U high rack enclosure.
KDR-AV19 2U 19

KDR-AV19

KDR-HD17

  • 2U multi-display rackmount display drawer
  • Dual or triple 17.3" Full HD industrial LCD panels
  • Supports 1920 x 1080 native resolution
  • 104-key keyboard with touchpad
  • VGA + DVI-D video input
  • Option for HDMI or 3G-SDI input (per panel)
  • Built-in solid bearing slide rails & dual stereo speaker
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
  • Option for 12V / 24V / 48V DC power input
In stock
SKU
KDR-HD17
17.3" 1920 x 1080 FHD multi-display rackmount console drawer with dual or triple displays, a 104-key keyboard w/ touchpad, VGA + DVI-D video input, and a 2U high rack enclosure.
Material
Heavy-duty steel
LCD Panel
Size: 17.3 inch
Resolution: 1920 x 1080
Brightness (cd/m²): 300
Contrast Ratio (typ.): 1000:1
Display Area (mm): 381.888H x 214.812V
Viewing Angle (H/V): 170° x 170°
Response Time (ms): 25
Dot Pitch (mm): 0.1989
Colors: 16.7M, 8-bit
Surface Treatment: Anti-Glare, Hard-coasting
Surface Hardness: 3H
Backlight Type: LED
MTBF (hrs): 15,000
LCD Mounting Position
KDR-HD17-2L: Dual display (left hinged mount)
KDR-HD17-2R: Dual display (right hinged mount)
KDR-HD17-3: Triple display
KB & MS
104-key keyboard with touchpad pointing device
Option for trackball pointing device
Video Input
Standard: VGA + DVI-D video input (per panel)
Option: HDMI 2.0 or 3G-SDI input (per panel)
Front Panel Control
Power on/off switch
OSD (on-screen display)
Drawer Design
Built-in solid bearing slide rails
Mounting Distance: 21.7~31.1 inch (550~790 mm)
Power Supply
Input: Auto-sensing 100 to 240VAC, 50/60Hz
Consumption Per Panel: Max. 14W, Saving Mode 2W
Option for 12V / 24V / 48V DC power input
Cables
KDR-HD17-3: 6ft DVI-D cable x 3 + USB cable x 2
KDR-HD17-2L/2R: 6ft DVI-D cable x 2 + USB Cable x 2
Color
Black
Weight
Dual Display: 46.2 lb / 21 kg
Triple Display: 56.5 lb / 25.7 kg

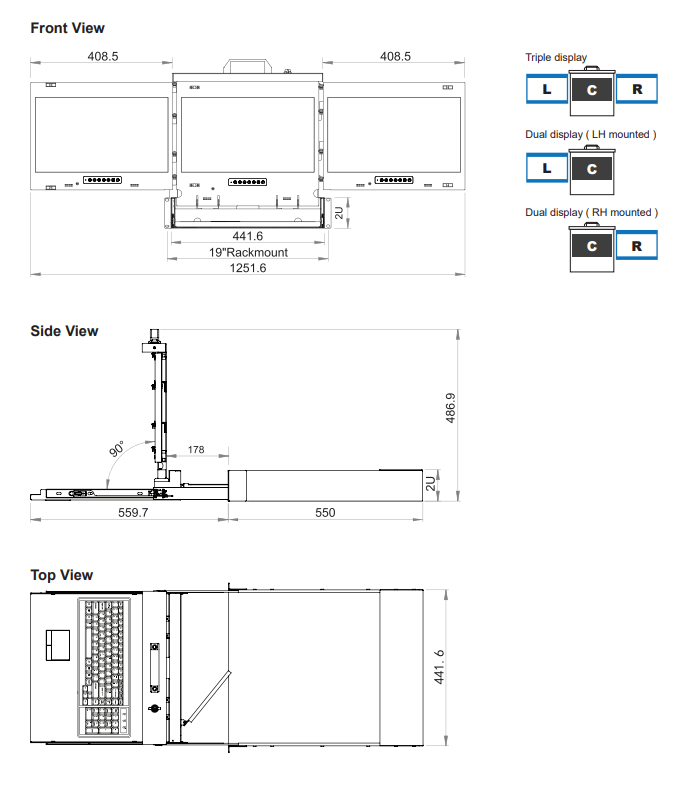

Dimension
Product: 17.4"(W) x 21.7"(D) x 3.5"(H)
Packing: 22.8"(W) x 26.9"(D) x 7.8"(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA

KDR-HD17-2L:
Dual 17.3 inch 1920 x 1080 industrial LCD panels, left & center mounted display, VGA + DVI-D video input, 104-key keyboard with touchpad, 2U high 21.7 inch depth rackmount drawer, Black color.

KDR-HD17-2R:
Dual 17.3 inch 1920 x 1080 industrial LCD panels, center & right mounted display, DP 1.2 video input, 104-key keyboard with touchpad, 2U high 21.7 inch depth rackmount drawer, Black color.

KDR-HD17-3:
Triple 17.3 inch 1920 x 1080 industrial LCD panels, VGA + DVI-D video input, 104-key keyboard with touchpad, 100/240VAC power input, 2U high 21.7  inch depth rackmount drawer, Black color.

Document
Description
Download Link
file iconKDR-HD17-SP.pdf
Spec Sheet (Coming Soon)
