Rack console comes with a 17.3 inch 3840 x 2160 4K LCD panel, 8-port HDMI KVM Switch, 104-key keyboard with touchpad, dual slide rails, and a 1U high 25.6 inch depth rackmount drawer. Option for HDMI / DP KVM cable, keyboard with trackball, and DC power input.
8 Port HDMI KVM Switch - KD84174

KD84174

KD85174

  • 1U 25.6" depth rackmount drawer
  • 17.3" 3840 x 2160 4K LCD panel
  • 8 port HDMI KVM switch
  • HDMI 2.0 + USB ports
  • 104-key keyboard with touchpad
  • Dual slide rail design
  • Option for 6ft HDMI or DP KVM cable
  • 100/240VAC power adapter
Availability: In stock
SKU
KD85174

17.3" 3840 x 2160 4K LCD console with an 8 port HDMI KVM switch, dual slide rails, and keyboard with touchpad in a 1U high 25.6" depth rackmount drawer.

Material
Heavy-duty steel
LCD Panel
Size: 17.3 inch
Resolution: 3480 x 2160
Brightness: 400
Contrast Ratio: 1000:1
Display Area (mm): 382.12H x 214.94V
Viewing Angle (H/V): 178° x 178°
Response Time (ms): 16
Dot Pitch (mm): 0.0995
Backlight: LED
Colors: 16.7M, 8-bit
Surface Treatment: Anti-Glare
Surface Hardness: 3H
MTBF: 20,000 hours
Video Input
HDMI 2.0
Drawer Design
Dual slide rails for monitor and keyboard drawer
Monitor and keyboard slide out independently
Keyboard & pointing device
104-key keyboard integrated with 3-button touchpad
Option for trackball
KVM Switch
HDMI 2.0 KVM switch
Front button & keyboard hotkey
KVM Port
8 x HDMI 2.0 + USB-B (Video + KB / MS)
16 : 9 – 3840 x 2160 @ 60Hz
16 : 10 – 1920 x 1200 @ 60Hz
4 : 3 – 1600 x [email protected] 60Hz
KVM Cable (Option)
6ft HDMI KVM cable
6ft DP KVM cable
Front Panel Control
Power on/off switch
OSD (on-screen display)
Power Supply
100/240VAC power input, 50/60 Hz
Consumption: Max. 38W
Option for DC power input
Color
Black
Weight
28.6 lb (Net) / 41.8 lb (Gross)
Dimension

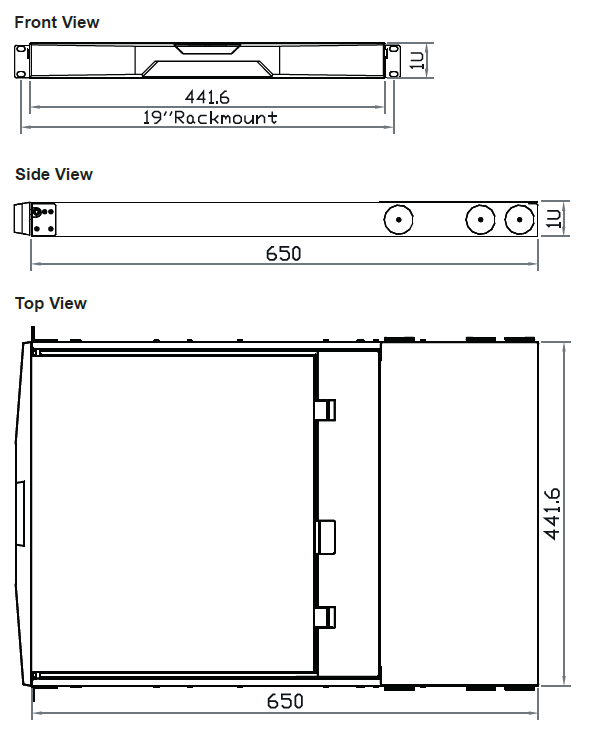

17.4"(W) x 25.6"(D) x 1.73"(H)
Environmental
Operation Temperature: 0° to 55°C
Storage Temperature: -20° to 60°C
Shock: 10G acceleration (11ms duration)
Vibration: 10 ~ 300Hz 0.5G RMS random vibration
Relative Humidity: 5-90%, non-condensing
Altitude: 16,0000ft, operating; 40,0000ft, non-operating
Safety
CE, FCC, RoHS2

KD84174:
17.3 inch 3840 x 2160 LCD, 4K display, 8 port KVM switch, HDMI 2.0 + USB ports, keyboard with touchpad, 1U high & 25.6" depth rackmount terminal, Black color. Option for HDMI or DP KVM cable, keyboard with trackball, and DC power input.

Document
Description
Download Link
file iconKD85174-SP.pdf
Spec Sheet (Coming Soon)
