KD81916

LCD Panel :
  The 19-inch (1280 x 1024) LCD panel is an active type digital to digital which connects to the onboard conversion board. The LCD monitor comes with a standard 15-pin VGA connector on the back of the rackmount drawer for your pc system connection. The OSD function lets you adjust the LCD monitor for the best view. All the OSD buttons are located on the front of the LCD monitor for easy access. The monitor can be tilted to a 90 degree horizontal angle. The auto-shutoff function engages whenever the monitor is returned to its resting position This allows you to save LCD monitor life.

Keyboard & Pointing Device :
  The keyboard and touch-pad (Optional for track ball) are mounted on the front of the rackmount drawer underneath the LCD monitor. Both of them come with a standard PS/2 or USB type connector on the back of the rackmount drawer for you pc system connection. The slim-type (notebook size) keyboard comes with function keys and key-pad function.

Rack mount Drawer:
  The low profile 1U drawer saves rack space and integrate an LCD monitor, keyboard and pointing device into a complete unit. The ball-bearing slide rail was mounted on the each side of the drawer that you can pull-out the drawer from the 19" rack cabinet. The thumb-locker is installed on the front panel to lock the drawer inside the rack when the monitor keyboard drawer is not in use.

KVM Switch (VGA, Keyboard, touch-pad) :
  We provid the KVM switch function for your unique hardware applications, The 8 x ports KVM switch (PS/2 type standard, option for Combo free, additional RJ-45 port for remote or IP console port) integrated into the keyboard drawer and provides the 8 KVM proprietary ports on the back of the drawer. You can select the PC stations through the OSD (on screen disply) menu or front hot-key buttons. It supports hot-plug function and come standard with 6' high-density KVM cable for each individual KVM port. The KVM switch is compatibility with SUN and PC system.

Cable for Monitor, keyboard, and pointing device :
  The KVM switch come with 8 x high density KVM cables, 1-15pin proprietary port for KVM switch, 3 connectors (1-VGA port, 2 x PS/2 ports, standard, option for 1 x VGA with 1 x USB port) for the stations. Option for 10' and 15' KVM cable.

Power Supply :
It comes with a 110/220VAC auto switch external power adapter.

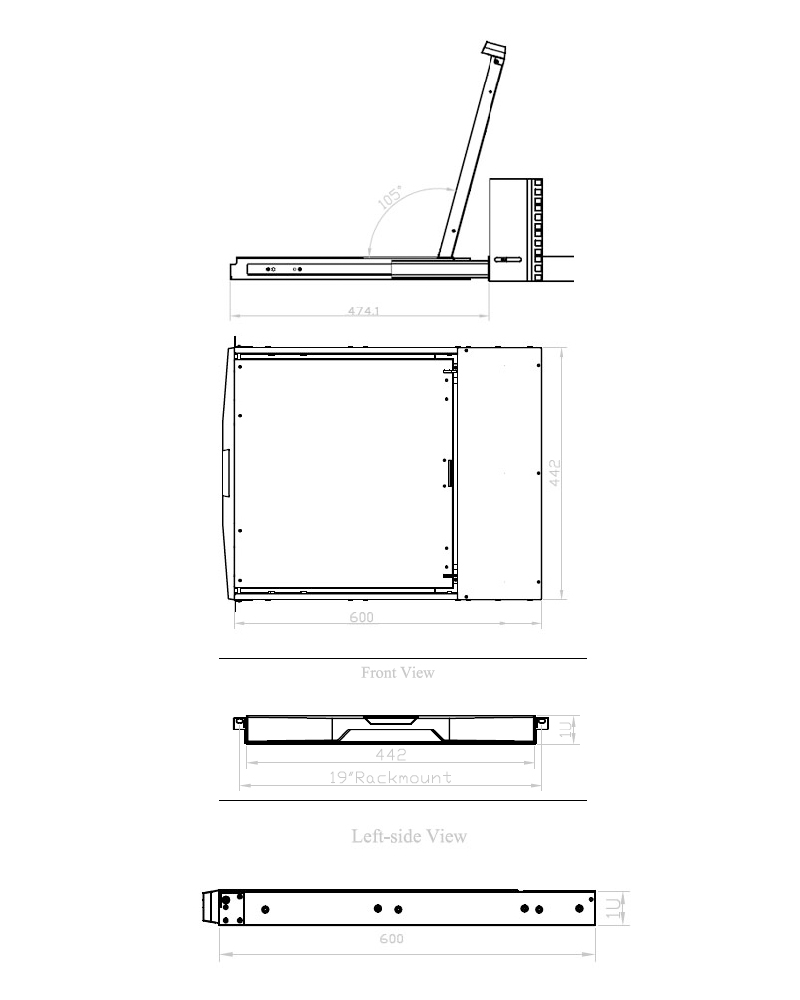

Mounting:
Monitor keyboard drawer is ready to mount into a standard 19" rack cabinet, the rear mounting bracket can be extended up to 36" deep for the rack server cabinet.
