Rack LCD console comes with a 20 inch 1600 x 1200 UXGA LCD panel, 106-key keyboard with touchpad, 2 x thumb-lock screws for system security, and a 1U high 26.1 inch depth rackmount drawer.

Skip to the beginning of the images gallery

KD9176

RK1250B

KD7200

1U high 26.1" depth rackmount drawer
20" 1600 x 1200 industrial LCD panel
LCD monitor protected by tempered glass
Front OSD (On Screen Display) function
Standard 15-pin D-sub VGA connector
Industrial-grade 106-key keyboard with touchpad
Thumb-lock screws for system security
External 110/220VAC power supply

Availability: In stock

SKU

KD7200

20" 1600 x 1200 rack LCD console with a 106-key keyboard with touchpad in a 1U high 26.1 inch depth rackmount drawer with a pullout slide rail.

Specification

Material: Heavy-duty steel

LCD Panel: Size: 20 inch
Max. Resolution: 1600 x 1200, UXGA
Brightness: 300
Contrast Ratio: 1000:1
Display Area (mm): 386.4(H) x 289.8(V)
Pixel Pitch (mm): 0.255(H) x 0.255(W)
Response Time: Rising Time 15 ms, Falling Time 7 ms
Viewing Angle: 170°(L/R),170°(U/D)
Colors: 16M colors
MTBF: 20,000 hours
Backlight: 6 x CCFTs
LCD Panel protected by tempered glass

Keyboard & Touchpad: 106-key keyboard and 2-button touchpad

Video Input: Video Synchronization: 45KHz - 80KHz
Input Signal: Analog RGB 0.7Vp-p
Option for DVI input

On Screen Control: OSD Control Brightness, Contrast, Phase & Color, H & V position,
Auto-tune & Recall

Front Control: 5 x OSD menu button

Rear Connectors: 1 x D-Sub 15 pin port for VGA
2 x PS/2 for Keyboard and Touchpad

Cables: 1 x 6’ all-in-one cable (1-VGA, 2-PS/2)
Option for 10’ / 15’ cable

Security Lock: 2 x thumb-lock screws for system security

Drawer Design: 1U low profile drawer
Slide rail can be extension up to 36" depth

Remote Power Adapter: External 110/220VAC 50W power adapter

Color: Black

Weight: 34 lb / 15.4 kg

Dimension: 19"(W) x 26.1”(D) x 1.75"(H)

Environmental: Operating Temperature: 0°~ 50°C (32°~ 122°F)
Storage Temperature: -20°~ 60°C (-4°~ 140°F)
Humidity: 8% to 95% RH

Safety: CE and FCC certified

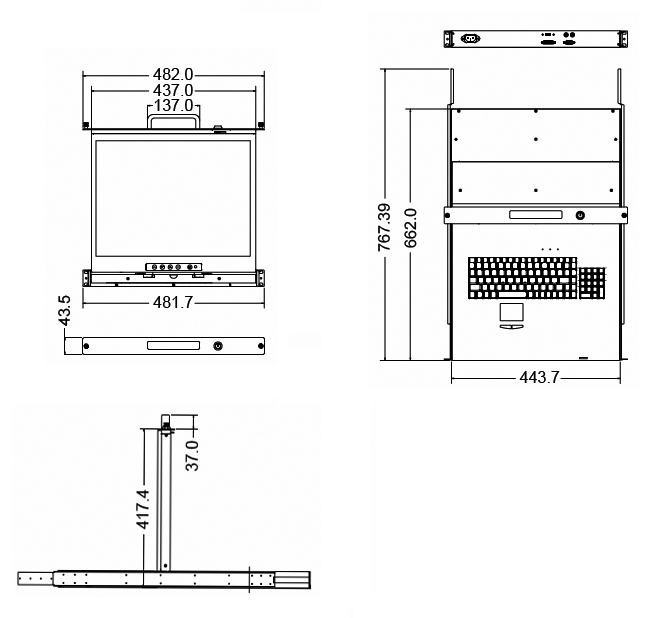

Dimensions

Order Info

KD7200:
Monitor keyboard drawer, 20 inch 1600 x 1200 LCD panel, standard 15-pin D-sub VGA connector, keyboard with touchpad, 1U high & 26.1" depth rackmount drawer, Black color. Option for DVI input.

Downloads

Document

Description

Download Link

KD_7200-data.pdf

Data Sheet

KD_7200-dim.pdf

Dimension

KD_7200-inst.pdf

Installation Guide

Configure Now

PRODUCT DESCRIPTION
The 20-inch (1600 x 1200) industrial LCD panel is a TFT active type digital to digital which connects to the onboard conversion board. The LCD monitor comes with a standard 15-pin VGA connector on the back of the rackmount drawer for your pc system connection. The OSD function lets you adjust the LCD monitor for the best view. All the OSD buttons are located on the front of the LCD monitor for easy access. The monitor can be tilted to a 90-degree horizontal angle. The auto-shutoff function engages whenever it is returned to its resting position, allowing you to save the LCD monitor's life. The keyboard and touchpad are located in the front of the rackmount drawer underneath the LCD monitor. Both of them come with a standard PS/2 or USB type connector on the back of the rackmount drawer for your pc system connection. The low profile 1U drawer saves on rack space and integrates an LCD monitor, keyboard, and pointing device to a complete unit. The ball-bearing slide rail is mounted on each side of the drawer so that you can pull out the drawer from a 19" rack cabinet. The thumb-locker is installed on the front panel to lock the drawer inside the rack when the monitor keyboard drawer is not in use. A 1 x 6' proprietary cable (1 x 15 pin VGA port for the monitor, 2 x USB or PS/2 port for keyboard and touchpad) is provided. Option for a 10' or 15' cable is available. KD7200 comes with a 110/220VAC auto-switch external power adapter. Option for 12/24/48VDC power adapter is available. The monitor keyboard drawer is ready to mount into a standard 19" rack cabinet and the rear mounting bracket can be extended up to 36" deep for the rack server cabinet.
